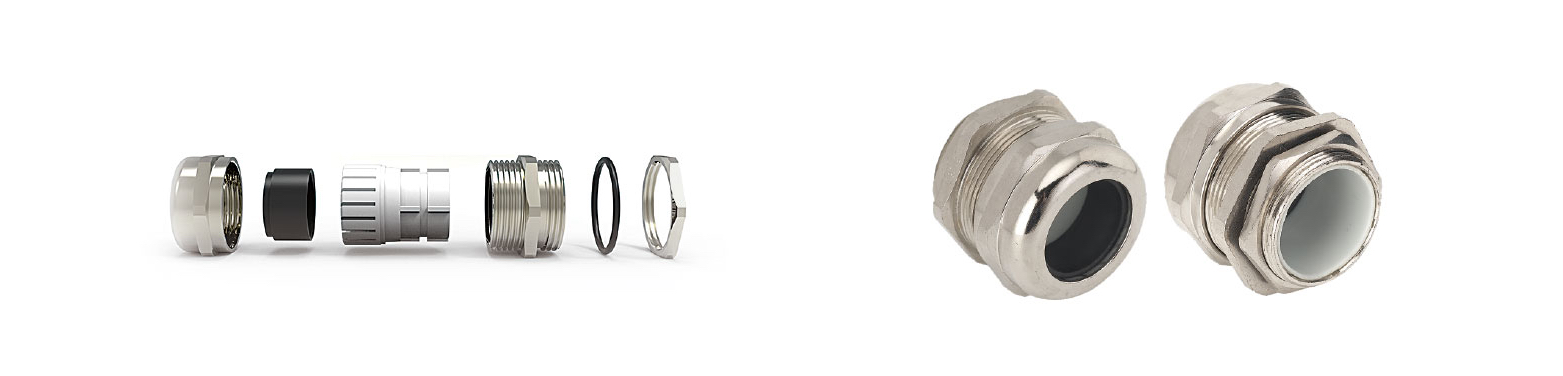

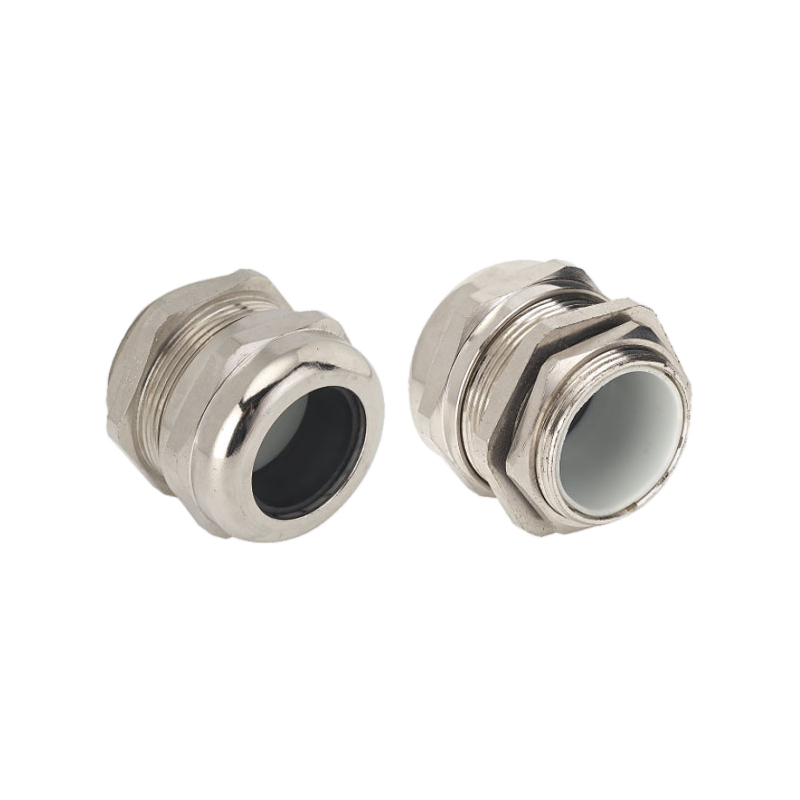

Straight-Through Brass Cable Gland, IP68 Waterproof Seal

Our straight-through brass cable gland offers a standard, direct entry point with an IP68 waterproof seal. TUV certified and corrosion-resistant, it’s the reliable choice for direct cable connections.

Technical Parameter

Product Name: Straight-Through Brass Cable Gland

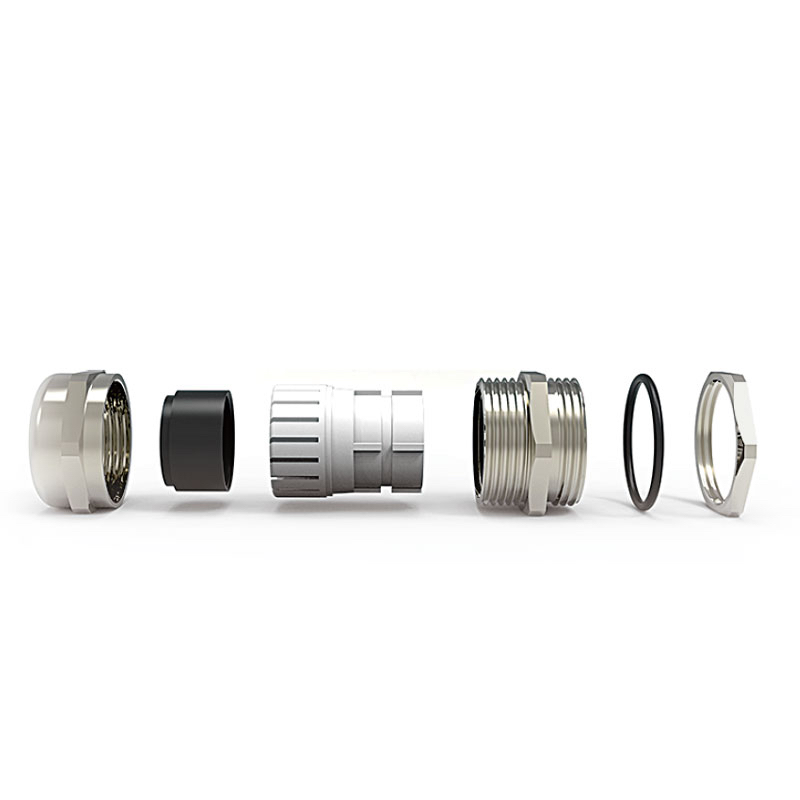

Body Material: Nickel-Plated Brass
Claw: Polyamide (PA)
Seal & O-Ring: NBR
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Length: Standard (for thin boards), Long (for thick boards)
Certifications: TUV, CE, RoHS, IP68, ISO9001

Key Features

Straight-Through Design: A standard, non-angled profile for direct cable entry into enclosures, panels, and equipment, ensuring a clean and straightforward installation.
IP68-10 Bar Waterproof: Provides the highest level of certified protection against dust and high-pressure water, ensuring connection integrity in the most demanding environments.
Robust Strain Relief: A specially designed clamping claw and seal provide a powerful grip on the cable, offering excellent resistance to pulling forces.
Durable & Corrosion-Resistant: Constructed from high-quality nickel-plated brass, it offers superior resistance to salt, weak acids, alcohol, oil, and common solvents.
TUV & ISO Certified Quality: Manufactured under strict quality controls and certified by TUV and ISO9001, guaranteeing reliability and performance.
Thread Options Available: Comes in standard thread length for thin boards and is available with longer threads for thick panel mounting.

Metric thread type
Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
M12-TR	M 12X1.5	6.5-3	12	12-12.2	7	19	14
M14-TR	MMX 1.5	8-4	14	14-14.2	7	19	17
M16-TR	M16X1.5	8-4	16	16-16.2	8	20	18
M18-TR	M18X1.5	10-5	18	18-18.2	8	21	20
M20-TR	M20X1.5	12-6	20	20-20.2	8	22	22
M22-TR	M22X1.5	14-10	22	22-22.2	8	23	24
M24-TR	M24X1.5	14-10	24	24-24.2	9	25	24/27
M25A-TR	M25X1.5	14-10	25	25-25.2	9	25	24/27
M25B-TR	M25X1.5	16-8	25	25-25.2	9	27	27
M25C-TR	M25X1.5	18-13	25	25-25.2	9	27	30/27
M27A-TR	M27X1.5	18-13	27	27-27.2	9	27	30
M27B-TR	M27X2	18-13	27	27-27.2	9	27	30
M28A-TR	M28X1.5	18-13	28	28-28.2	9	27	30
M28B-TR	M28X2	18-13	28	28-28.2	9	27	30
M30A-TR	M30X1.5	18-13	30	30-30.2	9	29	30/32
M30B-TR	M30X2	18-13	30	30-30.2	9	29	30/32
M32A-TR	M32X1.5	22-15	32	32-32.2	10	29	35
M32B-TR	M32X1.5	20-16	32	32-32.2	10	29	35
M32C-TR	M32X2	22-15	32	32-32.2	10	29	35
M36A-TR	M36X1.5	25-18	36	36-36.2	10	31	40
M36B-TR	M36X2	25-18	36	36-36.2	10	31	40
M37A-TR	M37X1.5	25-18	37	37-37.2	10	31	40
M37B-TR	M37X2	25-18	37	37-37.2	10	31	40
M40A-TR	M40X1.5	25-18	40	40-40.2	11	31	40/45
M40B-TR	M40X2	25-18	40	40-40.2	11	31	40/45
M40C-TR	M40X1.5	30-22	40	40-40.2	11	35	45
M40D-TR	M40X2	30-22	40	40-40.2	11	35	45
M42A-TR	M42X1.5	30-22	42	42-42.2	11	35	45
M42B-TR	M42X2	30-22	42	42-42.2	11	35	45
M60A-TR	M60X1.5	44-37	60	60-60.2	13	38	64
M60B-TR	M60X2	44-37	60	60-60.2	13	38	64
M63A-TR	M63X1.5	44-37	63	63-63.2	13	38	64/68
M63B-TR	M63X2	44-37	63	63-63.2	13	38	64/68
M64A-TR	M64X1.5	44-37	64	64-64.2	13	38	64/68
M64B-TR	M64X2	44-37	64	64-64.2	13	38	64/68
M72-TR	M72X2	52-42	72	72-72.2	15	42	78
M75-TR	M75X2	52-42	75	75-75.2	15	42	78
M80-TR	M80X2	62-50	80	80-80.2	15	45	86/88
M88-TR	M88X2	70-60	88	88-88.2	15	45	98
M100-TR	M100X2	80-70	100	100-100.2	15	45	110

PG thread type
Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)
PG7-TR	PG7	6.5-3	12.5	12.5-12.7	7	14
PG9-TR	PG9	8-4	15.2	15.2-15.4	8	17
PG11-TR	PG11	10-5	18.6	18.6-18.8	8	20/21
PG13.5-TR	PG13.5	12-6	20.4	20.4-20.6	8	22
PG16-TR	PG16	14-10	22.5	22.5-22.7	9	24
PG21-TR	PG21	18-13	28.3	28.3-28.5	9	30
PG25-TR	PG25	22-15	32	32-32.2	10	35
PG29-TR	PG29	25-18	37	37-37.2	11	40
PG36-TR	PG36	33-25	47	47-47.2	12	50
PG42-TR	PG42	38-32	54	54-54.2	13	57
PG48-TR	PG48	44-37	59.3	59.3-59.5	14	64
PG63-TR	PG63	52-42	72	72-72.2	15	78
