One-Piece Nylon Cable Gland for Fast Installation, IP68

One-Piece Nylon Cable Gland for Fast Installation, IP68

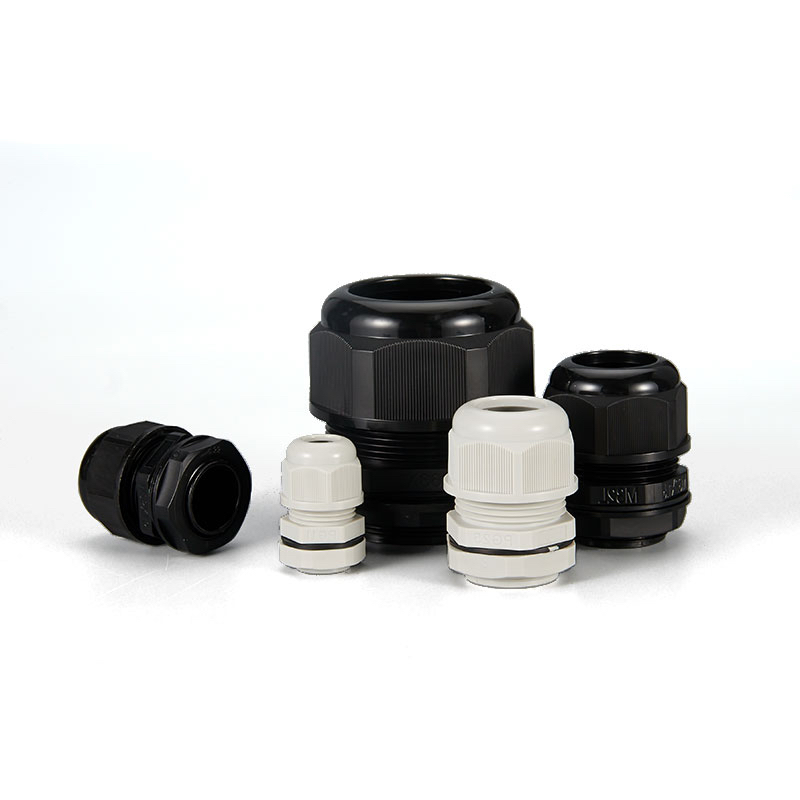

Our one-piece nylon cable gland is engineered for fast, error-free installation. This IP68 waterproof connector with a unique click-lock nut provides a secure, reliable seal without loose parts.

Technical Parameter

Structure: One-Piece / United Structure
Body Material: UL Approved Nylon PA66 (UL94V-2, UL94V-0 available)
Seal & O-Ring: EPDM Rubber (Custom options available)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G(PF/BSP), NPT
Certifications: CE, RoHS, TUV, ISO9001

Key Features

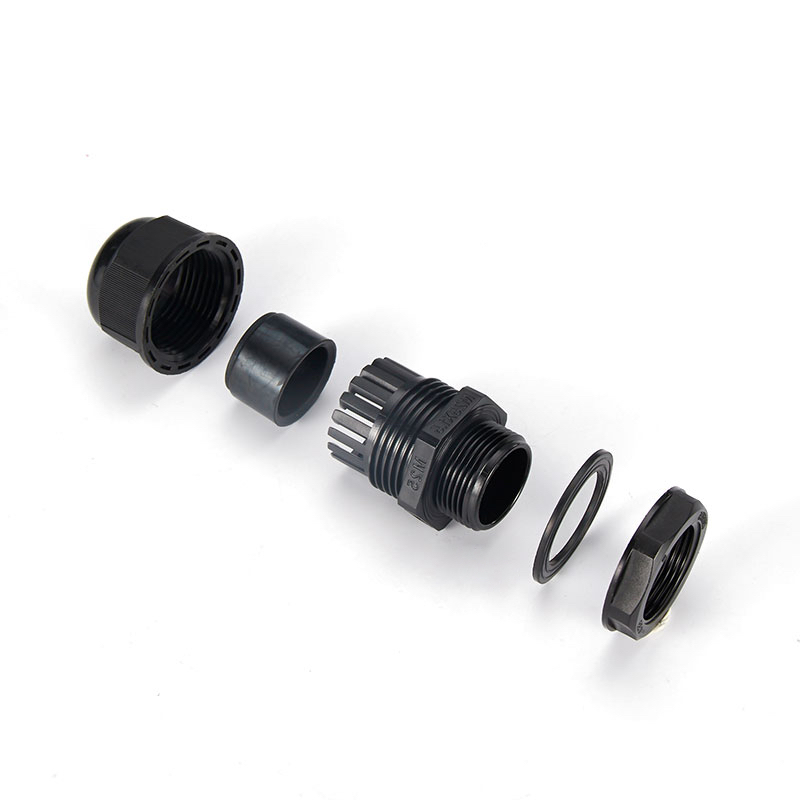

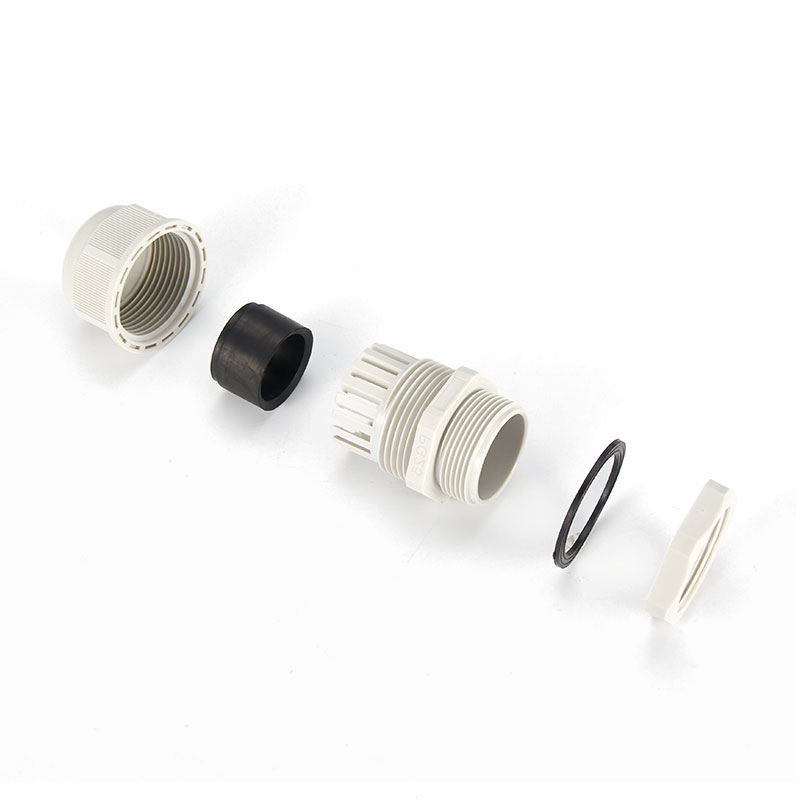

One-Piece Design for Fast Installation: The united body, claw, and seal structure requires no assembly, preventing lost parts and allowing for significantly faster, error-proof installation.
IP68-10 Bar Waterproof: Provides the highest level of certified protection against dust and high-pressure water, ensuring connection integrity in harsh environments.
Superior Strain Relief: The special design of the clamping claws and seal provides exceptional gripping force and resistance to pulling.
UL Certified Material: Constructed from UL-approved Nylon PA66 (flammability rating UL94V-2), ensuring high safety and quality standards.
Audible “Click” Lock Nut: The sealing nut makes a “click” sound when tightened, providing tactile and audible feedback for a secure, reliable lock that won’t loosen.
Full Range of Threads: Available in Metric, PG, G(PF), and NPT threads to meet diverse international equipment requirements.

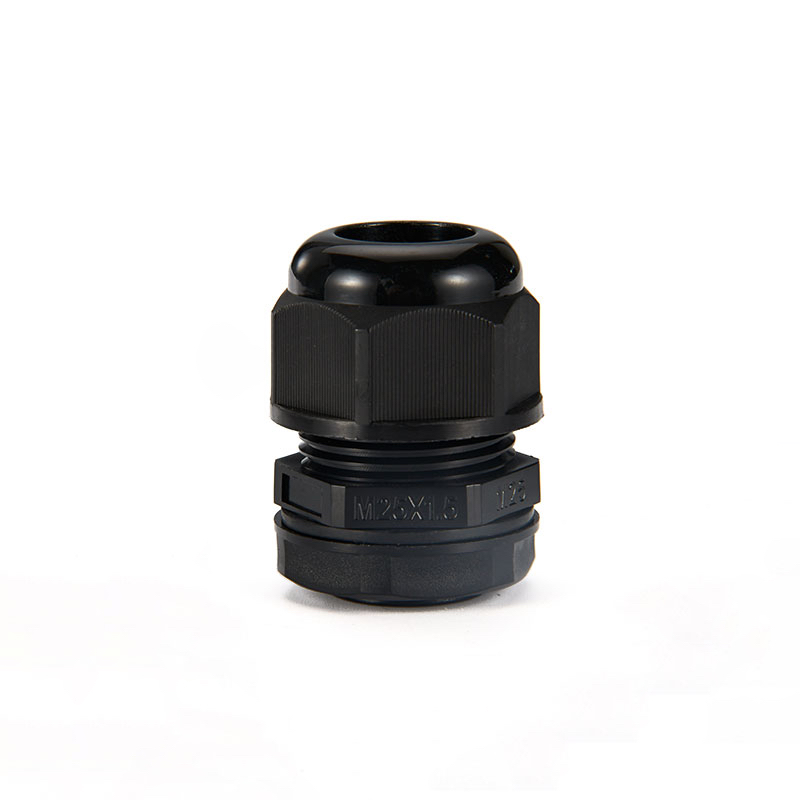

Metric thread M type
Code	Thread	Cable Range Φ (mm)	Thread O.D. C1(mm)	Thread Length C2(mm)	Spanner Size A&F(mm)
NLM8-UN	M8X1.25	2-4.8	8	7.5	13/12
NLM10-UN	M10X1.5	3-6	10	8	15/13
NLM12A-UN	M12X1.5	3-6.5	12	8.5	18/15
NLM12B-UN		3-6.5	12	15	18/15
NLM12C-UN		3-5.5	12	8.5	18/19
NLM12D-UN		4-8	12	8.5	18/19
NLM12E-UN		3-5.5	12	15	18/19
NLM12F-UN		4-8	12	15	18/19
NLM16A-UN	M16X1.5	4-8	16	10	22/19
NLM16B-UN		4-8	16	15	22/19
NLM16C-UN		5-10	16	10	22/22
NLM16D-UN		5-10	16	15	22/22
NLM18A-UN	M18X1.5	5-10	18	10	24/22
NLM18B-UN	M18X1.5	5-10	18	15	24/22
NLM20A-UN	M20X1.5	6-12.5	20	10	27/24
NLM20B-UN		8.5-14	20	11	27/27
NLM20C-UN		8.5-14	20	15	27/27
NLM22-UN	M22X1.5	8.5-14	22	11	27/27
NLM24-UN	M24X1.5	8.5-14	24	11	27/27
NLM25A-UN	M25X1.5	8.5-14	25	11.6	33/27
NLM25B-UN		12.5-18	25	11.6	33/33
NLM25C-UN		12.5-18	25	15	33/33
NLM32A-UN	M32X1.5	14-22	32	15	41/42
NLM32B-UN	M32X1.5	17-25	32	15	41/42
NLM36A-UN	M36X1.5	14-22	36	12	45/42
NLM36B-UN	M36X1.5	17-25	36	12	45/42
NLM40-UN	M40X1.5	23-32	40	15	50/52
NLM50-UN	M50X1.5	30-41	50	15	62/62
NLM63-UN	M63X1.5	35-46	63	18	75/65

American thread NPT type
Code	Thread	Cable Range Φ (mm)	Thread O.D. Cl(mm)	Thread Length C2(mm)	Spanner Size A&F(mm)
NLNPT1/4-UN	NPT1/4”	4-8	13.157	8.5	19
NLNPT3/8-UN	NPT3/8″	5-10	16.662	10	22
NLNPT1/2-UN	NPT1/2”	6-12.5	20.955	10	24
NLNPT3/4-UN	NPT3/4″	12.5-18	26.441	15	33
NLNPT1-UN	NPT1H	17-25	33.249	15	41
NLNPT11/4A-UN	NPT 11/4”	17-25.5	41.91	15	52
NLNPT11/4B-UN	NPT 11/4”	24-32	41.91	15	52

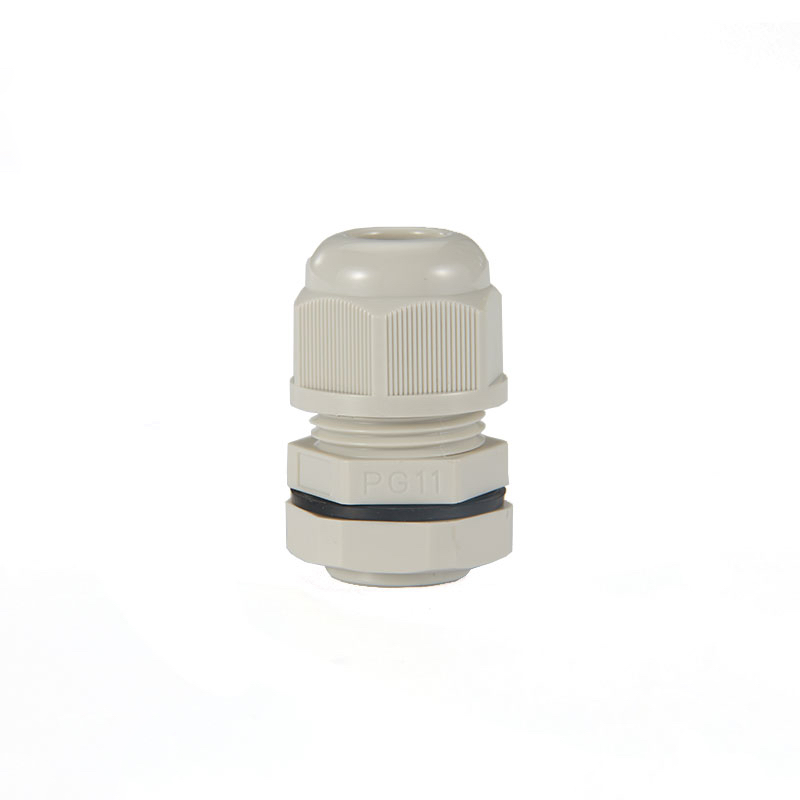

German thread PG type
Code	Thread	Cable Range Φ (mm)	Thread O.D. Cl(mm)	Thread Length C2(mm)	SpannerSize A&F(mm)
NLPG7A-UN	PG7	3-6.5	12.5	8	17/15
NLPG7B-UN		4-8	12.5	8	17/19
NLPG7C-UN		4-8	12.5	15	17/19
NLPG9A-UN	PG9	4-8	15.2	8.2	22/19
NLPG9B-UN	PG9	4-8	15.2	15	22/19
NLPG11A-UN	PG11	5-10	18.6	10	24/22
NLPG11B-UN	PG11	5-10	18.6	15	24/22
NLPG13.5A-UN	PG13.5	6-12.5	20.4	10	27/24
NLPG13.5B-UN	PG13.5	6-12.5	20.4	15	27/24
NLPG16A-UN	PG16	8.5-14	22.5	10.8	30/27
NLPG16B-UN	PG16	8.5-14	22.5	15	30/27
NLPG19A-UN NLPG19B-UN	PG19	8.5-14 8.5-14	24 24	11 15	30/27 30/27
NLPG21A-UN	PG21	12.5-18	28.3	12	36/33
NLPG21B-UN	PG21	12.5-18	28.3	15	36/33
NLPG25A-UN	PG25	14-20	30	13	36/37
NLPG25B-UN	PG25	14-20	30	15	36/37
NLPG29A-UN	PG29	17-25	37	12	46/41
NLPG29B-UN	PG29	17-25	37	15	46/41
NLPG36-UN	PG36	24-32	47	14	57/52
NLPG42-UN	PG42	30-41	54	15	64/62
NLPG48-UN	PG48	35-45.5	59.3	18	70/65

G-type series of pipe thread
Code	Thread	Cable Range Φ(mm)	Thread O.D. Cl(mm)	Thread Length C2(mm)	SpannerSize A&F(mm)
NLG1/4-UN	G(PF)1/4″	4-8	13.157	8.5	19/19
NLG3/8-UN	G(PF)3/8″	5-10	16.662	10	22/22
NLG1/2-UN	G(PF)1/2″	6-12.5	20.955	10	27/24
NLG3/4-UN	G(PF)3/4″	12.5-18	26.441	12	36/33
NLG1-UN	G(PF)1″	17-25	33.249	15	46/41
NLG11/4-UN	G(PF)1 1/4″	30-41	41.91	15	57/52
NLG11/2-UN	G(PF)1 1/2″	25-32	48	15	60/62
NLG2-UN	G(PF)2″	29-38	60	18	60/62

NPT、G thread
Product Code	Thread AG	Cable range(mm)	Thread O.D. C1(mm)	Thread length GL(mm)	Spanner Size (mm)
NLG1/4A-UN	G1/4″	3-5.3	13.157	8.5	19/19
NLG1/4B-UN	G1/4″	4-8	13.157	8.5	19/19
NLG3/8A-UN	G3/8″	3-7	16.662	10	22/22
NLG3/8B-UN	G3/8″	5-10	16.662	10	22/22
NLG1/2A-UN	G1/2″	5-9	20.955	10	27/24
NLG1/2B-UN	G1/2″	6-12.5	20.955	10	27/24
NLG3/4A-UN	G3/4″	7-13	26.441	12	36/33
NLG3/4B-UN	G3/4″	12.5-18	26.441	12	36/33
NLG1A-UN	G1″	15-22	33.249	15	46/41
NLG1B-UN	G1″	17-25	33.249	15	46/41
NLG1 1/4A-UN	G11/4″	17-25.5	41.91	15	57/52
NLG1 1/4B-UN	G11/4″	30-41	41.91	15	57/52
NLG1 1/2A-UN	G11/2″	25-32	48	15	60/62
NLG1 1/2B-UN	G11/2″	24-32	48	15	60/62
NLG2A-UN	G2″	29-38	60	18	60/62
NLG2B-UN	G2″	39-45.5	60	18	60/62
NLNPT1/4A-UN	NPT1/4″	3-5.3	13.157	8.5	19/19
NLNPT1/4B-UN	NPT1/4″	4-8	13.157	8.5	19/19
NLNPT3/8A-UN	NPT3/8″	3-7	16.662	10	22/22
NLNPT3/8B-UN	NPT3/8″	5-10	16.662	10	22/22
NLNPT1/2A-UN	NPT1/2″	5-9	20.955	10	24/24
NLNPT1/2B-UN	NPT1/2″	6-12.5	20.955	10	24/24
NLNPT3/4A-UN	NPT3/4″	7-13	26.441	15	33/33
NLNPT3/4B-UN	NPT3/4″	12.5-18	26.441	15	33/33
NLNPT1A-UN	NPT1″	15-22	33.249	15	41/41
NLNPT1B-UN	NPT1″	17-25	33.249	15	41/41
NLNPT1 1/4A-UN	NPT11/4″	17-25.5	41.91	15	52/52
NLNPT1 1/4B-UN	NPT11/4″	24-32	41.91	15	52/52
