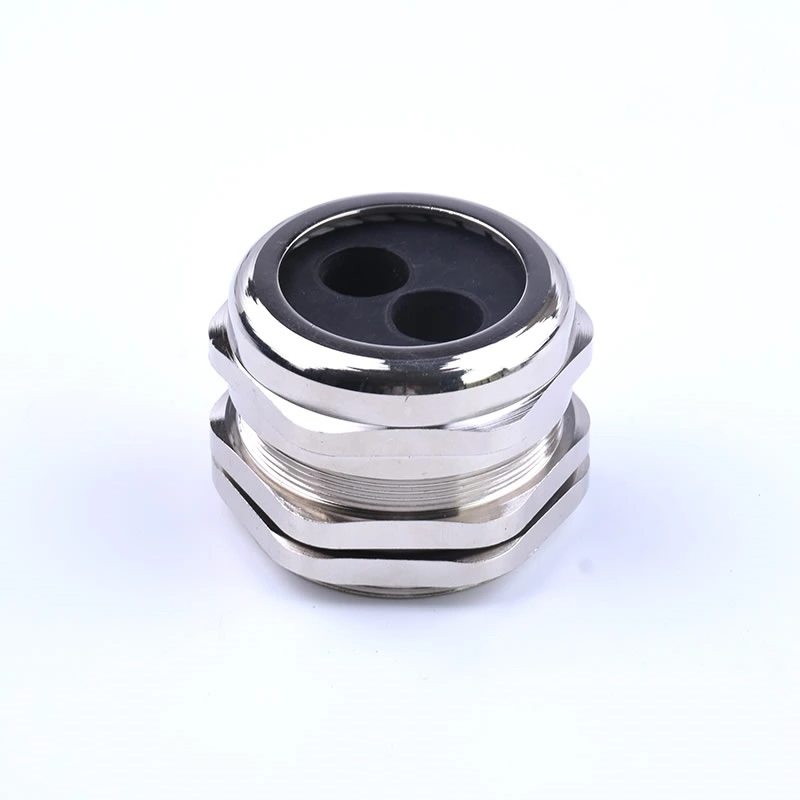

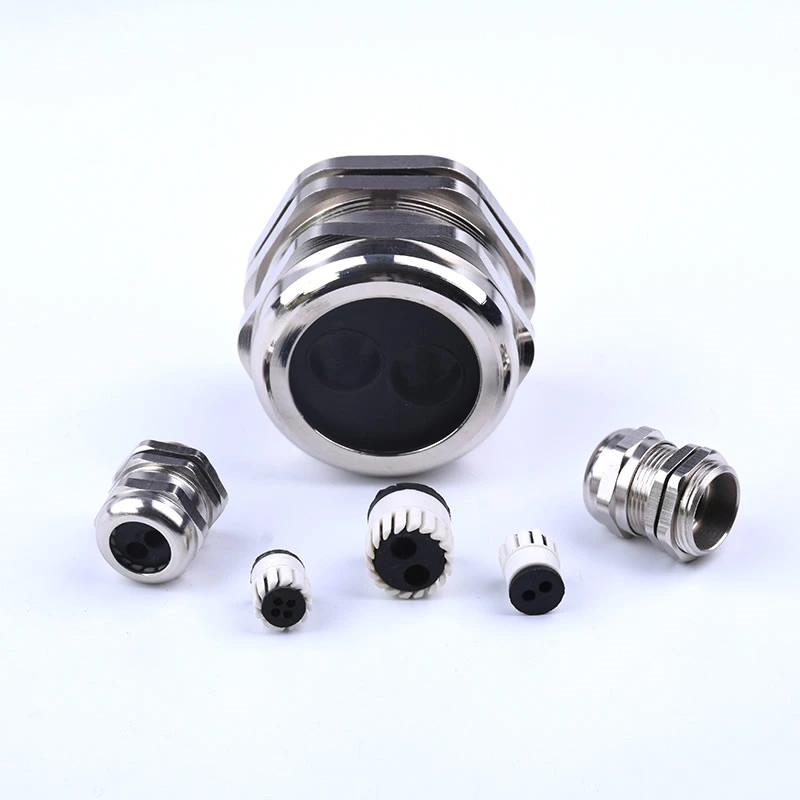

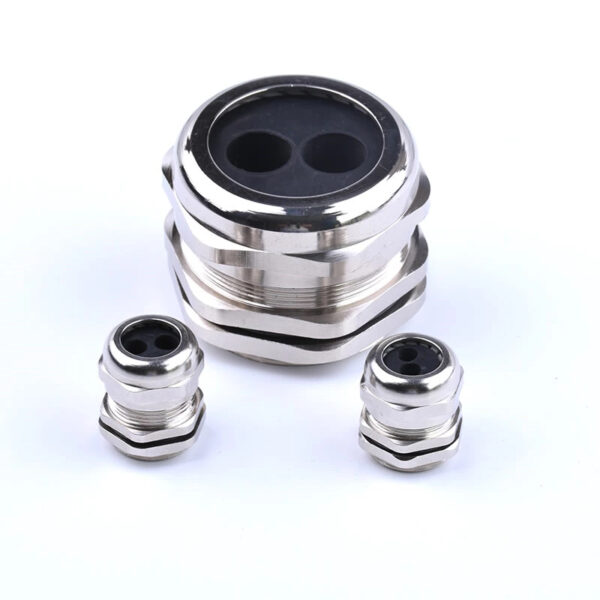

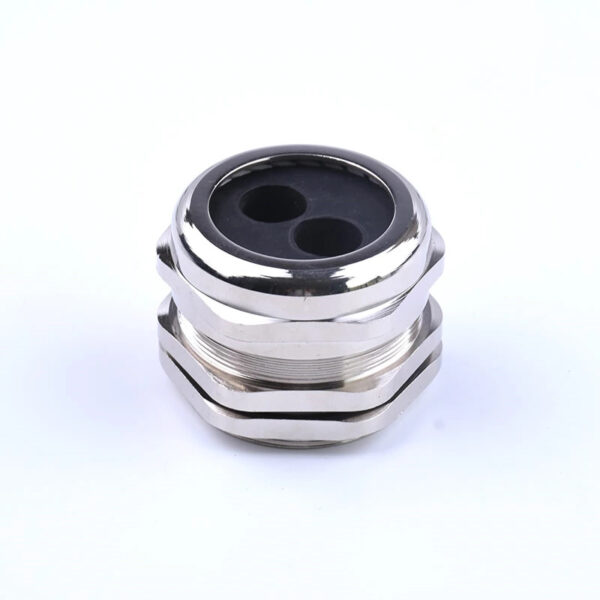

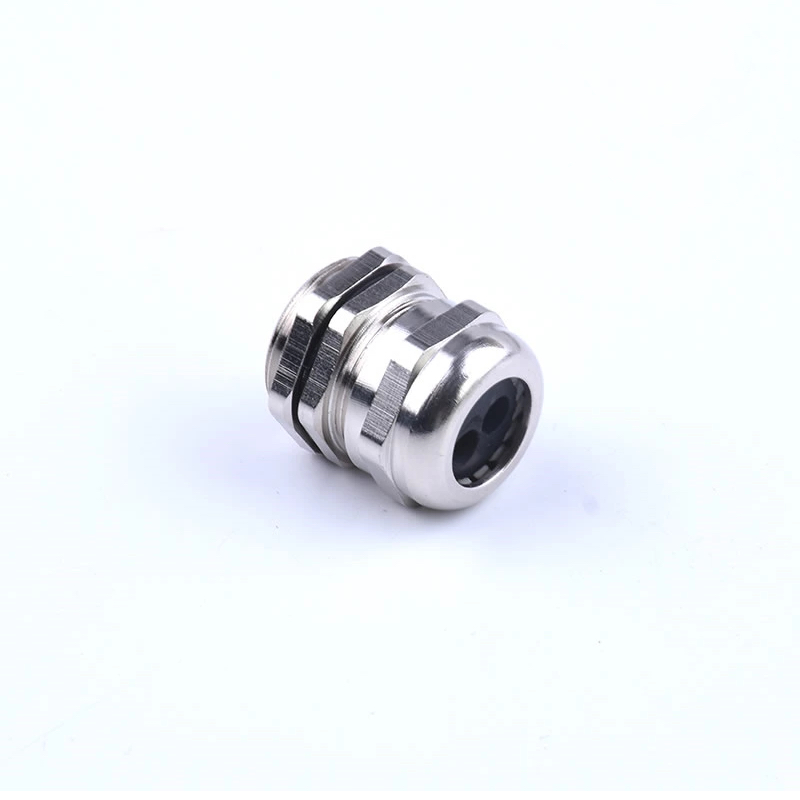

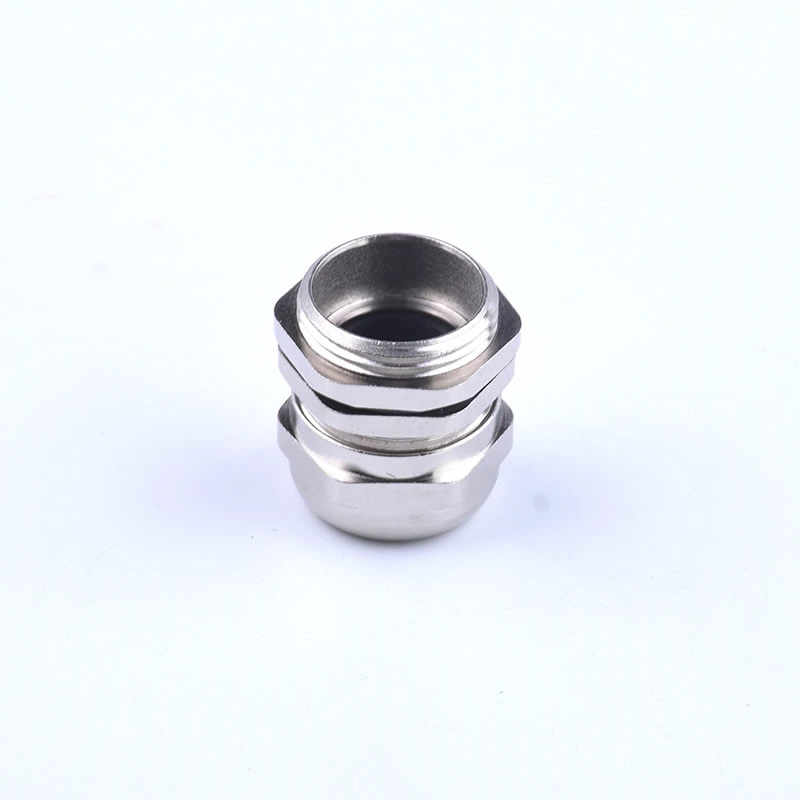

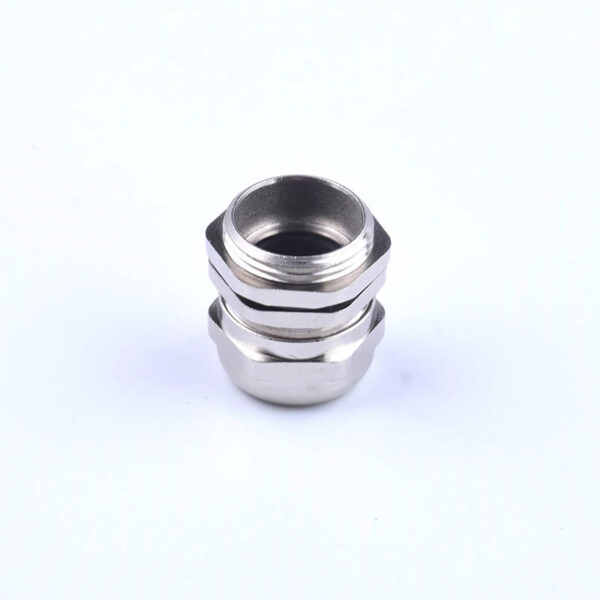

Multi-Hole Brass Cable Gland, IP68 for 2-8 Conductors

Multi-Hole Brass Cable Gland, IP68 for 2-8 Conductors

Our IP68 multi-hole brass cable gland provides a space-saving solution for routing multiple cables. Each conductor gets an individual, waterproof seal. TUV certified, available in M/PG/NPT/G threads.Technical Specifications

Technical Parameter

Product Name: Multi-Hole Brass Cable Gland
Body Material: Nickel-Plated Brass
Claw: Polyamide (PA)
Seal & O-Ring: NBR
Hole Variants: 2 to 8 holes (customization available)
Protection Rating: IP68 – 10 Bar
Operating Temperature (Static): -40°C to 100°C (short term to 120°C)
Thread Types: Metric, PG, G, NPT
Certifications: TUV, ISO9001, CE, RoHS

Key Features

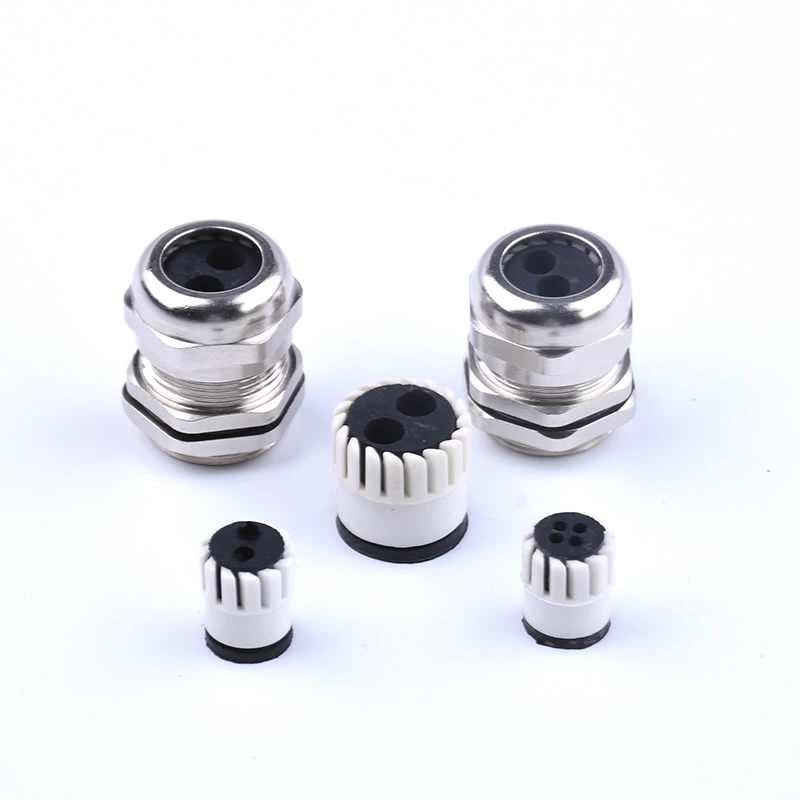

Multiple Conductor Sealing: Features a 2 to 8-hole insert, providing an independent, IP68-rated waterproof seal for each individual cable.
Space-Saving Design: Allows multiple cables to pass through a single panel hole, significantly reducing space requirements and installation costs.
Prevents Cable Twisting: Each cable is guided separately, preventing tangling and ensuring a neat and organized wire entry point.
Robust & Resistant: Constructed from nickel-plated brass with an NBR seal, offering excellent resistance to water, dust, salt, weak acids, oils, and common solvents.
Fully Certified & Versatile: TUV and ISO9001 certified. Available in a full range of Metric, PG, NPT, and G threads to meet global standards.

Code	Thread
Code	Thread	F	M2	M3	M4	M5	M6	M7	M8
M12/*	M12×1.5	/	3-1.2	3-1.2	2.3-1	/	/	/	/
M16/*	M16×1.5	/	4-1.6	4-1.6	2.3-1	2.5-1.0	2.0-1.0	/	/
M18/*	M18×1.5	6×10	3.5-2	3.5-2	3-1.2	2.6-1.5	2.2-1	/	/
M20/*	M20×1.5	5×11.5	5.3-1.5	5.3-1.5	4.2-1.7	3-1.2	3-1.2	3-1.2	3-1.2
M22/*	M22×1.5	6×14	6-2.5	6-2.5	4.5-2	/	/	/	/
M25/*	M25×1.5	6×14	8.7-4	8.7-4	5-2	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
M27/*	M27×1.5	7×18	8.7-4.5	8.7-4.5	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
M32/*	M32×1.5	8×22	10-5	10-5	9-4.5	8.0-4.0	7-3.5	6-3	/
PG7/*	PG7	/	3-1.2	3-1.2	2.3-1	/	/	/	/
PG9/*	PG9	/	4-1.6	4-1.6	2.3-1	2.5-1.0	2-1	/	/
PG11/*	PG11	6×10	3.5-2	3.5-2	3-1.2	2.6-1.5	2.2-1	/	/
PG13.5/*	PG13.5	5×11.5	5.3-1.5	5.3-1.5	4.2-1.7	4.2-1.7	/	/	/
PG16/*	PG16	6×14	6-2.5	6-2.5	4.5-2	/	/	/	/
PG21/*	PG21	7×18	8.7-4.5	8.7-4.5	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	/
PG29/*	pG29	8×22	10-5	10-5	9-4.5	8.0-4.0	7-3.5	6-3	/
G1/2/*	G1/2	5×11.5	5.3-1.5	5.3-1.5	4.2-1.7	3-1.2	3-1.2	3-1.2	3-1.2
G3/4/*	G3/4	7×18	7×18	8.7-4.5	5-2	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
G1/*	G1	8×22	8×22	10-5	10-5	8.0-4.0	7-3.5	6-3	/
