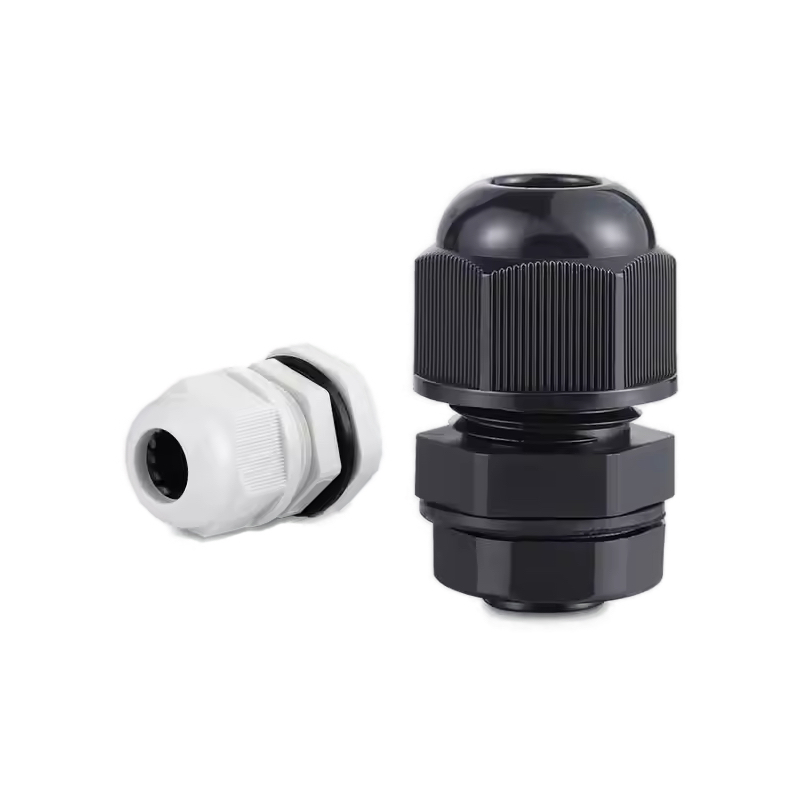

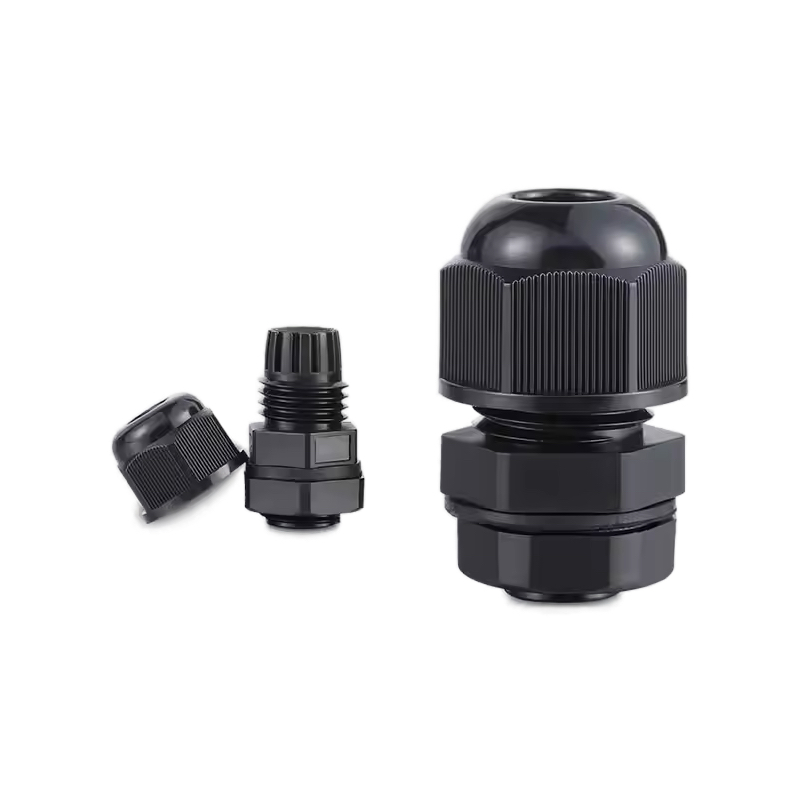

Extended Thread Nylon Cable Gland for Thick Panels, IP68

Our Extended Thread Nylon Cable Gland is the perfect IP68 solution for thick-walled enclosures. It provides superior strain relief and ensures a secure, waterproof connection where standard threads won’t reach.

Technical Parameter

Product Type: Nylon Cable Gland – Longer Thread Series
Body Material: Nylon PA66
Seal & O-Ring: NBR (Custom options available)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G(PF/BSP), NPT
Colors: Black, Gray (White, Red, Blue, etc., available on request)

Key Features

Extended Thread for Thick Boards: Specifically designed with a longer thread profile for secure mounting on thick panels, plates, and enclosure walls where standard glands are too short.
Ultra-Strong Strain Relief: The special design of the clamping claws and seal provides exceptional gripping force and superior resistance to pulling and twisting forces.
IP68-10 Bar Waterproof: Delivers the highest level of certified protection against dust and high-pressure water, ensuring connection integrity in harsh environments.
Broad Chemical Resistance: Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents for long-term durability in industrial settings.
Full Range of Threads: Available in Metric, PG, G(PF), and NPT threads to meet diverse international equipment requirements.
Customizable Options: A wide variety of colors and special-purpose rubber seals (e.g., high-temperature, chemical resistant) are available upon request.

PG Extended Thread series
Model	Thread O.D. (mm)	Holesize (mm)	Thread Length (mm)	Body Thickness (mm)	Cable Range Φ (mm)	Spanner Size A&F(mm)
PG7-L	12.5	Φ12.6-13	15	10	3-6.5	18/16
PG7-L	12.5	Φ12.6-13	15	10	2~5	18/16
PG9-L	15.2	Φ15.3-15.5	15	10	4~8	22/19
PG9-L	15.2	Φ15.3-15.5	15	10	2-6	22/19
PG11-L	18.6	Φ18.7-19	15	7-10	5-10	24/22
PG11-L	18.6	Φ18.7-19	15	7-10	3~7	24/22
PG13.5-L	20.4	Φ20.5-21	15	8-11	6-11	27/24
PG13.5-L	20.4	Φ20.5-21	15	8-11	5-9	27/24
PG1-L6	22.5	Φ22.6-23	15	11	10-14	30/27
PG16-L	22.5	Φ22.6-23	15	11	7-12	30/27
PG21-L	28.3	Φ28.5-29	15	11	13-18	36/33
PG21-L	28.3	Φ28.5-29	15	11	9-16	36/33

M Extended Thread series
Model	Thread O.D. (mm)	Holesize (mm)	Thread Length (mm)	Body Thickness (mm)	Cable Range Φ(mm)	Spanner Size A&F(mm)
M12-L	M12X1.5	Φ12.2-12.5	15	10	3-3.5	18/16
M12-L	M12X1.5	Φ12.2-12.5	15	10	2-5	18/16
M16-L	M16X1.5	Φ16.2-16.5	15	10	4-8	22/19
M16-L	M16X1.5	Φ16.2-16.5	15	10	2-6	22/19
M18-L	M18X1.5	Φ18.2-18.5	15	10	5-10	24/22
M18-L	M18X1.5	Φ18.2-18.5	15	10	3-7	24/22
M20-L	M20X1.5	Φ20.2-20.5	15	11	6-12	27/24
M20-L	M20X1.5	Φ20.2-20.5	15	11	5-9	27/24
M22-L	M22X1.5	Φ22.2-22.5	15	11	10-14	30/27
M22-L	M22X1.5	Φ22.2-22.5	15	11	7-12	30/27
M25-L	M25X1.5	Φ25.2-25.5	15	11	13-18	33/33
M25-L	M25X1.5	Φ25.2-25.5	15	11	9-16	33/33
M32-L	M32X1.5	Φ32.2-32.5	15	11	18-25	39/36
M32-L	M32X1.5	Φ32.2-32.5	15	11	13-20	39/36
