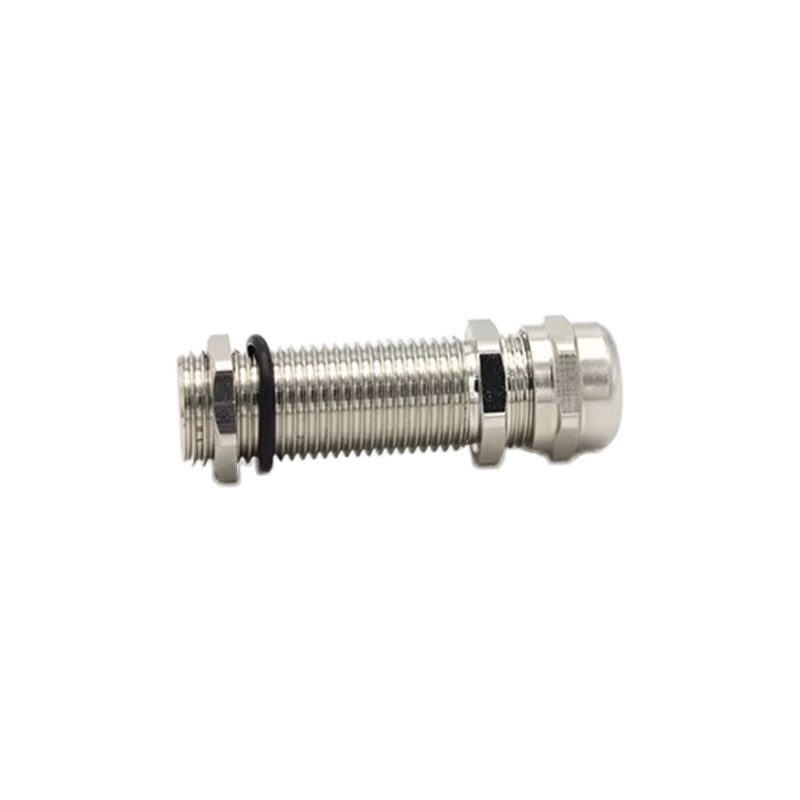

Extended Long Thread Brass Cable Gland for Thick Panels, IP68

Extended Long Thread Brass Cable Gland for Thick Panels, IP68

Our IP68 extended thread brass cable gland is the perfect solution for thick-walled enclosures. Offers robust strain relief and excellent chemical resistance. TUV certified. Fully customizable in M, PG, NPT, G sizes.

Technical Parameter

Product Name: Extended Thread Brass Cable Gland
Body Material: Nickel-Plated Brass (Stainless Steel 304/316L available)
Claw: Polyamide (PA)
Seal & O-Ring: NBR
Protection Rating: IP68
Operating Temperature: -40°C to 100°C (short term up to 120°C)
Thread Types: Metric (Standard), PG, NPT, G (Available)
Certifications: CE, TUV, ISO9001
Patent: National Utility Model Patent

Key Features

Extended Thread for Thick Boards: Specifically designed with a longer thread profile for secure mounting on thick panels, plates, and enclosure walls.
IP68 Certified Protection: Provides a fully waterproof and dust-tight seal, ensuring long-term reliability in harsh conditions. Certified by TUV.

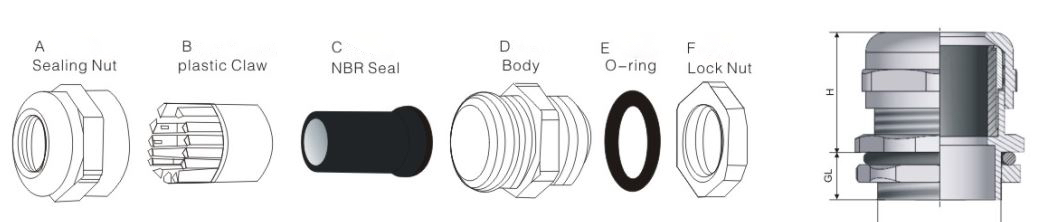

Superior Strain Relief: The internal PA claw and NBR seal work together to provide a firm grip on the cable, protecting it from pulling and twisting.
Broad Chemical Resistance: Made from nickel-plated brass, it is resistant to water, salt, weak acids, alcohol, oil, and common solvents.
Full Range of Sizes & Customization: Available in Metric, PG, NPT, and G threads. Custom materials (like SS304/SS316L) and sizes are welcome.

Longer Thread Cable Gland– Metric thread
Product Code	Thread AG	Cable range(mm)	Thread O.D. (mm)	Thread length GL(mm)	Spanner Size (mm)
M8L	M8*1.0	2-5	8	8	12
M10L	M10*1.0	3-6.5	10	10	14
M12L	M12*1.5	3-6.5	12	10	14
M14L	M14*1.5	4-8	14	12	17
M16L	M16*1.5	4-8	16	12	18
M18L	M18*1.5	5-10	18	12	20
M20L	M20*1.5	6-12	20	12	22
M22L	M22*1.5	10-14	22	12	24
M24L	M24*1.5	10-14	24	12	24/27
M25-14L	M25*1.5	10-14	25	12	24/27
M25-18L	M25*1.5	13-18	25	12	30/27
M27L	M27*1.5	13-18	27	12	30
M28L	M28*1.5	13-18	28	12	30
M30L	M30*1.5	13-18	30	14	30/32
M32L	M32*1.5	15-22	32	14	35
M33L	M33*1.5	15-22	33	14	35
M36L	M36*1.5	18-25	36	14	40
M37L	M37*1.5	18-25	37	14	40
M40-25L	M40*1.5	18-25	40	15	40/45
M40-30L	M40*1.5	22-30	40	15	45
M42L	M42*1.5	22-30	42	15	45
M47L	M47*1.5	25-33	47	15	50
M48L	M48*1.5	25-33	48	15	50/52
M50L	M50*1.5	32-38	50	15	57/55
M54L	M54*1.5	32-38	54	15	57
M60L	M60*1.5	37-44	60	16	64
M63L	M63*1.5	37-44	63	16	64/68
M64L	M64*2.0	37-44	64	16	64/68
M72L	M72*2.0	42-52	72	18	78
M75L	M75*2.0	42-52	75	18	78/80
M80L	M80*2.0	50-62	80	20	86/88
M88L	M88*2.0	60-70	88	20	98
M100L	M100*2.0	70-80	100	22	110
