Nylon Cable Gland

Nylon Cable Glands & Conduit Fittings

A comprehensive catalog of high-performance nylon solutions for cable entry, protection, and connection.

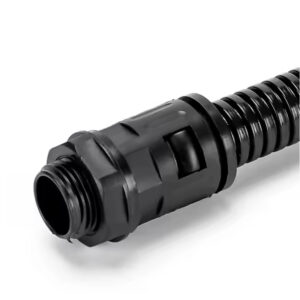

Quick Connect Conduit Fitting, Nylon for Corrugated Tubing

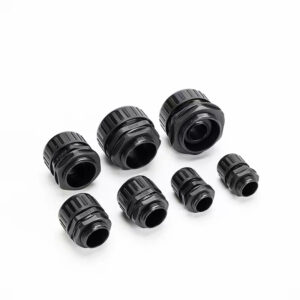

Nylon Corrugated Conduit Connector, IP68 Liquid Tight Fitting

Flexible Nylon Cable Gland for Bend Protection, IP68

90 Degree Nylon Cable Gland, IP68 Right Angle Connector

Extended Thread Nylon Cable Gland for Thick Panels, IP68

Multi-Hole Nylon Cable Gland, IP68 Waterproof Connector

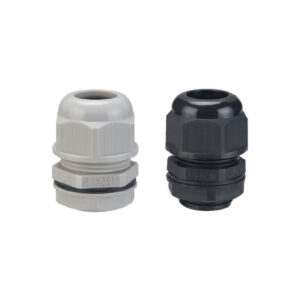

Divided Nylon Cable Gland with High Strain Relief

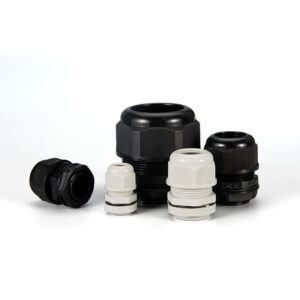

One-Piece Nylon Cable Gland for Fast Installation, IP68

Typical Applications

Control Panels

Robotics & Automation

Renewable Energy

Telecommunications

HVAC Systems

Marine Applications

Standard Nylon Cable Glands (One-Piece & Divided)

One-Piece & Divided High Strain Relief Glands

Our standard glands are the workhorse of industrial cable entry. Available in a fast-installing one-piece design or a flexible divided (multi-part) structure, both providing exceptional performance.

IP68-10 Bar Protection

Ensures the highest level of waterproof and dustproof integrity.

Superior Strain Relief

Specially designed claws and seals grip the cable securely, resisting strong pulling forces.

UL-Approved Nylon PA66

Guarantees high mechanical strength and durability.

Audible "Click" Lock Nut

Specially designed claws and seals grip the cable securely, resisting strong pulling forces.

One-Piece vs. Divided

Choose the one-piece for fast, error-proof installation or the divided version for interchangeability of seals (e.g., for high-temp needs).

General Technical Specifications

Material

UL Approved Nylon PA66 (UL94V-2)

Seal/O-Ring

EPDM Rubber

Protection

IP68-10 Bar

Static Temp

-40°C to 100°C

Dynamic Temp

-20°C to 80°C

Threads

Metric, PG, G(PF/BSP), NPT

Product Models & Specifications

Part Number	Type	Thread	Cable Range (mm)	Spanner Size (mm)
NLM8-UN	One-Piece	M8x1.25	2-4.8	13/12
NLM10-UN	One-Piece	M10x1.5	3-6	15/13
NLM12A-UN	One-Piece	M12x1.5	3-6.5	18/15
NLM12B-UN	One-Piece	M12x1.5	3-6.5	18/15
NLM12C-UN	One-Piece	M12x1.5	3-5.5	18/19
NLM12D-UN	One-Piece	M12x1.5	4-8	18/19
NLM12E-UN	One-Piece	M12x1.5	3-5.5	18/19
NLM12F-UN	One-Piece	M12x1.5	4-8	18/19
NLM12A-DS	Divided	M12x1.5	3-5.5	18/19
NLM12B-DS	Divided	M12x1.5	4.5-7.8	18/19
NLM16A-UN	One-Piece	M16x1.5	4-8	22/19
NLM16B-UN	One-Piece	M16x1.5	4-8	22/19
NLM16C-UN	One-Piece	M16x1.5	5-10	22/22
NLM16D-UN	One-Piece	M16x1.5	5-10	22/22
NLM16A-DS	Divided	M16x1.5	4-8	22/19
NLM16B-DS	Divided	M16x1.5	4-8	22/19
NLM16C-DS	Divided	M16x1.5	6-10	22/22
NLM16D-DS	Divided	M16x1.5	6-10	22/22
NLM18A-UN	One-Piece	M18x1.5	5-10	24/22
NLM18B-UN	One-Piece	M18x1.5	5-10	24/22
NLM20A-UN	One-Piece	M20x1.5	6-12.5	27/24
NLM20B-UN	One-Piece	M20x1.5	8.5-14	27/27
NLM20C-UN	One-Piece	M20x1.5	8.5-14	27/27
NLM20A-DS	Divided	M20x1.5	6-12.5	24/24
NLM20B-DS	Divided	M20x1.5	9-14	27/27
NLM20C-DS	Divided	M20x1.5	9-14	27/27
NLM22-UN	One-Piece	M22x1.5	8.5-14	27/27
NLM22-DS	Divided	M22x1.5	9-14	27/27
NLM24-UN	One-Piece	M24x1.5	8.5-14	27/27
NLM25A-UN	One-Piece	M25x1.5	8.5-14	33/27
NLM25B-UN	One-Piece	M25x1.5	12.5-18	33/33
NLM25C-UN	One-Piece	M25x1.5	12.5-18	33/33
NLM25A-DS	Divided	M25x1.5	10-16	33/33
NLM25B-DS	Divided	M25x1.5	13-18	33/33
NLM25C-DS	Divided	M25x1.5	10-16	33/33
NLM25D-DS	Divided	M25x1.5	13-18	33/33
NLM32A-UN	One-Piece	M32x1.5	14-22	41/42
NLM32B-UN	One-Piece	M32x1.5	17-25	41/42
NLM32A-DS	Divided	M32x1.5	15-22	41/42
NLM32B-DS	Divided	M32x1.5	18-25	41/42
NLM36A-UN	One-Piece	M36x1.5	14-22	45/42
NLM36B-UN	One-Piece	M36x1.5	17-25	45/42
NLM40-UN	One-Piece	M40x1.5	23-32	50/52
NLM40-DS	Divided	M40x1.5	24-31	50/52
NLM50-UN	One-Piece	M50x1.5	30-41	62/62
NLM50-DS	Divided	M50x1.5	31-41	62/62
NLM63-UN	One-Piece	M63x1.5	35-46	75/65
NLM63-DS	Divided	M63x1.5	44-51	75/75
NLM75-DS	Divided	M75x2.0	56-66	92/92
NLM90-DS	Divided	M90x2.0	66-77	110/110

Part Number	Type	PG Thread	Cable Range (mm)	Spanner Size (mm)
NLPG7A-UN	One-Piece	PG7	3-6.5	17/15
NLPG7B-UN	One-Piece	PG7	4-8	17/19
NLPG7C-UN	One-Piece	PG7	4-8	17/19
NLPG7-DS	Divided	PG7	4.5-7.8	17/19
NLPG9A-UN	One-Piece	PG9	4-8	22/19
NLPG9B-UN	One-Piece	PG9	4-8	22/19
NLPG9-DS	Divided	PG9	4.5-7.8	22/19
NLPG11A-UN	One-Piece	PG11	5-10	24/22
NLPG11B-UN	One-Piece	PG11	5-10	24/22
NLPG11-DS	Divided	PG11	6-10	24/22
NLPG13.5A-UN	One-Piece	PG13.5	6-12.5	27/24
NLPG13.5B-UN	One-Piece	PG13.5	6-12.5	27/24
NLPG13.5-DS	Divided	PG13.5	7-12.5	27/24
NLPG16A-UN	One-Piece	PG16	8.5-14	30/27
NLPG16B-UN	One-Piece	PG16	8.5-14	30/27
NLPG16-DS	Divided	PG16	9-14	30/27
NLPG19A-UN	One-Piece	PG19	8.5-14	30/27
NLPG19B-UN	One-Piece	PG19	8.5-14	30/27
NLPG21A-UN	One-Piece	PG21	12.5-18	36/33
NLPG21B-UN	One-Piece	PG21	12.5-18	36/33
NLPG21-DS	Divided	PG21	13-18	36/33
NLPG25A-UN	One-Piece	PG25	14-20	36/37
NLPG25B-UN	One-Piece	PG25	14-20	36/37
NLPG29A-UN	One-Piece	PG29	17-25	46/41
NLPG29B-UN	One-Piece	PG29	17-25	46/41
NLPG29-DS	Divided	PG29	18-25	46/41
NLPG36-UN	One-Piece	PG36	24-32	57/52
NLPG36-DS	Divided	PG36	24-31	57/52
NLPG42-UN	One-Piece	PG42	30-41	64/62
NLPG42-DS	Divided	PG42	31-41	64/62
NLPG48-UN	One-Piece	PG48	35-45.5	70/65

Part Number	Type	NPT Thread	Cable Range (mm)	Spanner Size (mm)
NLNPT1/4-UN	One-Piece	NPT 1/4"	4-8	19
NLNPT3/8-UN	One-Piece	NPT 3/8"	5-10	22
NLNPT1/2-UN	One-Piece	NPT 1/2"	6-12.5	24
NLNPT3/4-UN	One-Piece	NPT 3/4"	12.5-18	33
NLNPT1-UN	One-Piece	NPT 1"	17-25	41
NLNPT11/4A-UN	One-Piece	NPT 1 1/4"	17-25.5	52
NLNPT11/4B-UN	One-Piece	NPT 1 1/4"	24-32	52

Part Number	Type	G Thread	Cable Range (mm)	Spanner Size (mm)
NLG1/4-UN	One-Piece	G 1/4"	4-8	19/19
NLG1/4-DS	Divided	G 1/4"	5-7.8	19/19
NLG3/8-UN	One-Piece	G 3/8"	5-10	22/22
NLG3/8-DS	Divided	G 3/8"	6-10	22/22
NLG1/2-UN	One-Piece	G 1/2"	6-12.5	27/24
NLG1/2-DS	Divided	G 1/2"	7-12.5	27/24
NLG3/4-UN	One-Piece	G 3/4"	12.5-18	36/33
NLG3/4-DS	Divided	G 3/4"	12.5-18	36/33
NLG1-UN	One-Piece	G 1"	17-25	46/41
NLG1-DS	Divided	G 1"	17-25	46/41
NLG11/4-UN	One-Piece	G 1 1/4"	30-41	57/52
NLG11/4-DS	Divided	G 1 1/4"	24-32	57/52
NLG11/2-UN	One-Piece	G 1 1/2"	25-32	60/62
NLG11/2-DS	Divided	G 1 1/2"	31-41	60/62
NLG2-UN	One-Piece	G 2"	29-38	60/62
NLG2-DS	Divided	G 2"	44-51	72/65

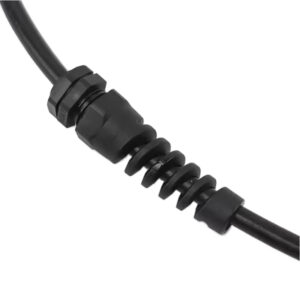

Flexible Nylon Cable Glands for Bend Protection

Spiral Guard for Dynamic Applications

Designed for robotics, moving machinery, and automation systems, these glands feature an integrated spiral guard to prevent cable damage from frequent flexing and vibration.

Superior Bend Protection

The flexible spiral guard prevents kinking and fatigue at the cable entry point, extending cable life.

IP68 Certified Protection

Provides a robust seal against dust and water, ensuring reliability in dynamic environments.

High Strain Relief

The clamping claw and seal design securely grips the cable against pulling forces.

Broad Chemical Resistance

Resistant to salt water, weak acids, oil, grease, and common solvents.

General Technical Specifications

Material

Nylon PA66

Seal/O-Ring

NBR or EPDM

Protection

IP68

Static Temp

-40°C to 100°C

Dynamic Temp

-20°C to 80°C

Threads

Metric, PG

Product Models & Specifications

Part Number	Thread	Cable Range (mm)	Thread Length (mm)	Spanner Size (mm)
M12-NFL	M12	3-6.5	8	16
M16-NFL	M16	4-8	8	19
M18-NFL	M18	5-10	8	22
M20-NFL	M20	6-12	9	24
M22-NFL	M22	10-14	10	27
M25-NFL	M25	13-18	10	33
M27-NFL	M27	13-18	10	33

Part Number	PG Thread	Cable Range (mm)	Thread Length (mm)	Spanner Size (mm)
PG7-NFL	PG7	3-6.5	8	16
PG9-NFL	PG9	4-8	8	19
PG11-NFL	PG11	5-10	8	22
PG13.5-NFL	PG13.5	6-12	9	24
PG-16NFL	PG16	10-14	10	27
PG21-NFL	PG21	13-18	10	33

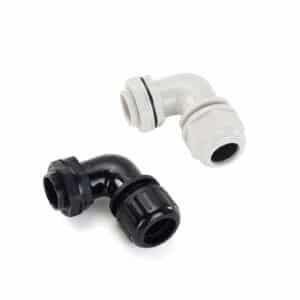

90 Degree Right Angle Nylon Cable Glands

Space-Saving Right Angle Connection

The right-angle profile is perfect for routing cables in tight corners and confined spaces, preventing sharp bends and cable damage without compromising on performance.

Space-Saving 90° Design

Ideal for applications with limited clearance, ensuring a neat and secure cable installation.

IP68 Certified Protection

Delivers robust protection against dust and deep water immersion.

Vibration-Proof Connection

An internal ratchet with a self-locking mechanism resists loosening from machine vibrations.

UL Certified Material

Constructed from UL-approved Nylon PA66 for high safety and quality standards.

General Technical Specifications

Material

UL Approved Nylon PA66 (UL94V-2)

Seal/O-Ring

NBR or EPDM

Protection

IP68-10 Bar

Static Temp

-40°C to 100°C

Dynamic Temp

-20°C to 80°C

Threads

Metric, PG

Product Models & Specifications

Part Number	M Thread	Cable Range (mm)	Thread Length (mm)	Overall Length (mm)	Spanner Size (mm)
NLWM16X1.5	M16x1.5	4-8	8	37	19
NLWM18X1.5	M18x1.5	5-10	8	39	22
NLWM20X1.5	M20x1.5	6-12	9	43	24
NLWM22X1.5	M22x1.5	10-14	10	48	27
NLWM25X1.5	M25x1.5	13-18	11	56	33
NLWM32X1.5	M32x1.5	18-25	11	68	41/42

Part Number	PG Thread	Cable Range (mm)	Thread Length (mm)	Overall Length (mm)	Spanner Size (mm)
NLWPG9	PG9	4-8	8	37	19
NLWPG11	PG11	5-10	8	39	22
NLWPG13.5	PG13.5	6-12	9	43	24
NLWPG16	PG16	10-14	10	48	27
NLWPG21	PG21	13-18	11	56	33
NLWPG29	PG29	18-25	11	68	41/42

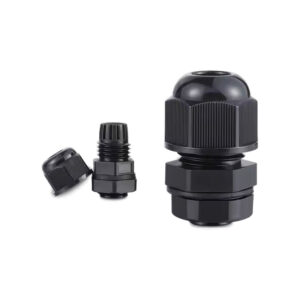

Extended Thread Nylon Cable Glands

For Thick-Walled Enclosures & Panels

Specifically designed with a longer thread profile for secure mounting on thick panels, plates, and enclosure walls where standard glands are too short.

Extended Thread Profile

Ensures sufficient engagement and a secure fit on materials of greater thickness.

IP68-10 Bar Waterproof

Delivers the highest level of certified protection in harsh environments.

Ultra-Strong Strain Relief

Provides exceptional gripping force against pulling and twisting.

Customizable Options

Available in a wide variety of colors and with special-purpose rubber seals upon request.

General Technical Specifications

Material

Nylon PA66

Seal/O-Ring

NBR

Protection

IP68-10 Bar

Static Temp

-40°C to 100°C

Dynamic Temp

-20°C to 80°C

Threads

Metric, PG

Product Models & Specifications

Part Number	M Thread	Cable Range (mm)	Thread Length (mm)	Spanner Size (mm)
M12-L	M12x1.5	3-6.5 / 2-5	15	18/16
M16-L	M16x1.5	4-8 / 2-6	15	22/19
M18-L	M18x1.5	5-10 / 3-7	15	24/22
M20-L	M20x1.5	6-12 / 5-9	15	27/24
M22-L	M22x1.5	10-14 / 7-12	15	30/27
M25-L	M25x1.5	13-18 / 9-16	15	33/33
M32-L	M32x1.5	18-25 / 13-20	15	39/36

Part Number	Thread Size	Cable Range (mm)	Thread Length (mm)	Spanner Size (mm)
PG7-L	PG7	3-6.5 / 2-5	15	18/16
PG9-L	PG9	4-8 / 2-6	15	22/19
PG11-L	PG11	5-10 / 3-7	15	24/22
PG13.5-L	PG13.5	6-11 / 5-9	15	27/24
PG16-L	PG16	10-14 / 7-12	15	30/27
PG21-L	PG21	13-18 / 9-16	15	36/33

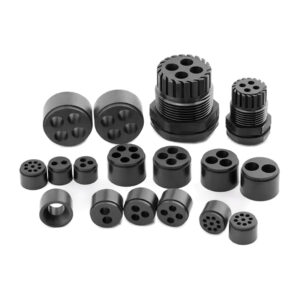

Multi-Hole Nylon Cable Glands

Space-Saving Multi-Conductor Sealing

Allows multiple cables to pass through a single panel hole, significantly reducing space requirements, cost, and installation complexity for complex wiring.

Individual Conductor Sealing

A multi-hole insert provides an independent, IP68-rated waterproof seal for each cable.

Space & Cost Saving

Reduces the number of mounting holes needed, saving valuable panel real estate and hardware costs.

High Strain Relief

The clamping mechanism secures all cables individually against pulling forces.

Versatile Configurations

Available with 2, 3, 4 or more holes in various sizes to match your application.

General Technical Specifications

Material

Nylon PA66

Seal/O-Ring

NBR

Protection

IP68-10 Bar

Static Temp

-40°C to 100°C

Dynamic Temp

-20°C to 80°C

Threads

Metric, PG

Product Models & Specifications

Part Number	Holes	Thread Size	Cable Range (mm)	Spanner Size (mm)
2-Hole Glands
NMA12-H2-03	2	M12	1.2-3	18/19
NMA16-H2-04	2	M16	1.5-4	22/22
NMA20-H2-06	2	M20	3-6	27/27
NMA22-H2-06	2	M22	3-6	27/27
NMA25-H2-6.5	2	M25	3-6.5	33/33
NMA25-H2-08	2	M25	4-8	33/33
NMA32-H2-10	2	M32	5-10	41/42
NMA40-H2-13	2	M40	7-13	50/52
3-Hole Glands
NMA12-H3-2.6	3	M12	1-2.6	18/19
NMA16-H3-04	3	M16	1.5-4	22/22
NMA20S-H3-05	3	M20	2-5	24/24
NMA20-H3-05	3	M20	2-5	27/27
NMA22-H3-05	3	M22	2-5	27/27
NMA25-H3-05	3	M25	2-5	33/33
NMA25-H3-08	3	M25	4-8	33/33
NMA32-H3-10	3	M32	6-10	41/42
NMA40-H3-11	3	M40	7-11	50/52
NMA50-H3-12	3	M50	7-12	62/62
NMA63-H3-13	3	M63	8-13	75/75
4-Hole Glands
NMA12H4-2.3	4	M12	1-2.3	18/19
NMA16-H4-3.2	4	M16	1-3.2	22/22
NMA20S-H4-04	4	M20	1.5-4	24/24
NMA20-H4-4.5	4	M20	2-4.5	27/27
NMA25-H4-05	4	M25	2-5	33/33
NMA32-H4-09	4	M32	5-9	41/42
NMA40-H4-12	4	M40	7-12	50/52
5 to 8-Hole Glands
NMA20-H5-03	5	M20	1-3	27/27
NMA25-H5-06	5	M25	3-6	33/33
NMA16A-H6-2.1	6	M16	1-2.1	22/22
NMA25A-H6-5.3	6	M25	2-5.3	33/33
NMA25-H7-4.3	7	M25	2-4.3	33/33
NMA25-H8-04	8	M25	1.5-4	33/33

Part Number	Holes	Thread Size	Cable Range (mm)	Spanner Size (mm)
2-Hole Glands
NPGA7-H2-03	2	PG7	1.2-3	17/19
NPGA9-H2-03	2	PG9	1.2-3	22/19
NPGA11-H2-04	2	PG11	1.5-4	24/22
NPGA13.5-H2-05	2	PG13.5	2-5	27/24
NPGA16-H2-06	2	PG16	3-6	30/27
NPGA21-H2-6.5	2	PG21	3-6.5	36/33
NPGA21-H2-08	2	PG21	4-8	36/33
NPGA29-H2-10	2	PG29	6-10	46/41
NPGA36-H2-13	2	PG36	7-13	57/52
3-Hole Glands
NPGA7-H3-2.6	3	PG7	1-2.6	17/19
NPGA9-H3-2.6	3	PG9	1-2.6	22/19
NPGA11-H3-04	3	PG11	1.5-4	24/22
NPGA13.5-H3-05	3	PG13.5	2-5	27/24
NPGA16-H3-05	3	PG16	2-5	30/27
NPGA21-H3-08	3	PG21	4-8	36/33
NPGA29-H3-10	3	PG29	6-10	46/41
NPGA36-H3-11	3	PG36	7-11	57/52
NPGA42-H3-12	3	PG42	7-12	64/62
NPGA48-H3-13	3	PG48	8-13	70/65
4-Hole Glands
NPGA7-H4-2.3	4	PG7	1-2.3	17/19
NPGA9-H4-2.3	4	PG9	1-2.3	22/19
NPGA11-H4-3.2	4	PG11	1-3.2	24/22
NPGA13.5-H4-04	4	PG13.5	1.5-4	27/24
NPGA16-H4-4.5	4	PG16	2-4.5	30/27
NPGA21-H4-09	4	PG21	5-9	36/33
NPGA29-H4-09	4	PG29	5-9	46/41
NPGA36-H4-12	4	PG36	7-12	57/52

Nylon Conduit Fittings

For Flexible Corrugated Tubing

Our nylon conduit fittings provide a secure and reliable connection for flexible corrugated conduits. Choose between our Quick Connect model for rapid, tool-free installation or our Liquid Tight model for IP68 waterproof performance.

Quick Connect Fitting (IP54)

Allows for instant, tool-free connection by simply pushing the conduit into the fitting. Ideal for fast assembly.

Liquid Tight Connector (IP68)

Engineered with a high-compression clamping ring for a 100% dynamic waterproof and airtight seal.

High-Performance PA Nylon

Both types are made from durable Polyamide for excellent impact resistance and thermal stability.

Reliable Connection

Designed to securely lock onto the corrugations of the tubing, resisting pull-out and vibration.

General Technical Specifications

Material

Polyamide (PA) Nylon

Seal Material (IP68):

EPDM Rubber

Protection

IP54 (Quick) / IP68 (Liquid Tight)

Static Temp

Up to 130°C

Application:

Flexible corrugated tubing

Threads

Metric, PG, G(PF)

Product Models & Specifications

Series	Size	Compatible Thread Sizes
AD10 Series	AD10	M10, M12, M16, PG7
AD13 Series	AD13	M12, M16, M18, M20, PG9
AD15.8 Series	AD15.8	M16, M18, M20, PG11
AD18.5 Series	AD18.5	M20, PG13.5
AD21.2 Series	AD21.2	M20, M24, M25, PG16
AD25 Series	AD25	M25
AD28.5 Series	AD28.5	M25, M27, M30, PG21
AD34.5 Series	AD34.5	M32, M36, PG29
AD42.5 Series	AD42.5	M40, M48, PG36
AD54.5 Series	AD54.5	M50, M60, M63, PG48

Part Number	Adapter Size	Thread Specification
Metric Thread Adapters
M12-10	AD10	M12x1.5
M16-NC13	AD13	M16x1.5
M20-NC15.8	AD15.8	M20x1.5
M25-NC21.2	AD21.2	M25x1.5
M32-NC34.5	AD34.5	M32x1.5
M40-NC42.5	AD42.5	M40x1.5
M50-NC54.5	AD54.5	M50x1.5
M63-NC54.5	AD54.5	M63x1.5
PG Thread Adapters
PG9-NC13	AD13	PG9
PG11-NC15.8	AD15.8	PG11
PG16-NC21.2	AD21.2	PG16
PG21-NC28.5	AD28.5	PG21
PG29-NC34.5	AD34.5	PG29
PG36-NC42.5	AD42.5	PG36
PG48-NC54.5	AD54.5	PG48
G(PF) Thread Adapters
PF1/2-NC15.8	AD15.8	G(PF) 1/2"
PF3/4-NC21.2	AD21.2	G(PF) 3/4"
PF1-NC34.5	AD34.5	G(PF) 1"

Committed to Quality & Standards

Our products are manufactured to meet rigorous international standards, ensuring reliability and safety for your applications.

UL

Underwriters Laboratories

CE

European Conformity

ROHS

Restriction of Hazardous Substances

ISO9001

Quality Management System

Frequently Asked Questions

When should I choose a nylon cable gland over a metal one?

Nylon cable glands are an excellent choice for applications requiring corrosion resistance, light weight, and cost-effectiveness. They are ideal for use in control panels, junction boxes, and machinery where there is no requirement for EMC shielding or extreme mechanical impact resistance, which are typical strengths of metal glands.

What is the difference between a cable gland and a conduit fitting?

A cable gland (or connector) is designed to attach and secure the end of an electrical cable to equipment, providing sealing and strain relief. A conduit fitting is used to connect sections of conduit or to connect conduit to an enclosure, protecting the cables running inside the conduit.

How do I select the correct size gland for my cable?

To select the right gland, you need to know your cable’s outer diameter (OD). Find the “Cable Range (mm)” column in our specification tables and choose a part number where your cable’s OD falls comfortably within the specified minimum and maximum values. This ensures a proper IP68 seal and effective strain relief.

What do the IP ratings like IP68 and IP54 mean?

IP (Ingress Protection) ratings classify the degree of protection against intrusion from foreign bodies (dust, dirt) and moisture. The first digit relates to solids and the second to liquids. IP68 means “Dust Tight” and protected against “Continuous Immersion in Water” under specified pressure. IP54 means “Dust Protected” (limited ingress) and protected against “Water Splashing from any direction”.

Sample order
