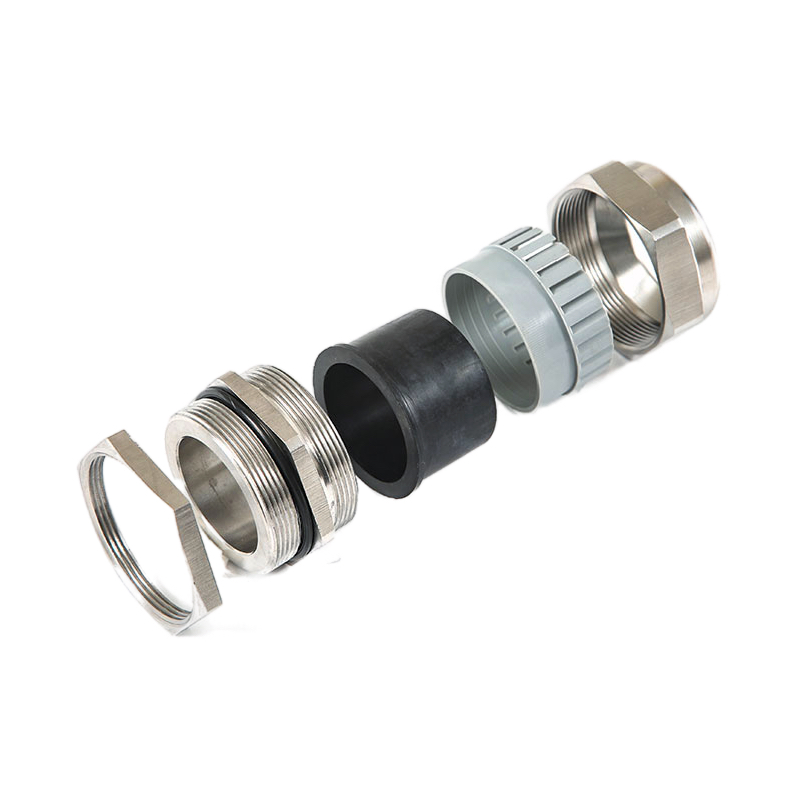

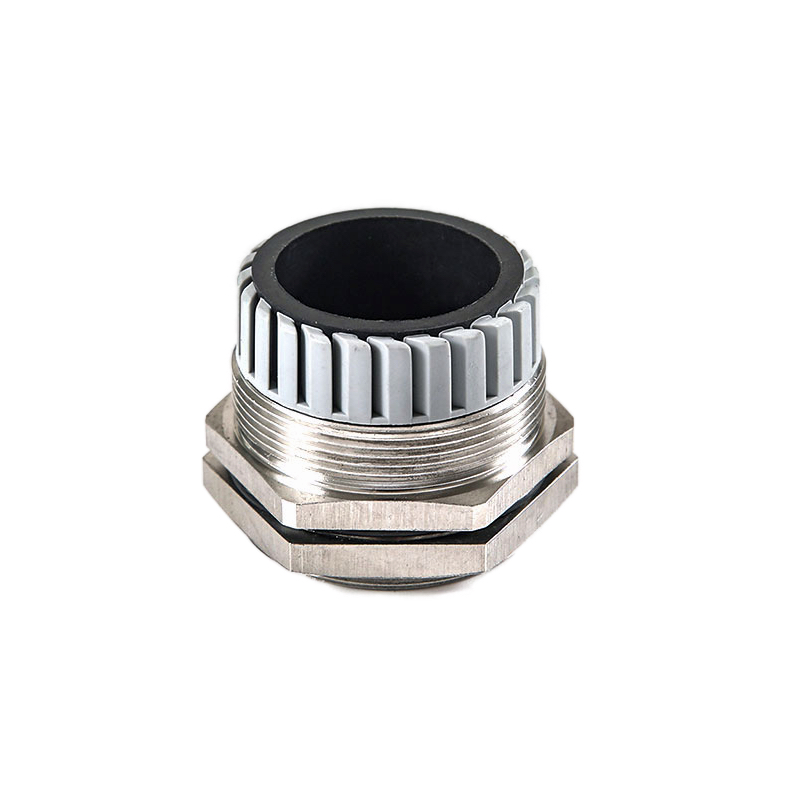

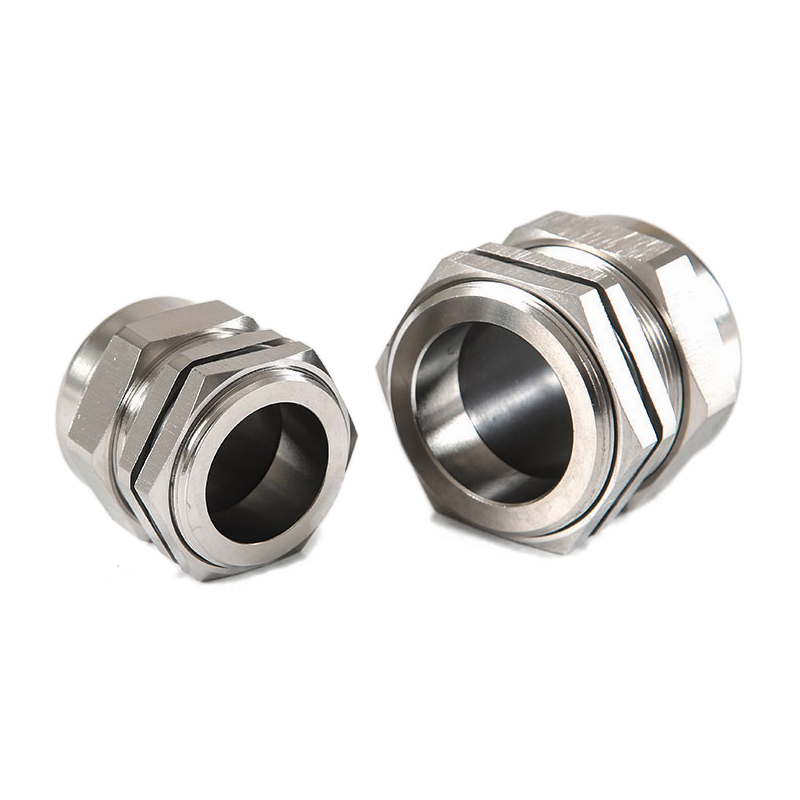

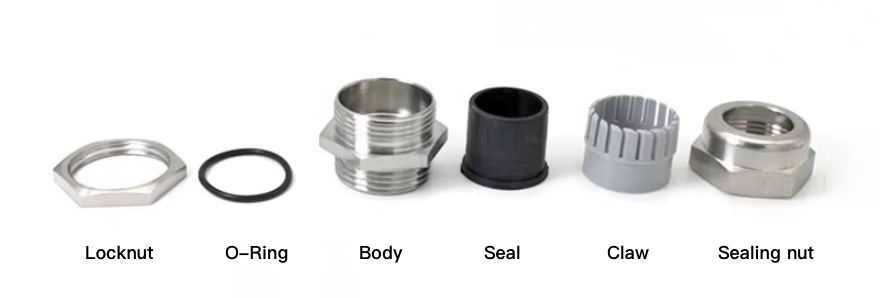

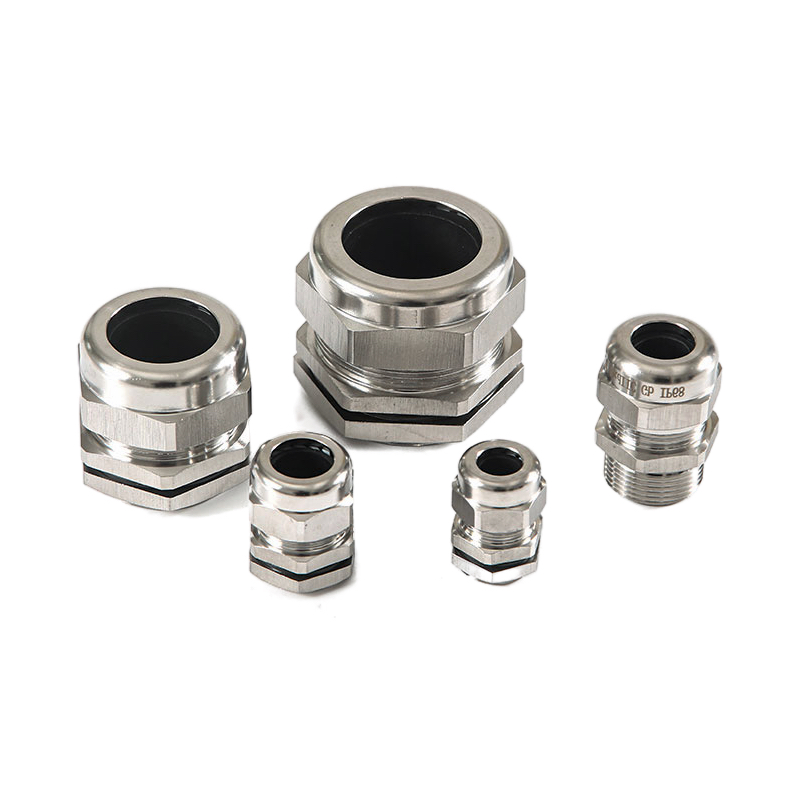

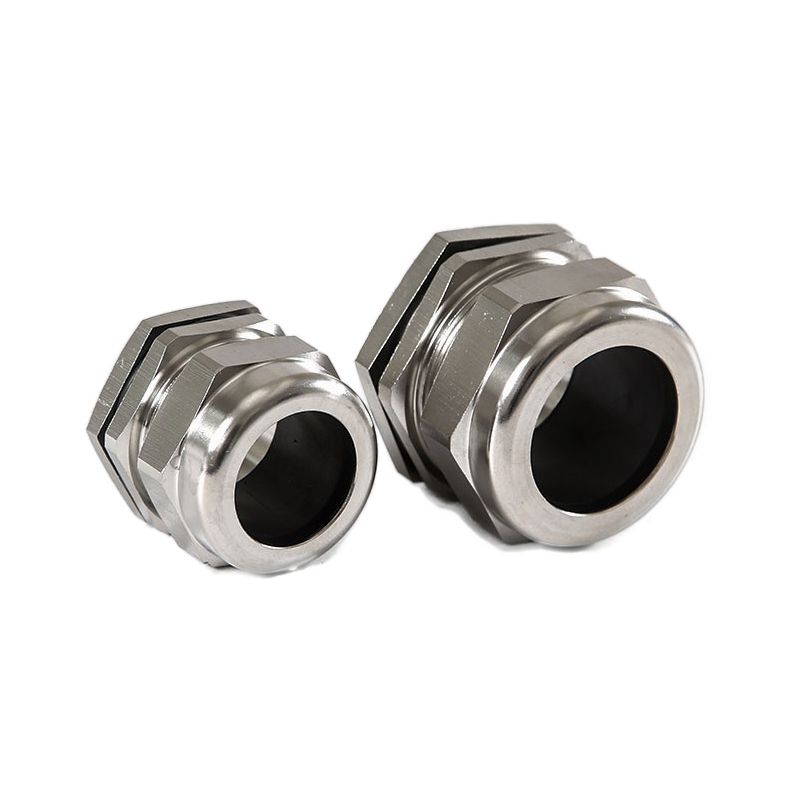

Stainless Steel Cable Gland, IP68 Corrosion-Resistant Fitting

Stainless Steel Cable Gland, IP68 Corrosion-Resistant Fitting

私たちの Stainless Steel Cable Gland offers the ultimate IP68 protection in harsh environments. Made from 304/316 grade steel, it provides superior corrosion resistance, ideal for marine and industrial use.

技術パラメーター

製品タイプ Stainless Steel Cable Gland
素材： Stainless Steel (AISI 304, AISI 316)
Protection Rating: IP68
Operating Temperature: -40°C to 100°C (short term to 120°C)
Thread Types: Metric, PG, G(PF/BSP), NPT
Available Sizes: M8-M100; PG7-PG63; NPT1/4-NPT3; G1/4-G3
Certifications: TUV, CE, RoHS, ISO9001
オプション機能： Explosion-Proof (ATEX/IECEx), Electropolished Finish

Key Features

Superior Corrosion Resistance: Made from high-quality 304/316 stainless steel, offering exceptional resistance to rust, saltwater, chemicals, and extreme weather.
IP68 Certified Protection: Provides the highest level of protection against dust and water ingress, ensuring a completely sealed and reliable connection.
High Mechanical Strength: Engineered to withstand high tension, strong vibrations, and mechanical stress without compromising integrity.
Wide Operating Temperature: Performs consistently in extreme temperatures ranging from -40°C to 100°C, suitable for any climate.
Full Range of Threads: Available in Metric, PG, NPT, and G threads, ensuring compatibility with diverse international equipment.
Fully Certified: Meets stringent international standards with CE, TUV, RoHS, and ISO9001 certifications for guaranteed quality and safety.

Thread Type: M
Item	Range Φ mm	Tread Length GL mm	Thread O.D. AG mm	Joint Length H mm	Spanner size mm	コード
M8×1	2-5	5	8	16	12	SSM8
M10×1	3-6.5	7	10	19	14	SSM10
M12×1.5	3-6.5	7	12	19	14	SSM12
M12×1.5	4-8	8	12	19	17/14	SSM12-8
M14×1.5	3-6	8	14	19	17	SSM14-6
M14×1.5	4-8	8	14	19	17	SSM14
M16×1.5	4-8	8	16	20	18	SSM16
M16×1.5	5-10	8	16	21	20/18	SSM16-10
M18×1.5	5-10	8	18	21	20/21	SSM18
M18×1.5	6-12	8	18	22	22/20	SSM18-12
M20×1.5	6-12	8	20	22	22	SSM20
M20×1.5	10-14	8	20	23	24/22	SSM20-12
M22×1.5	10-14	8	22	23	24	SSM22
M22×1.5	12-16	8	22	23	27/24	SSM22-16
M25×1.5	10-14	9	25	27	24/27	SSM25-14
M25×1.5	12-16	9	25	27	27	SSM25-16
M25×1.5	13-18	9	25	27	30/27	SSM25-18
M27×1.5	13-18	9	27	27	30	SSM27
M32×1.5	13-18	10	32	29	35	SSM32-18
M32×1.5	15-22	10	32	29	35	SSM32
M32×1.5	18-25	10	32	31	40/35	SSM32-25
M36×1.5	15-22	10	36	31	40	SSM36-22
M36×1.5	18-25	10	36	31	40	SSM36
M40×1.5	18-25	11	40	31	40/45	SSM40-25
M40×1.5	22-30	11	40	35	45	SSM40-30
M40×1.5	25-33	11	40	37	50/45	SSM40-33
M47×1.5	25-33	11	47	37	50	SSM47
M50×1.5	32-38	12	50	37	57/55	SSM50
M50×1.5	37-44	13	50	38	64/55	SSM50-44
M60×1.5	37-44	13	60	38	65	SSM60
M63×1.5	37-44	13	63	38	64/68	SSM63
M63×1.5	42-52	13	63	42	78/68	SSM63-52
M72×2	42-52	15	72	42	76/80	SSM72

Thread Type ：PG
Item	Range	Tread Length	Thread O.D.	Joint Length	Spanner size	コード
Item	Φ mm	GL mm	AG mm	H mm	mm	コード
PG7	3-6.5	7	12.5	19	14/15	SSPG7
PG9	4-8	8	15.2	20	17/18	SSPG9
PG11	5-10	8	18.6	21	20/21	SSPG11
PG13.5	6-12	8	20.4	22	22/23	SSPG13.5
PG16	10-14	8	22.5	23	24/25	SSPG16
PG21	13-18	9	28.3	27	30	SSPG21
PG29	18-25	10	37	31	40	SSPG29
PG36	25-33	11	47	37	50	SSPG36
PG42	32-38	13	54	38	60	SSPG42
PG48	37-44	14	59.3	38	65	SSPG48
PG63	42-52	16	72	42	76/80	SSPG63

Thread Type ：G/NPT
Item	Range	Tread Length	Thread O.D.	Joint Length	Spanner size	コード
Item	Φ mm	GL mm	AG mm	H mm	mm	コード
G1/4	3-6.5	7	19	13.1	14	SSG1/4
G3/8	4-8	8	21	16.6	17/20	SSG3/8
G1/2	6-12	8	22	20.9	22/23	SSG1/2
G3/4	13-18	9	25	26.4	30	SSG3/4
G1	18-25	10	29	32.2	40	SSG1/2
G1-1/4	25-33	11	35	41.9	50	NPG1-1/4
G1-1/2	32-38	12	37	47.8	57/55	NPG1-1/2
G2	37-44	14	38	59.6	65	NPG2
G2-1/2	42-52	16	42	75.1	78	NPG2-1/2
G3	65-70	18	45	88	94	NPG3
NPT1/4	3-6.5	11	19	13.6	14	SSNPT1/4
NPT3/8	4-8	11	21	17	17/20	SSNPT3/8
NPT1/2	6-12	13	23.5	21.2	22/24	SSNPT1/2
NPT3/4	13-18	13	26	26.5	30	SSNPT3/4
NPT1	18-25	16	33	33.2	40	SSNPT1
NPT1-1/4	22-32	16	37.5	41.9	50	SSNPT1 1/4
NPT1-1/2	30-38	18	38.5	48	55/58	SSNPT1 1/2
NPT2	37-44	18	40	60	65	SSNPT2
NPT2-1/2	42-52	18	40	72.6	77	SSNPT2-1/2
NPT3	55-61	18	41	88.6	94	SSNPT3
