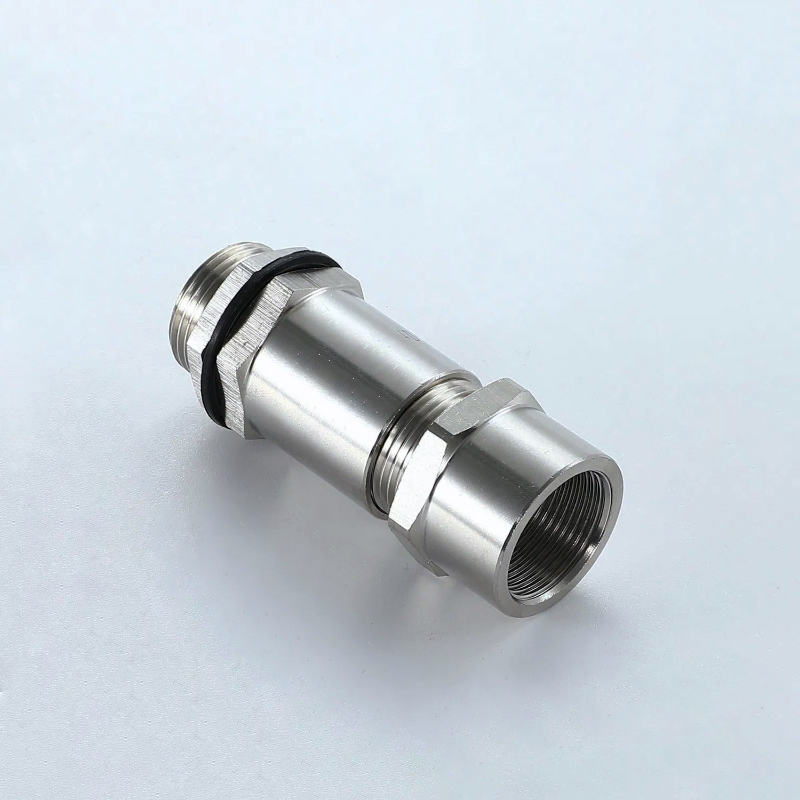

Ex-VIG Explosion-Proof Clamping Gland for Hazardous Areas

En Ex-VIG Explosion-Proof Clamping Gland is engineered for safety in Zone 1 & 2 hazardous areas. This IP66 fitting provides a certified Ex e seal for non-armoured cables in critical applications.

Parámetros técnicos

Tipo de producto: Explosion-Proof Clamping Gland
Model: BDM-VIG / Ex-VIG
Material del cuerpo: Nickel-Plated Brass / Stainless Steel (304, 316)
Seal Material: NBR or Silicone
Explosion-Proof Class: Ex eb IIC Gb; Ex tb IIIC Db
Ingress Protection: IP66
Operating Temperature: -60°C to +100°C
Applicable Cable: Non-Armoured Cables
Suitable Zones: Gas: Zone 1 & 2; Dust: Zone 20, 21, & 22
Gas Groups: IIA, IIB, IIC
Compliance Standards: IEC60079, EN60079, GB3836

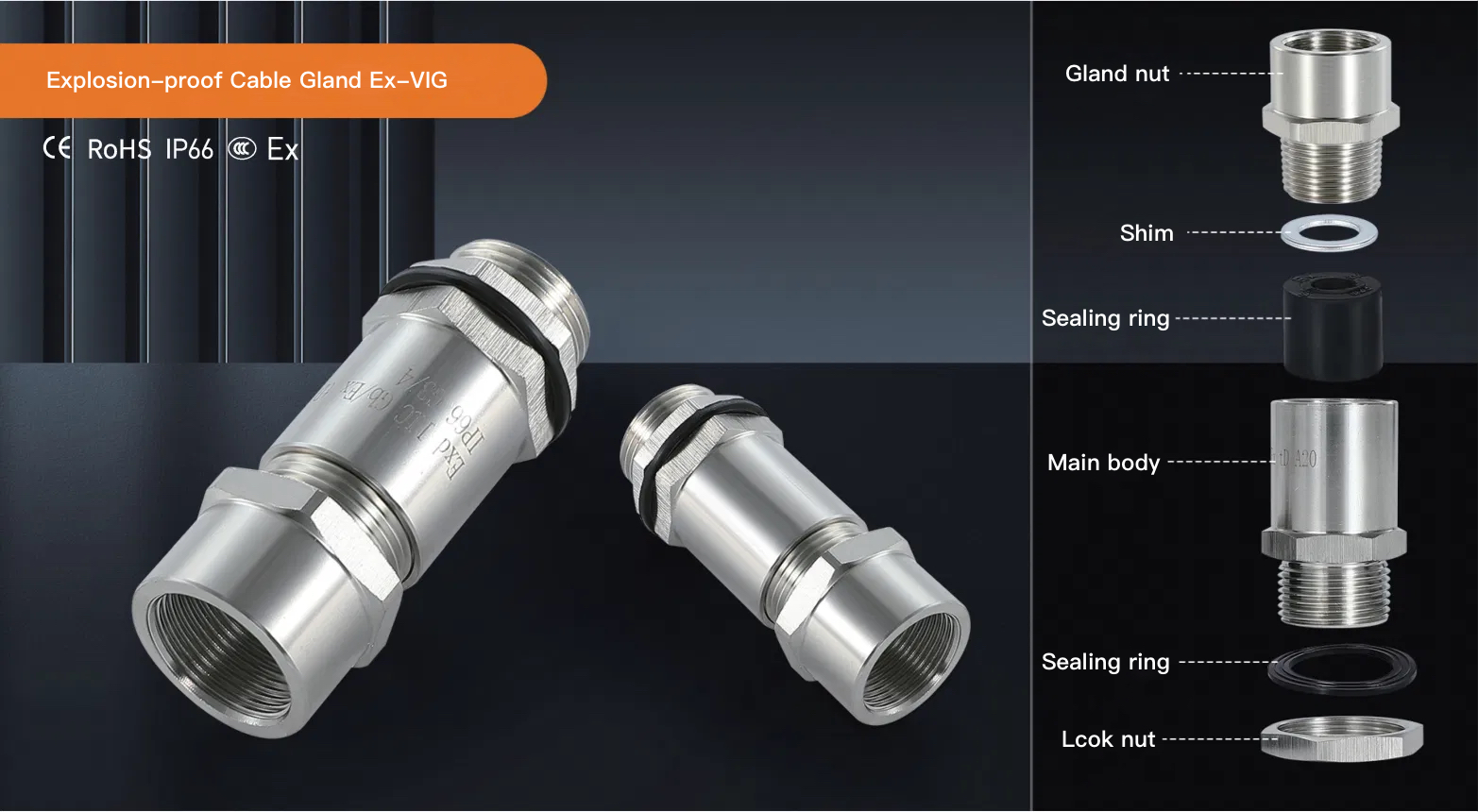

Key Features

Robust Explosion-Proof Clamping: The Ex-VIG’s core feature is its secure clamping mechanism, designed and certified to maintain integrity in explosive atmospheres.
Ex e Increased Safety Protection: Certified Ex eb (Gas) and Ex tb (Dust), making it suitable for Zone 1, 2 and Zone 20, 21, 22 hazardous locations.
For Non-Armoured Cables: Specifically designed to provide a secure clamping and sealing solution for all types of unarmoured electrical cables.
High-Quality Materials: Available in robust Nickel-Plated Brass or corrosion-resistant Stainless Steel to withstand harsh industrial environments.
IP66 Certified Seal: Provides a high level of protection against dust and powerful water jets, ensuring the integrity of the cable termination.
International Standards Compliant: Fully compliant with GB3836, IEC60079, and EN60079 standards for global projects in IIC explosive gas environments.

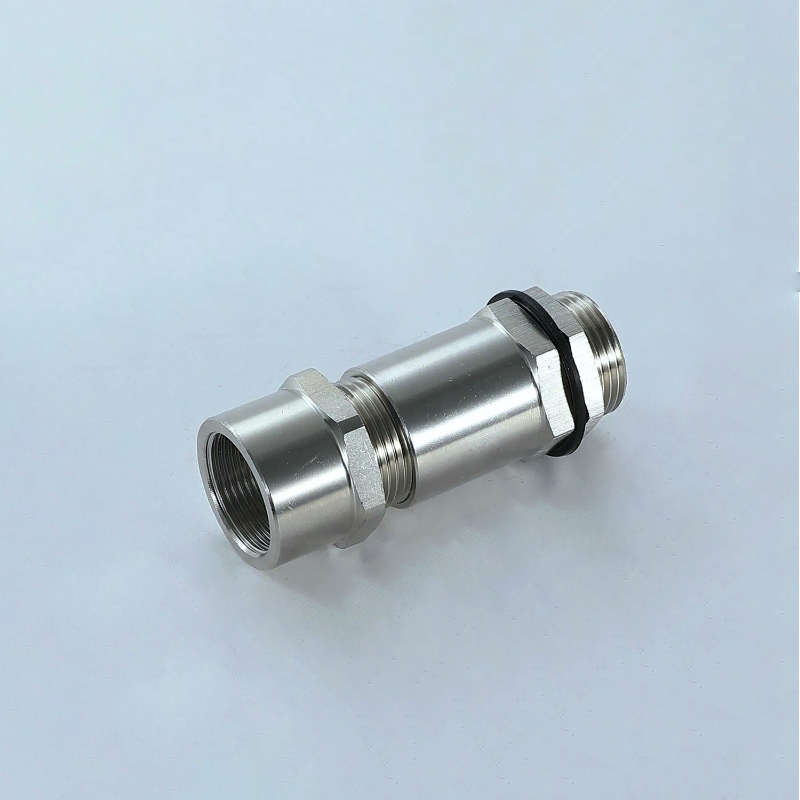

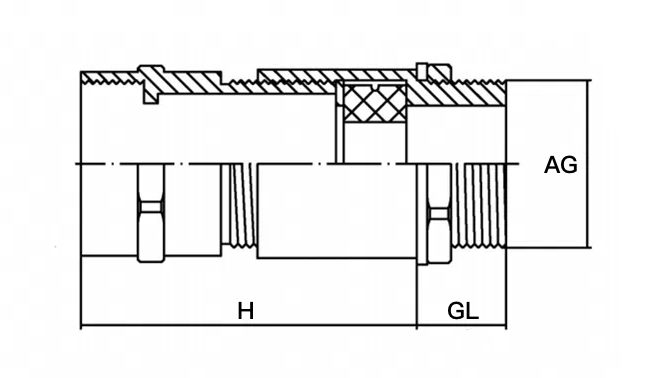

Metric Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
M16 × 1.5	Ex-VIGM16	8-14	15	24
M20 × 1.5	Ex-VIGM20	5-14	15	24
M25 × 1.5	Ex-VIGM25	5-17	15	30
M32 × 1.5	Ex-VIGM32	8-24	17	38
M40 × 1.5	Ex-VIGM40	10-30	17	45
M50 × 1.5	Ex-VIGM50	12-36	20	55
M63 × 1.5	Ex-VIGM63	18-46	20	68
M75 × 2.0	Ex-VIGM75	20-60	22	80
M88 × 2.0	Ex-VIGM88	22-72	22	96
M110 × 2.0	Ex-VIGM110	30-90	22	125

NPT Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
NPT 3/8	Ex-VIGNPT3/8	8-14	15	24
NPT 1/2	Ex-VIGNPT1/2	5-14	15	24
NPT 3/4	Ex-VIGNPT3/4	5-17	15	30
NPT 1	Ex-VIGNPT1	8-24	17	38
NPT 1-1/4	Ex-VIGNPT1-1/4	10-30	17	45
NPT 1 1/2	Ex-VIGNPT1-1/2	12-36	20	55
NPT 2	Ex-VIGNPT2	18-46	20	68
NPT 2-1/2	Ex-VIGNPT2-1/2	20-60	22	80
NPT 3	Ex-VIGNPT3	22-72	22	96
NPT 4	Ex-VIGNPT4	30-90	22	125

G Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
G 3/8	Ex-VIGG3/8	8-14	15	24
G 1/2	Ex-VIGG1/2	5-14	15	24
G 3/4	Ex-VIGG3/4	5-17	15	30
G 1	Ex-VIGG1	8-24	17	38
G 1-1/4	Ex-VIGG1-1/4	10-30	17	45
G 1-1/2	Ex-VIGG1-1/2	12-36	20	55
G 2	Ex-VIGG2	18-46	20	68
G 2-1/2	Ex-VIGG2-1/2	20-60	22	80
G 3	Ex-VIGG3	22-72	22	96
G 4	Ex-VIGG4	30-90	22	125
