Ex e Increased Safety Cable Gland for Non-Armoured Cable

Ex e Increased Safety Cable Gland for Non-Armoured Cable

Nuestra Ex e Increased Safety Cable Gland provides a certified secure connection for non-armoured cables in Zone 1 & 2 hazardous areas. This IP68 fitting ensures a robust seal and reliable performance.

Parámetros técnicos

Tipo de producto: Ex e Increased Safety Cable Gland
Model: BDM Ex-B
Material del cuerpo: Nickel-Plated Brass / Stainless Steel
Seal Material: NBR, PTFE, or Silicone
Explosion-Proof Class: Ex eb IIC Gb; Ex tb IIIC Db
Ingress Protection: IP68
Operating Temperature: -40°C to +100°C
Applicable Cable: Non-Armoured Cables
Suitable Zones: Gas: Zone 1 & 2; Dust: Zone 20, 21, & 22
Gas Groups: IIA, IIB, IIC

Key Features

Ex e Certified Protection: Certified Increased Safety (Ex eb) and Dust Protection (Ex tb), making it suitable for Zone 1, 2 (Gas) and Zone 20, 21, 22 (Dust) hazardous locations.
For Non-Armoured Cables: Specifically designed to provide a secure clamping and sealing solution for all types of unarmoured electrical cables.
High-Quality Materials: Available in robust Nickel-Plated Brass or corrosion-resistant Stainless Steel to withstand harsh industrial environments.
IP68 Certified Seal: Provides a high level of protection against dust and water ingress, ensuring the integrity of the cable termination.
Versatile Seal Options: Available with Nitrile (NBR), PTFE, or Silicone seals to meet various temperature and chemical resistance requirements.
Broad Gas Group Compatibility: Suitable for use in IIA, IIB, and the most severe IIC explosive gas environments.

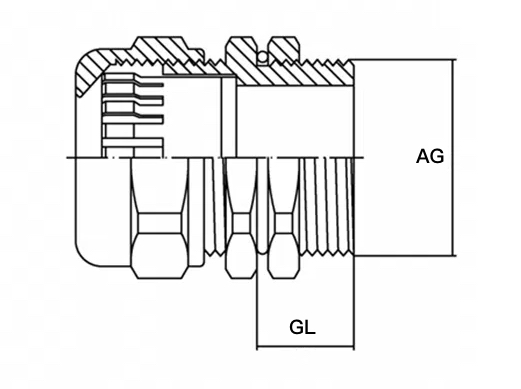

Metric Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
M10 × 1.5	Ex-BM10-6.2	3-6.2	12	14/14
M12 × 1.5	Ex-BM12-6.2	3-6.2	12	14/14
M12 × 1.5	Ex-BM12-8	4-8	12	18/18
M14 × 1.5	Ex-BM14-8	4-8	12	18/18
M16 × 1.5	Ex-BM16-8	4-8	12	18/18
M16 × 1.5	Ex-BM16-10	5-10	12	22/22
M18 × 1.5	Ex-BM18-10	5-10	12	22/22
M20 × 1.5	Ex-BM20-10	5-10	12	22/24
	Ex-BM20-12	8-12	12	24/24
	Ex-BM20-14	10-14	12	26/26
M22 × 1.5	Ex-BM22-14	10-14	12	26/26
M24 × 1.5	Ex-BM24-14	10-14	12	26/26
M25 × 1.5	Ex-BM25-12	8-12	12	24/30
	Ex-BM25-14	10-14	12	26/30
	Ex-BM25-18	13-18	12	32/32
M27 × 1.5	Ex-BM27-18	13-18	12	32/32
M30 × 1.5	Ex-BM30-18	13-18	12	32/32
M32 × 1.5	Ex-BM32-25	18-25	15	40/40
M36 × 1.5	Ex-BM36-25	18-25	15	40/40
M40 × 1.5	Ex-BM40-32	25-32	15	50/50
M48 × 1.5	Ex-BM48-32	25-32	15	50/50
M50 × 1.5	Ex-BM50-39	32-39	15	60/60
M60 × 1.5	Ex-BM60-44	36-44	15	65/65
M63 × 1.5	Ex-BM63-44	36-44	15	65/68
M63 × 1.5	Ex-BM63-54	45-54	15	75/75
M64 × 2.0	Ex-BM64-54	45-54	15	75/75
M72 × 1.5	Ex-BM72-54	45-54	20	80/80
M75 × 2.0	Ex-BM75-66	55-66	20	85/90
M78 × 2.0	Ex-BM78-66	55-66	20	90/90
M80 × 2.0	Ex-BM80-66	55-66	20	90/90
M88 × 2.0	Ex-BM88-77	67-77	20	100/100
M90 × 2.0	Ex-BM90-77	67-77	20	100/100
M100 × 2.0	Ex-BM100-87	78-87	20	110/110
M110 × 2.0	Ex-BM110-99	88-99	20	122/122
M120 × 2.0	Ex-BM120-108	99-108	20	132/132

NPT Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
NPT 1/4	Ex-BNPT1/4-8	4-8	12	18/18
NPT 3/8	Ex-BNPT3/8-10	6-10	12	22/22
NPT 1/2S	Ex-BNPT1/2S-12	8-12	12	24/24
NPT 1/2D	Ex-BNPT1/2D-14	10-14	12	26/26
NPT 3/4	Ex-BNPT3/4-10	6-10	12	22/32
	Ex-BNPT3/4-14	10-14	12	26/32
	Ex-BNPT3/4-18	13-18	12	32/32
NPT 1	Ex-BNPT1-25	18-25	15	40/40
NPT 1-1/4	Ex-BNPT1-1/4-32	25-32	15	50/50
NPT 1-1/2	Ex-BNPT1-1/2-32	25-32	15	50/52
NPT 1-1/2	Ex-BNPT1-1/2-39	32-39	15	52/52
NPT 2S	Ex-BNPT2S-44	37-44	15	65/65
NPT 2-1/2	Ex-BNPT2-1/2-54	44-54	20	75/85
NPT 2-1/2	Ex-BNPT2-1/2-66	54-66	20	85/85
NPT 3S	Ex-BNPT3S-77	66-77	20	100/100
NPT 4S	Ex-BNPT4S-99	88-99	20	122/122

G Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
G 1/4	Ex-BG1/4-8	4-8	12	18/18
G 3/8	Ex-BG3/8-10	6-10	12	22/22
G 1/2S	Ex-BG1/2S-12	8-12	12	24/24
G 1/2D	Ex-BG1/2D-14	10-14	12	26/26
G 3/4	Ex-BG3/4-10	6-10	12	22/32
	Ex-BG3/4-14	10-14	12	26/32
	Ex-BG3/4-18	13-18	12	32/32
G 1	Ex-BG1-25	18-25	15	40/40
G 1-1/4	Ex-BG1-1/4-32	25-32	15	50/50
G 1-1/2	Ex-BG1-1/2-32	25-32	15	50/52
G 1-1/2	Ex-BG1-1/2-39	32-39	15	52/52
G 2	Ex-BG2S-44	37-44	15	65/65
G 2-1/2	Ex-BG2-1/2-54	44-54	20	75/85
G 2-1/2	Ex-BG2-1/2-66	54-66	20	85/85
G 3	Ex-BG3S-77	66-77	20	100/100
G 4	Ex-BG4S-99	88-99	20	122/122
