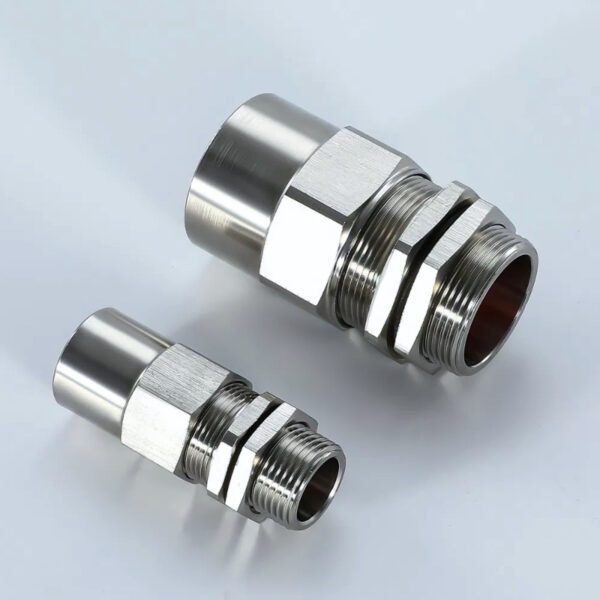

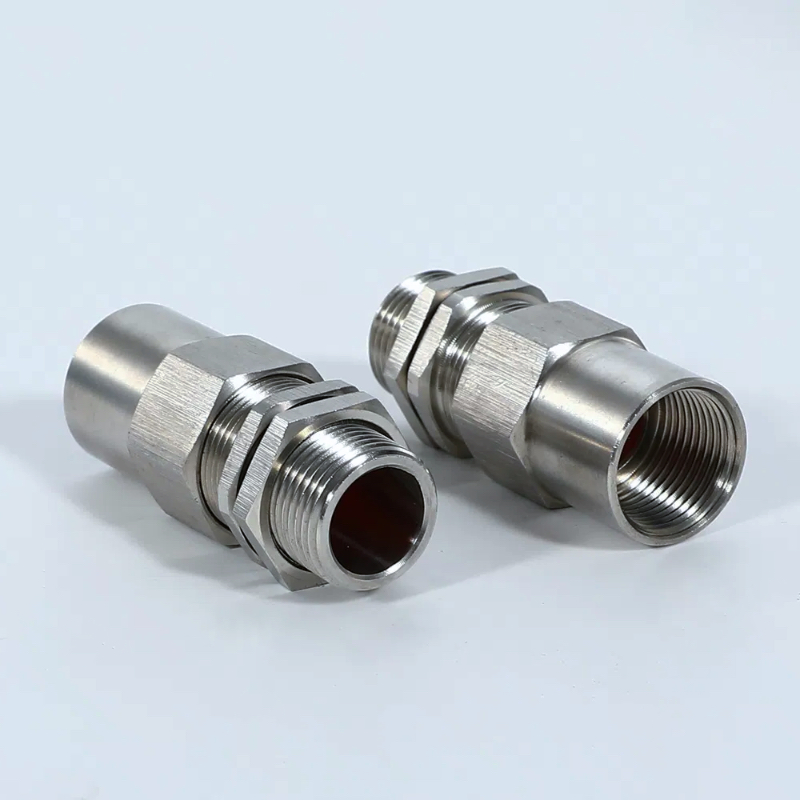

Ex-BG Explosion-Proof Clamping Gland for Hazardous Areas

Ex-BG Explosion-Proof Clamping Gland for Hazardous Areas

En Ex-BG Explosion-Proof Clamping Gland is engineered for safety in Zone 1 & 2 hazardous areas. This IP68 fitting provides a certified Ex e seal for non-armoured cables in critical applications.

Parámetros técnicos

Tipo de producto: Explosion-Proof Clamping Gland
Model: BDM-BG / Ex-BG
Material del cuerpo: Nickel-Plated Brass / Stainless Steel
Seal Material: NBR, PTFE, or Silicone
Explosion-Proof Class: Ex eb IIC Gb; Ex tb IIIC Db
Ingress Protection: IP68
Operating Temperature: -40°C to +100°C
Applicable Cable: Non-Armoured Cables
Suitable Zones: Gas: Zone 1 & 2; Dust: Zone 20, 21, & 22
Gas Groups: IIA, IIB, IIC
Compliance Standards: IEC60079, EN60079, GB3836 (Assumed, please verify)

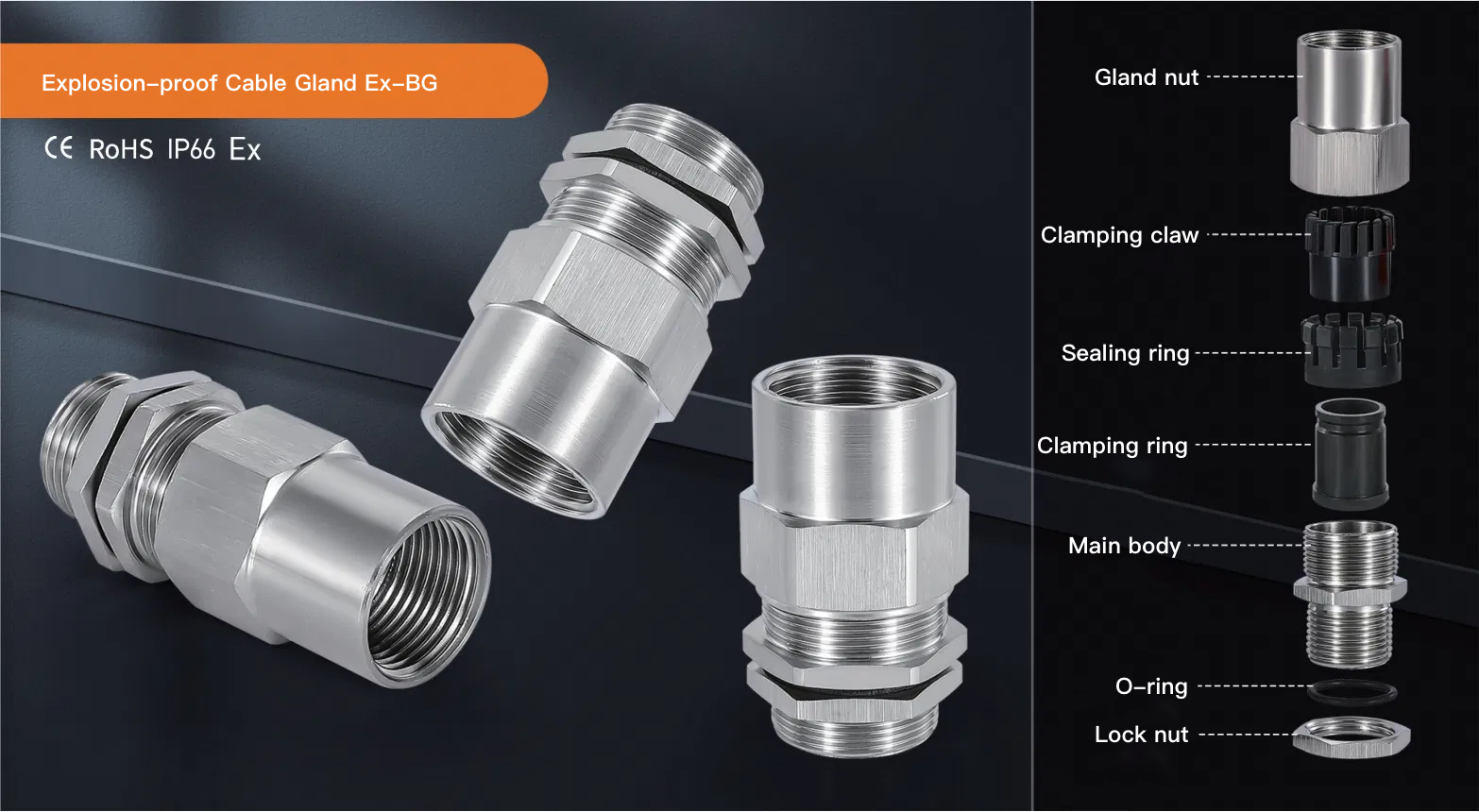

Key Features

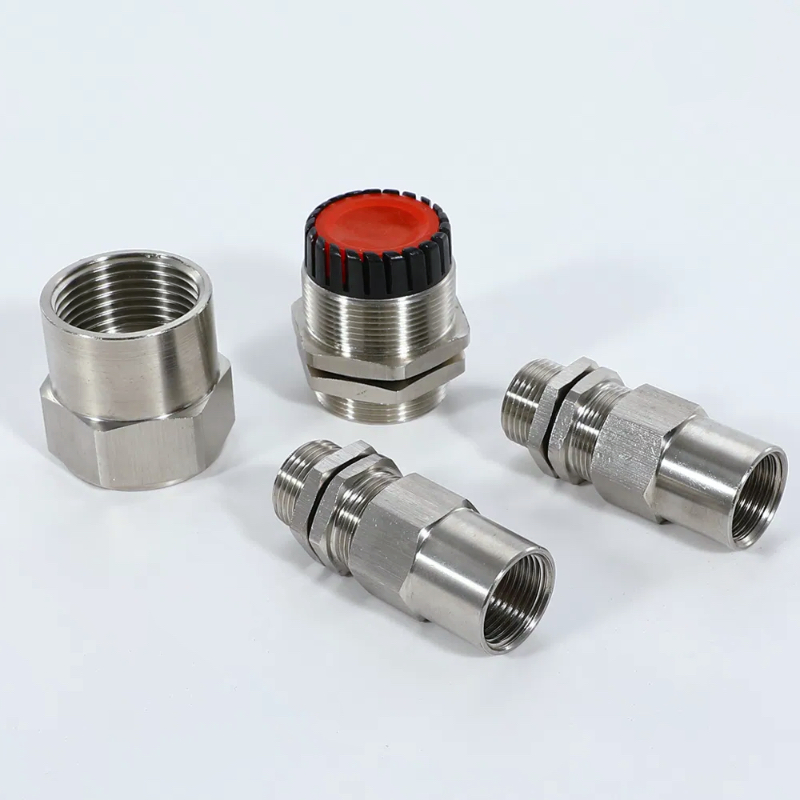

Robust Explosion-Proof Clamping: The Ex-BG’s core feature is its secure clamping mechanism, designed and certified to maintain integrity in explosive atmospheres.
Ex e Increased Safety Protection: Certified Ex eb (Gas) and Ex tb (Dust), making it suitable for Zone 1, 2 and Zone 20, 21, 22 hazardous locations.

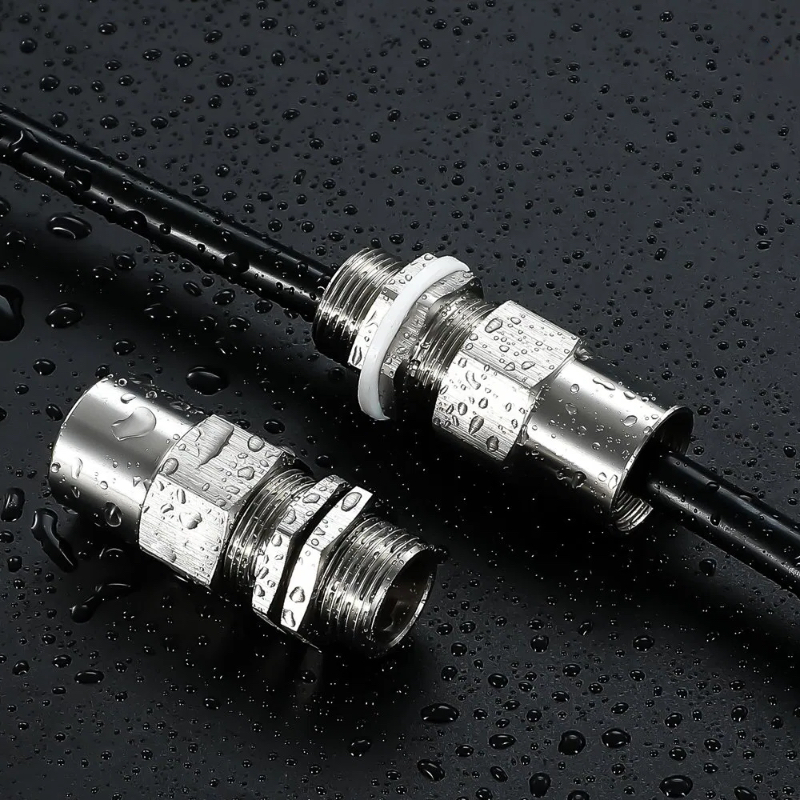

For Non-Armoured Cables: Specifically designed to provide a secure clamping and sealing solution for all types of unarmoured electrical cables.

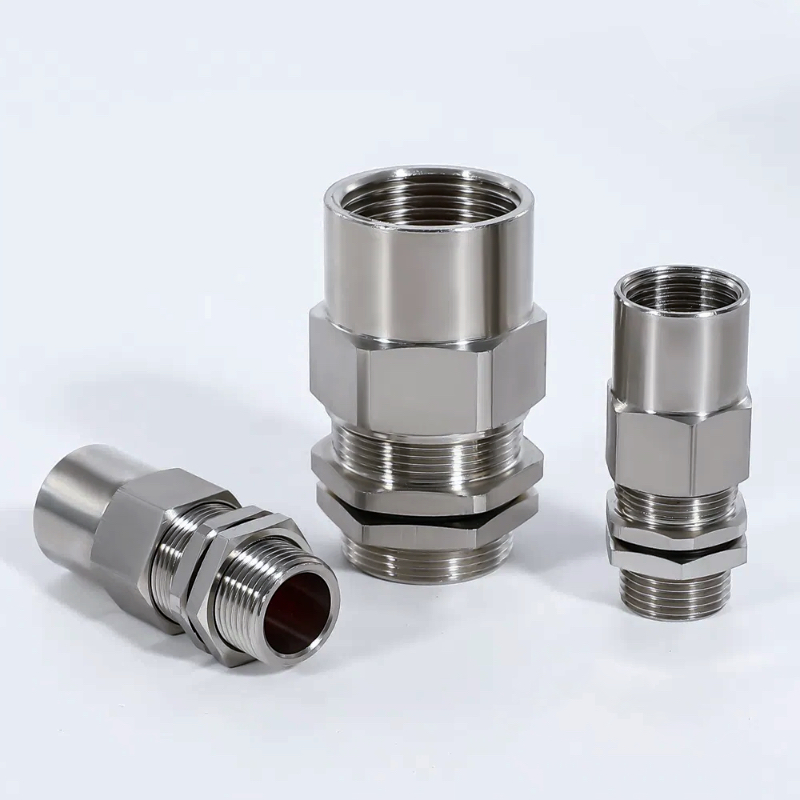

Premium Material Options: Available in robust Nickel-Plated Brass or corrosion-resistant Stainless Steel to withstand harsh industrial environments.
IP68 Certified Seal: Provides a high level of protection against dust and prolonged water immersion, ensuring the integrity of the cable termination.
Broad Gas Group Compatibility: Suitable for use in IIA, IIB, and the most severe IIC explosive gas environments.

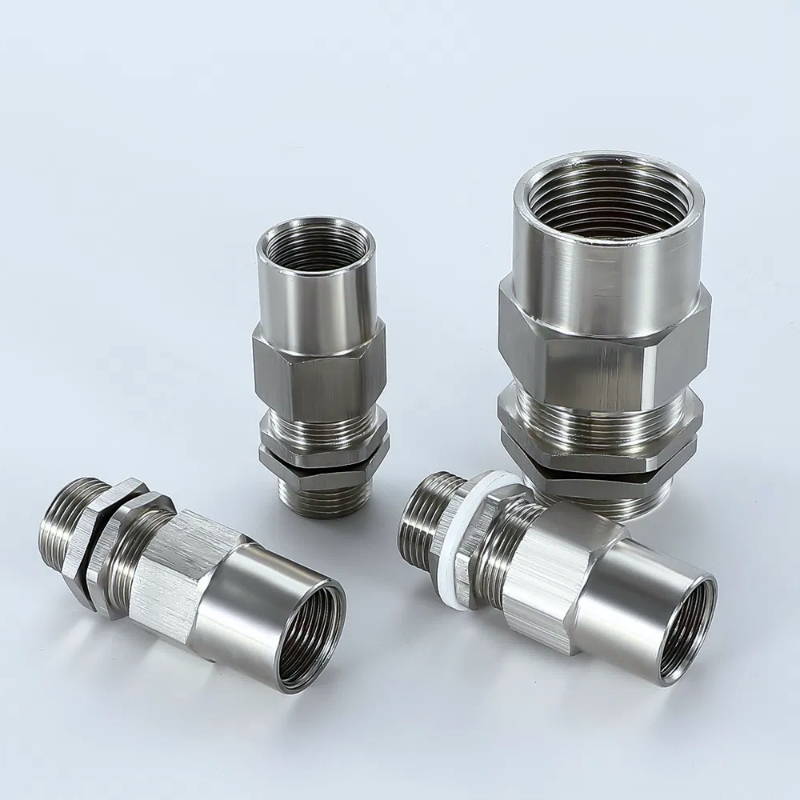

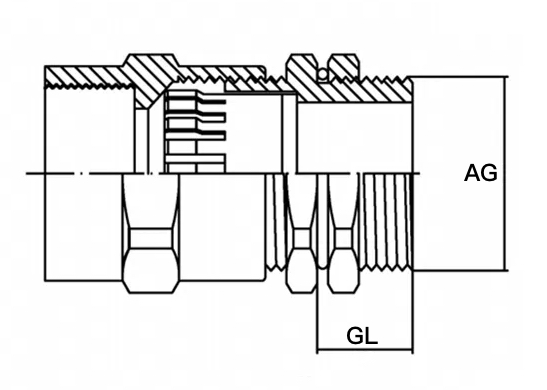

Metric Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
M12 × 1.5	Ex-BGM12-8	4-8	12	18/18
M14 × 1.5	Ex-BGM14-8	4-8	12	18/18
M16 × 1.5	Ex-BGM16-8	4-8	12	18/18
M16 × 1.5	Ex-BGM16-10	5-10	12	22/22
M18 × 1.5	Ex-BGM18-10	5-10	12	22/22
M20 × 1.5	Ex-BGM20-10	5-10	12	22/24
	Ex-BGM20-12	8-12	12	24/24
	Ex-BGM20-14	10-14	12	26/26
M22 × 1.5	Ex-BGM22-14	10-14	12	26/26
M24 × 1.5	Ex-BGM24-14	10-14	12	26/26
M25 × 1.5	Ex-BGM25-12	8-12	15	24/30
	Ex-BGM25-14	10-14	15	26/30
	Ex-BGM25-18	13-18	15	32/32
M27 × 1.5	Ex-BGM27-18	13-18	15	32/32
M30 × 1.5	Ex-BGM30-18	13-18	15	32/32
M32 × 1.5	Ex-BGM32-25	18-25	17	40/40
M36 × 1.5	Ex-BGM36-25	18-25	17	40/40
M40 × 1.5	Ex-BGM40-32	25-32	17	50/50
M48 × 1.5	Ex-BGM48-32	25-32	17	50/50
M50 × 1.5	Ex-BGM50-39	32-39	17	60/60
M60 × 1.5	Ex-BGM60-44	36-44	17	65/65
M63 × 1.5	Ex-BGM63-44	36-44	17	65/68
M63 × 1.5	Ex-BGM63-54	45-54	17	75/75
M64 × 2.0	Ex-BGM64-54	45-54	17	75/75
M72 × 1.5	Ex-BGM72-54	45-54	20	80/80
M75 × 2.0	Ex-BGM75-66	55-66	20	85/90
M78 × 2.0	Ex-BGM78-66	55-66	20	90/90
M80 × 2.0	Ex-BGM80-66	55-66	20	90/90
M88 × 2.0	Ex-BGM88-77	67-77	20	100/100
M90 × 2.0	Ex-BGM90-77	67-77	20	100/100
M100 × 2.0	Ex-BGM100-87	78-87	20	110/110
M110 × 2.0	Ex-BGM110-99	88-99	20	122/122
M120 × 2.0	Ex-BGM120-108	99-108	20	132/132

NPT Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
NPT 1/4	Ex-BGNPT1/4-8	4-8	12	18/18
NPT 3/8	Ex-BGNPT3/8-10	6-10	12	22/22
NPT 1/2-S	Ex-BGNPT1/2S-12	8-12	12	24/24
NPT 1/2-D	Ex-BGNPT1/2D-14	10-14	12	26/26
NPT 3/4	Ex-BGNPT3/4-10	6-10	15	22/32
	Ex-BGNPT3/4-14	10-14	15	26/32
	Ex-BGNPT3/4-18	13-18	15	32/32
NPT 1	Ex-BGNPT1-25	18-25	17	40/40
NPT 1-1/4	Ex-BGNPT1-1/4-32	25-32	17	50/50
NPT 1-1/2	Ex-BGNPT1-1/2-32	25-32	17	50/52
NPT 1-1/2	Ex-BGNPT1-1/2-39	32-39	17	52/52
NPT 2-S	Ex-BGNPT2S-44	37-44	17	65/65
NPT 2-1/2	Ex-BGNPT2-1/2-54	44-54	20	75/85
NPT 2-1/2	Ex-BGNPT2-1/2-66	54-66	20	85/85
NPT 3-S	Ex-BGNPT3S-77	66-77	20	100/100
NPT 4-S	Ex-BGNPT4S-99	88-99	20	122/122

G Thread	Product Number	Locking Range (mm)	Thread Length GL (mm)	Spanner Size (mm)
G 1/4	Ex-BGG1/4-8	4-8	12	18/18
G 3/8	Ex-BGG3/8-10	6-10	12	22/22
G 1/2-S	Ex-BGG1/2S-12	8-12	12	24/24
G 1/2-D	Ex-BGG1/2D-14	10-14	12	26/26
G 3/4	Ex-BGG3/4-10	6-10	15	22/32
	Ex-BGG3/4-14	10-14	15	26/32
	Ex-BGG3/4-18	13-18	15	32/32
G 1	Ex-BGG1-25	18-25	17	40/40
G 1-1/4	Ex-BGG1-1/4-32	25-32	17	50/50
G 1-1/2	Ex-BGG1-1/2-32	25-32	17	50/52
G 1-1/2	Ex-BGG1-1/2-39	32-39	17	52/52
G 2	Ex-BGG2-44	37-44	17	65/65
G 2-1/2	Ex-BGG2-1/2-54	44-54	20	75/85
G 2-1/2	Ex-BGG2-1/2-66	54-66	20	85/85
G 3	Ex-BGG3-77	66-77	20	100/100
G 4	Ex-BGG4-99	88-99	20	122/122
