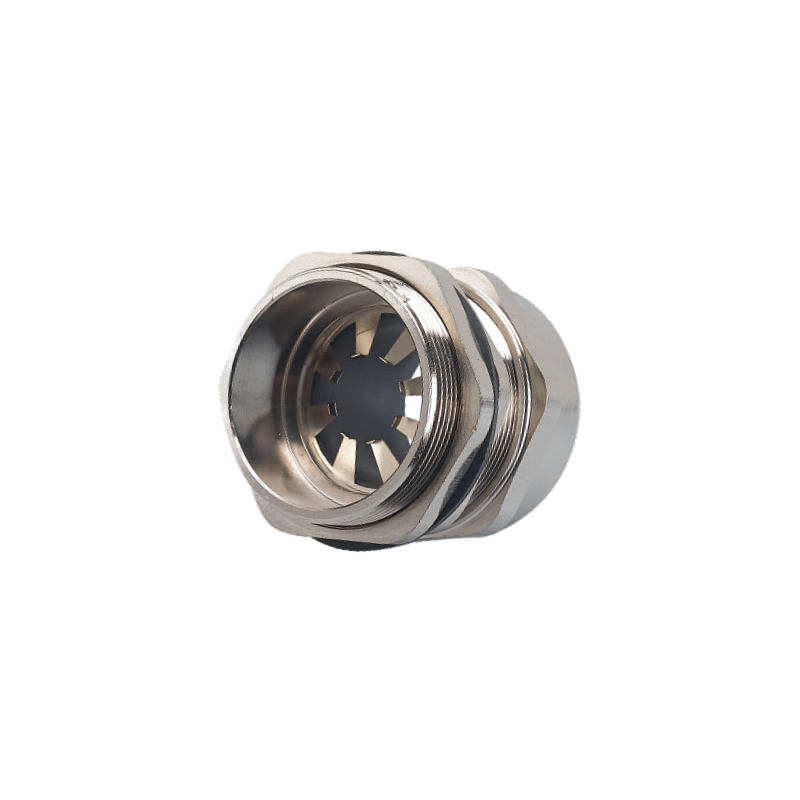

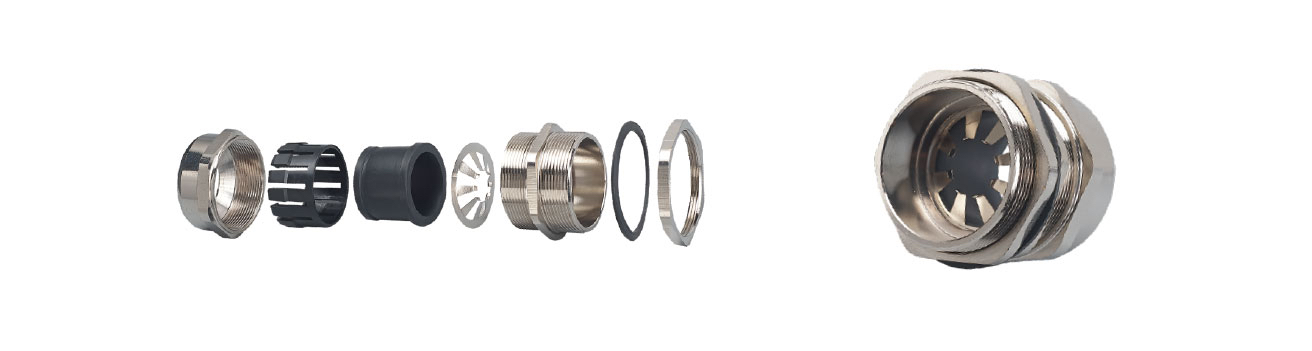

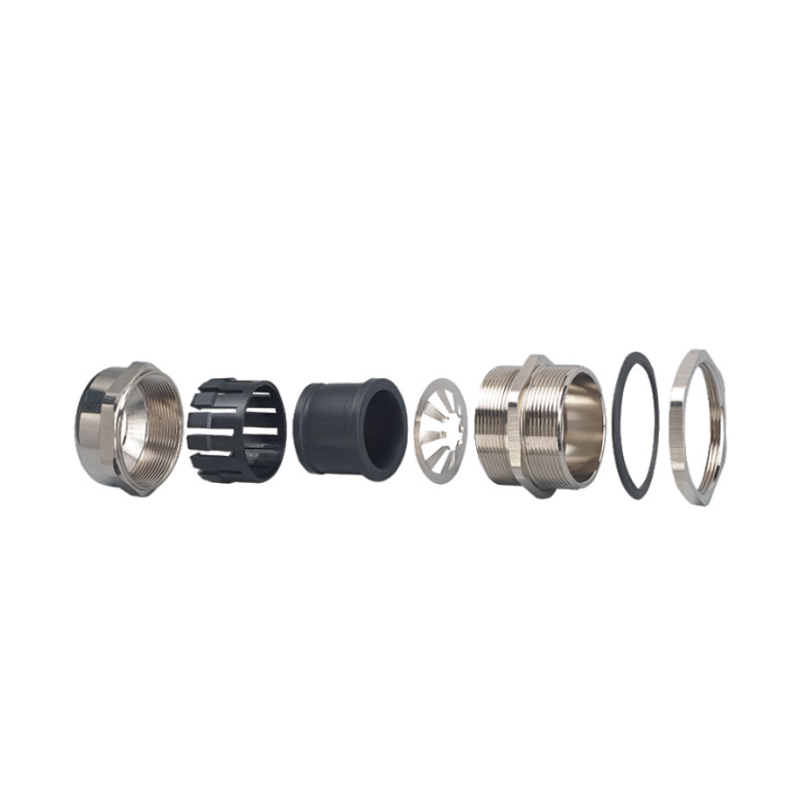

MG Series EMC Cable Gland for Industrial Automation

En MG Series EMC Cable Gland is engineered for high-performance industrial systems. It offers robust strain relief and protects against signal disruption from electromagnetic noise.

Parámetros técnicos

Tipo de producto: MG Series EMC Shielding Cable Gland
Material del cuerpo: Nickel-Plated Brass, Stainless Steel (304, 316L)
Claw: Nylon (PA66)
Seal & O-Ring: EPDM Rubber (Custom options available)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G(PF/BSP), NPT
Function: EMI/RFI Shielding, Strain Relief, Waterproof

Key Features

360° EMI Shielding: Features a special contact spring/insert that provides reliable, low-resistance 360-degree contact with the cable’s shield, effectively protecting against electromagnetic interference.
IP68-10 Bar Waterproof: Delivers the highest level of certified protection against dust and high-pressure water, ensuring connection integrity in harsh environments.
High Strain Relief: The special design of the clamping claws and seal provides exceptional gripping force, securely holding the cable against strong pulling forces.
Premium Material Options: Available in robust Nickel-Plated Brass or high-grade Stainless Steel (304/316L) for superior corrosion resistance.
Full Range of Threads: Available in Metric, PG, G(PF), and NPT threads to meet diverse international equipment requirements.
Broad Chemical Resistance: Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents.

Metric Thread E Type M Series
Código	Thread MG	(mm) Cable range	(mm) Thread O.D	(mm) Mounting hole diameter	GL(mm) Thread length GL	(mm) Spanner size
E.M12A-EMC	M 12X1.5	3-5.3	12	12-12.3	8	17/17
E.M12B-EMC	M 12X1.5	4.5-7.8	12	12-12.3	8	17/17
E.M16A-EMC	M16X1.5	4-7	16	16-16.3	9	22/22
E.M16B-EMC	M16X1.5	6-10	16	16-16.3	9	22/22
E.M20A-EMC	M20X1.5	5-8.8	20	20-20.3	9.5	24/24
E.M20B-EMC		7-12	20	20-20.3	9.5	24/24
E.M20C-EMC		9-14	20	20-20.3	9.5	26/26
E.M25A-EMC	M25X1.5	12-16	25	25-25.4	12	32/32
E.M25B-EMC	M25X1.5	14-18	25	25-25.4	12	32/32
E.M32A-EMC	M32X1.5	16-22	32	32-32.4	12.5	41/41
E.M32B-EMC	M32X1.5	18-25	32	32-32.4	12.5	41/41
E.M40A-EMC	M40X1.5	21-25	40	40-40.4	15	50/50
E.M40B-EMC	M40X1.5	24-30	40	40-40.4	15	50/50
E.M50A-EMC	M50X1.5	26-32	50	50-50.4	15	60/60
E.M50B-EMC	M50X1.5	31-41	50	50-50.4	15	60/60
E.M63A-EMC	M63X1.5	40-46	63	63-63.4	15	73/73
E.M63B-EMC	M63X1.5	44-51	63	63-63.4	15	73/73
E.M75A-EMC	M75X1.5	50-56	75	75-75.6	15	85/85
E.M75B-EMC	M75X1.5	56-66	75	75-75.6	15	85/85
E.M90A-EMC	M90X1.5	58-68	90	90-91	20	102/102
E.M90B-EMC	M90X1.5	66-77	90	90-91	20	102/102
E.M100A-EMC	M100X1.5	58-68	100	100-101	25	116/116
E.M100B-EMC	M100X1.5	66-77	100	100-101	25	116/116

Metric Thread E Type PG Series
Código	Thread MG	(mm) Cable range	(mm) Thread O.D	(mm) Mounting hole diameter	GL(mm) Thread length GL	(mm) Spanner size
E.PG7A-EMC	PG7-EMC	3-5.3	12.5	12.5-12.8	8	17/17
E.PG7B-EMC	PG7-EMC	4.5-7.8	12.5	12.5-12.5	8	17/17
E.PG9A-EMC	PG9-EMC	3-5.8	15.2	15.2-15.5	8	18/18
E.PG9B-EMC	PG9-EMC	4.5-7.8	15.2	15.2-15.5	8	18/18
E.PG11A-EMC	PG11-EMC	4-7	18.6	18.6-18.9	9	22/22
E.PG11B-EMC	PG11-EMC	6-10	18.6	18.6-18.9	9	22/22
E.PG13.5A-EMC	PG13.5-EMC	5-8.8	20.4	20.4-20.7	9.5	24/24
E.PG13.5B-EMC	PG13.5-EMC	7-12	20.4	20.4-20.7	9.5	24/24
E.PG16A-EMC	PG16-EMC	7-11	22.5	22.5-22.8	9.5	26/26
E.PG16B-EMC	PG16-EMC	9-14	22.5	22.5-22.8	9.5	26/26
E.PG21A-EMC	PG21-EMC	12-16	28.3	28.3-28.7	12	32/32
E.PG21B-EMC	PG21-EMC	14-18	28.3	28.3-28.7	12	32/32
E.PG29A-EMC	PG29-EMC	16-22	37	37-37.4	12.5	41/41
E.PG29B-EMC	PG29-EMC	18-25	37	37-37.4	12.5	41/41
E.PG36A-EMC	PG36-EMC	21-25	47	47-47.4	15	50/50
E.PG36B-EMC	PG36-EMC	24-30	47	47-47.4	15	50/50

Controlled thread E type G series, American thread E type NPT series
Código	Thread MG	(mm) Cable range	(mm) Thread O.D	(mm) Mounting hole diameter	GL(mm) Thread length GL	(mm) Spannersize
E.G1/4A-EMC	G(PF)l/4″	3-5.3	13.157	13.2-13.4	8	17/17
E.G1/4B-EMC	G(PF)l/4″	4.5-7.8	13.157	13.2-13.4	8	17/17
E.G3/8A-EMC	G(PF)3/8 “	4-7	16.662	16.7-16.9	9	22/22
E.G3/8B-EMC	G(PF)3/8 “	6-10	16.662	16.7-16.9	9	22/22
E.G1/2A-EMC	G(PF)l/2 “	7-11	20.955	21-21.2	9.5	26/26
E.G1/2B-EMC	G(PF)l/2 “	9-14	20.955	21-21.2	9.5	26/26
E.G3/4A-EMC	G(PF)3/4 “	12-16	26.441	26.5-26.8	12	32/32
E.G3/4B-EMC	G(PF)3/4 “	14-18	26.441	26.5-26.8	12	32/32
E.G1A-EMC	G(PF)1″	16-22	33.249	33.3-33.6	12.5	41/41
E.G1B-EMC	G(PF)1″	18-25	33.249	33.3-33.6	12.5	41/41
E.G11/4A-EMC	G(PF)1-1/4″	21-25	41.91	42-42.3	15	50/50
E.G11/4B-EMC	G(PF)1-1/4″	24-30	41.91	42-42.3	15	50/50
E.G11/2A-EMC	G(PF)1-1/2 “	26-32	47.803	48-48.4	15	60/60
E.G11/2B-EMC	G(PF)1-1/2 “	31-41	47.803	48-48.4	15	60/60
E.G2A-EMC	G(PF)2 “	40-46	59.614	60-60.4	15	73/73
E.G2B-EMC	G(PF)2 “	44-51	59.614	60-60.4	15	73/73
E.G21/2-EMC	G(PF)2-1/2 “	50-56	75.184	75.2-75.6	18	85/88
E.G21/2-EMC	G(PF)2-1/2 “	66-56	75.184	75.2-75.6	18	85/88
E.NPT3/8A-EMC	NPT3/8 “	4-7	17.055		13	22
E.NPT3/8B-EMC	NPT3/8 “	6-10	17.055		13	22
E.NPT1/2A-EMC	NPT1/2 “	7-11	21.223		13	26
E.NPT1/2B-EMC	NPT1/2 “	9-14	21.223		13	26
E.NPT3/4A-EMC	NPT3/4 “	12-16	26.568		14	32
E.NPT3/4B-EMC	NPT3/4 “	14-18	26.568		14	32
E.NPT1A-EMC	NPT1 “	16-22	33.227		15	41
E.NPT1B-EMC	NPT1 “	18-25	33.227		15	41
E.NPT11/4A-EMC	NPT 1-1/4 “	21-25	41.984		15	50
E.NPT11/4B-EMC	NPT 1-1/4 “	240-30	41.984		15	50
