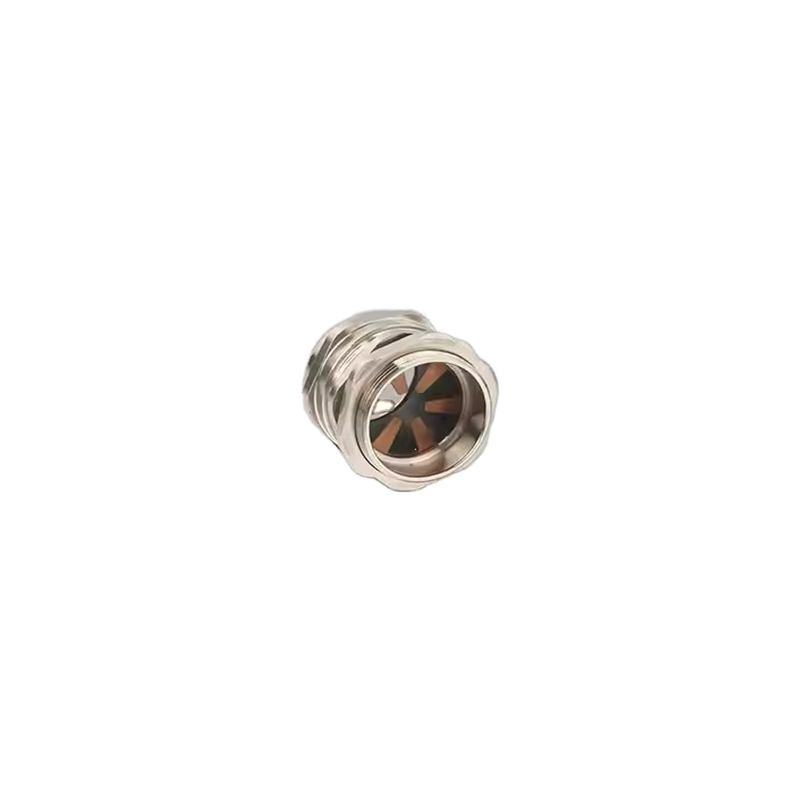

IP68 EMC Shielding Gland for Sensitive Electronics, D Series

IP68 EMC Shielding Gland for Sensitive Electronics, D Series

This IP68 EMC Shielding Gland ensures both a perfect waterproof seal and excellent EMI protection. Its high strain relief and robust metal construction make it ideal for any demanding industrial environment.

Parámetros técnicos

Product Series: D Series EMC Cable Gland
Material del cuerpo: Nickel-Plated Brass, Stainless Steel (304, 316L)
Claw: Nylon (PA)
Seal & O-Ring: NBR (Nitrile Rubber) (Custom options available)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Function: EMI/RFI Shielding, Strain Relief, Waterproof
Certifications: TUV, CE, RoHS, IP68, ISO9001

Key Features

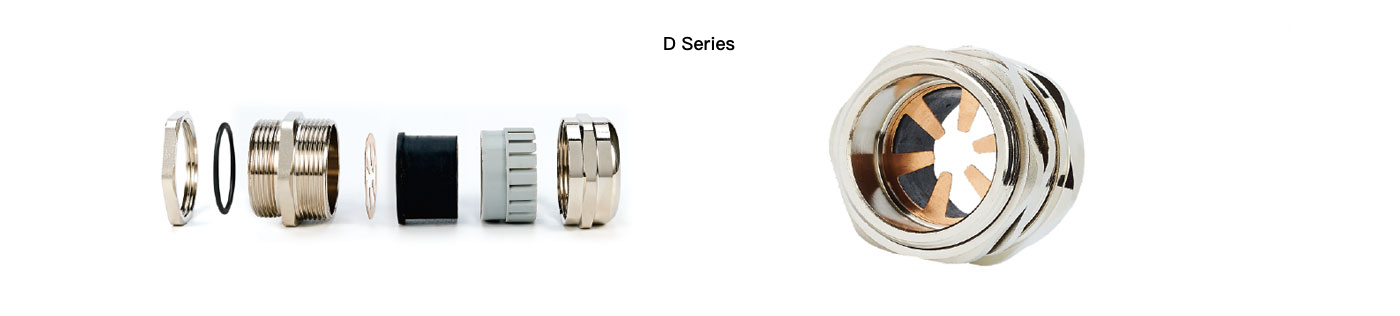

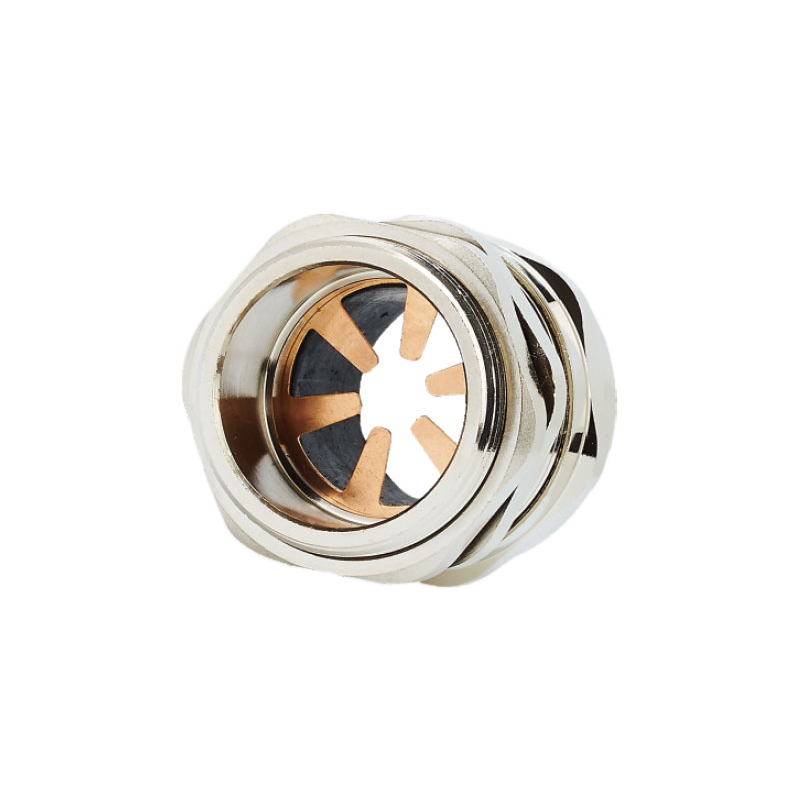

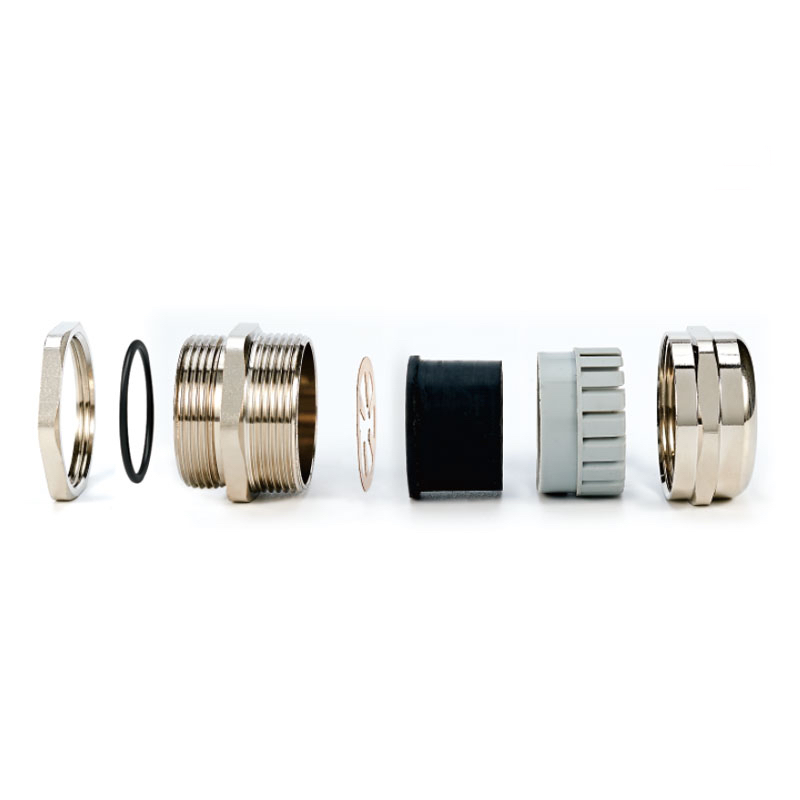

Effective EMI Shielding: Features internal brass contact chips that make a secure connection with the cable’s shield, grounding electromagnetic interference to protect signal integrity.
IP68-10 Bar Waterproof Protection: Delivers the highest level of certified protection against dust and high-pressure water, ensuring connection reliability in harsh environments.
High Strain Relief: The special design of the clamping claws and seal provides exceptional gripping force, securely holding the cable against strong pulling forces.
Premium Material Options: Available in robust Nickel-Plated Brass or high-grade Stainless Steel (304/316L) for superior corrosion and chemical resistance.
Fully Certified: Meets stringent international standards with CE, RoHS, TUV, and ISO9001 certifications for guaranteed quality and safety.
Thread Length Options: Available in standard threads for thin boards and extended threads for thick panels, with customization options.

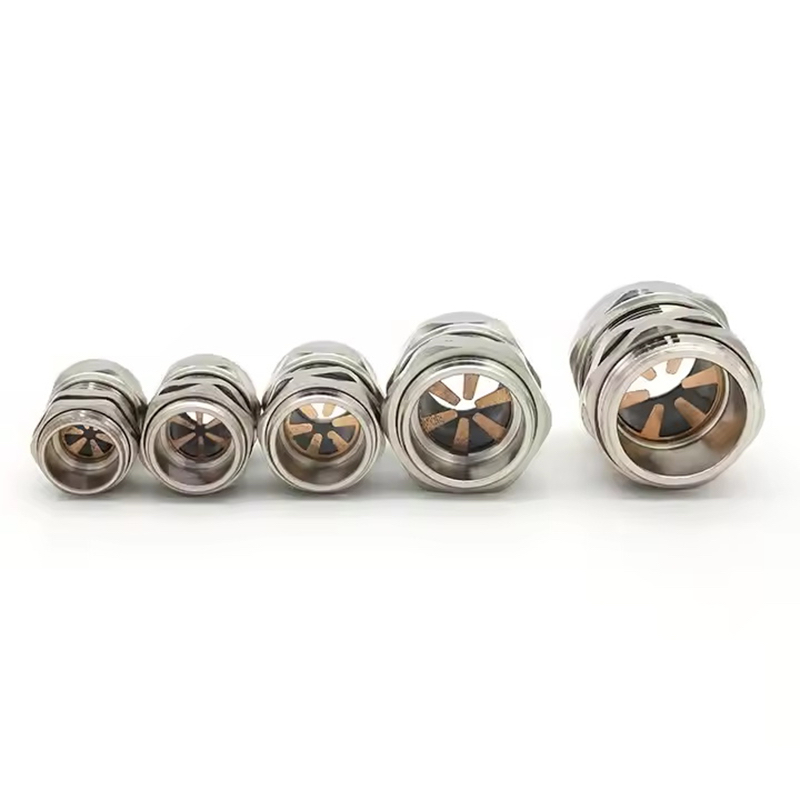

German thread D type PG series
Código	Thread	Cable range (mm)	Thread O.D. (mm)	Plate diameter (mm)	Thread length GL (mm)	Joint length H (mm)	Spanner size (mm)
D.PG7-EMC	PG7	6.5-3	12.5	12.5-12.7	7	19	14
D.PG9-EMC	PG9	8-4	15.2	15.2-15.4	8	20	17
D.PG11-EMC	PG11	10-5	18.6	18.6-18.8	8	21	20/21
D.PG13.5-EMC	PG13.5	12-6	20.4	20.4-20.6	8	22	22
D.PG16-EMC	PG16	14-10	22.5	22.5-22.7	9	23	24
D.PG19-EMC	PG19	14-10	25	25-25.2	9	25	24/27
D.PG21-EMC	PG21	18-13	28.3	28.3-28.5	9	27	30
D.PG25-EMC	PG25	22-15	32	32-32.2	10	29	35
D.PG29-EMC	PG29	25-18	37	37-37.2	10	31	40
D.PG36-EMC	PG36	33-25	47	47-47.2	11	37	50
D.PG42-EMC	PG42	38-32	54	54-54.2	13	38	57
D.PG48-EMC	PG48	44-37	59.3	59.3-59.5	14	38	64
D.PG63-EMC	PG63	52-42	72	72-72.2	15	42	78

Metric Thread D Type M Series
Código	Thread	Cable range (mm)	Thread O.D. (mm)	Plate diameter (mm)	Thread length GL (mm)	Joint length H (mm)	Spanner size (mm)
D.M12-EMC	M12*1.5	6.5-3	12	12-12.2	7	19	14
D.M14-EMC	M14*1.5	8-4	14	14-14.2	7	19	17
D.M16-EMC	M16*1.5	8-4	16	16-16.2	8	20	18
D.M18-EMC	M18*1.5	10-5	18	18-18.2	8	21	20
D.M20-EMC	M20*1.5	12-6	20	20-20.2	8	22	22
D.M22-EMC	M22*1.5	14-10	22	22-22.2	8	23	24
D.M24-EMC	M24*1.5	14-10	24	24-24.2	9	25	24/27
D.M25A-EMC	M25*1.5	14-10	25	25-25.2	9	25	24/27
D.M25B-EMC	M25*1.5	18-13	25	25-25.2	9	27	30/27
D.M27A-EMC	M27*1.5	18-13	27	27-27.2	9	27	30
D.M27B-EMC	M27*2	18-13	27	27-27.2	9	27	30
D.M28A-EMC	M28*1.5	18-13	28	28-28.2	9	27	30
D.M28B-EMC	M28*2	18-13	28	28-28.2	9	27	30
D.M30A-EMC	M30*1.5	18-13	30	30-30.2	9	29	30/32
D.M30B-EMC	M30*2	18-13	30	30-30.2	9	29	30/32
D.M32A-EMC	M32*1.5	22-15	32	32-32.2	10	29	35
D.M32B-EMC	M32*2	22-15	32	32-32.2	10	29	35
D.M33A-EMC	M33*1.5	22-15	33	33-33.2	10	29	35
D.M33B-EMC	M33*2	22-15	33	33-33.2	10	29	35
D.M36A-EMC	M36*1.5	25-18	36	36-36.2	10	31	40
D.M36B-EMC	M36*2	25-18	36	36-36.2	10	31	40
D.M37A-EMC	M37*1.5	25-18	37	37-37.2	10	31	40
D.M37B-EMC	M37*2	25-18	37	37-37.2	10	31	40
D.M40A-EMC	M40*1.5	25-18	40	40-40.2	11	31	40/45
D.M40B-EMC	M40*2	25-18	40	40-40.2	11	31	40/45
D.M40C-EMC	M40*1.5	30-22	40	40-40.2	11	35	45
D.M40D-EMC	M40*2	30-22	40	40-40.2	11	35	45
D.M42A-EMC	M42*1.5	30-22	42	42-42.2	11	35	45
D.M42B-EMC	M42*2	30-22	42	42-42.2	11	35	45
D.M47A-EMC	M47*1.5	33-25	47	47-47.2	11	37	50
D.M47B-EMC	M47*2	33-25	47	47-47.2	11	37	50
D.M48A-EMC	M48*1.5	33-25	48	48-48.2	11	37	50/52
D.M48B-EMC	M48*2	33-25	48	48-48.2	11	37	50/52
D.M50A-EMC	M50*1.5	38-32	50	50-50.2	12	37	50/55
D.M50B-EMC	M50*2	38-32	50	50-50.2	12	37	50/55
D.M54A-EMC	M54*1.5	38-32	54	54-54.2	12	38	57
D.M54B-EMC	M54*2	38-32	54	54-54.2	12	38	57
D.M56A-EMC	M56*1.5	38-32	56	56-56.2	12	38	57/59
D.M56B-EMC	M56*2	38-32	56	56-56.2	12	38	57/59
D.M60A-EMC	M60*1.5	44-37	60	60-60.2	13	38	64
D.M60B-EMC	M60*2	44-37	60	60-60.2	13	38	64
D.M63A-EMC	M63*1.5	44-37	63	63-63.2	13	38	64/68
D.M63B-EMC	M63*2	44-37	63	63-63.2	13	38	64/68
D.M64A-EMC	M64*1.5	44-37	64	64-64.2	13	38	64/68
D.M64B-EMC	M64*2	44-37	64	64-64.2	13	38	64/68
D.M72-EMC	M72*2	52-42	72	72-72.2	15	42	65/68
D.M75-EMC	M75*2	52-42	75	75-75.2	15	42	78
D.M80-EMC	M80*2	62-50	80	80-80.2	15	45	86/88
D.M88-EMC	M88*2	70-60	88	88-88.2	15	45	98
D.M100-EMC	M100*2	80-70	100	100-100.2	15	45	110

Controlled thread D type G series, American thread D type NPT series
Código	Thread	Cable range (mm)	Thread O.D. (mm)	Plate diameter (mm)	Thread length GL (mm)	Joint length H (mm)	Spanner size (mm)
D.G1/4-EMC	G1/4	6.5-3	13.1	19	7	19	14
D.G3/8-EMC	G3/8	8-4	16.6	19	8	19	18
D.G1/2-EMC	G1/2	12-6	20.9	14	8	22	22
D.G3/4-EMC	G3/4	18-13	26.4	14	9	25	30
D.G1-EMC	G1	25-18	33.2	11	11	29	40
D.G1-1/4-EMC	G1-1/4	33-25	41.9	11	13	35	50
D.G1-1/2-EMC	G1-1/2	38-32	47.8	11	14	37	57
D.G2-EMC	G2	44-37	59.6	11	14	38	64
D.G2-1/2-EMC	G2-1/2	52-42	75.1	11	15	38	77
D.G3-EMC	G3	70-65	87.8	11	15	48	94
D.NPT1/4-EMC	NPT1/4	6.5-3	13.6	18	7	19	14
D.NPT3/8-EMC	NPT3/8	8-4	17	18	8	19	18
D.NPT1/2-EMC	NPT1/2	12-6	21.2	14	8	22	22
D.NPT3/4-EMC	NPT3/4	18-13	26.5	14	9	25	30
D.NPT1-EMC	NPT1	25-18	33.2	11.5	11	29	40
D.NPT1-1/4-EMC	NPT1-1/4	33-25	41.9	11.5	13	35	50
D.NPT1-1/2-EMC	NPT1-1/2	38-32	48	11.5	14	37	57
D.NPT2-EMC	NPT2	44-37	60	11.5	14	38	64
D.NPT2-1/2-EMC	NPT2-1/2	52-42	72.6	8	15	38	78
D.NPT3-EMC	NPT3	70-65	88.6	8	15	45	98
