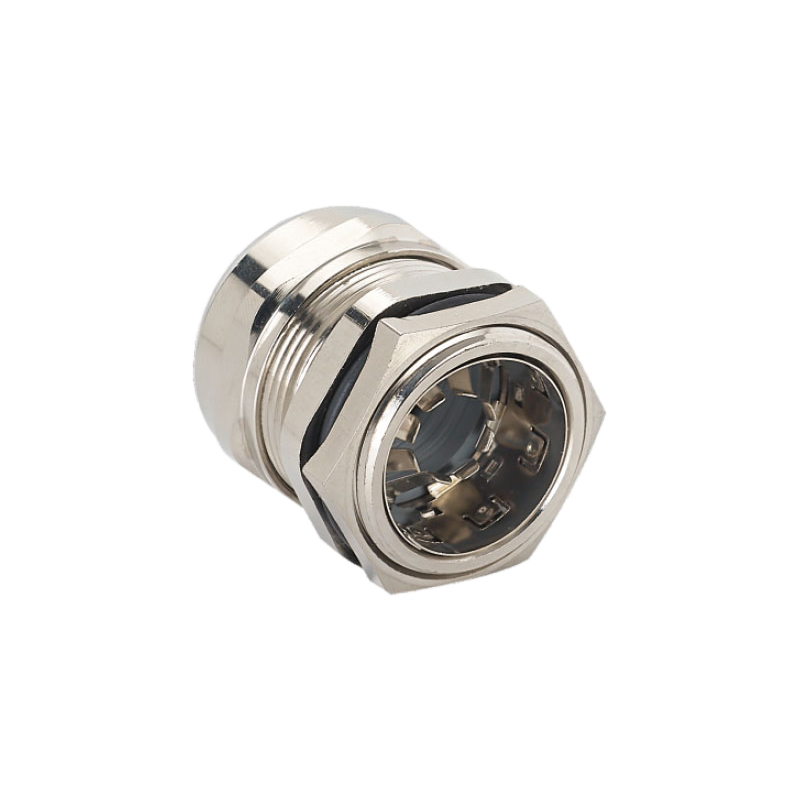

EMC Cable Gland with Contact Spring, IP68 Shielding

Nuestra EMC Cable Gland with Contact Spring provides a reliable 360° shield against electromagnetic interference. This IP68 fitting ensures easy installation and optimal EMI protection for sensitive equipment.

Parámetros técnicos

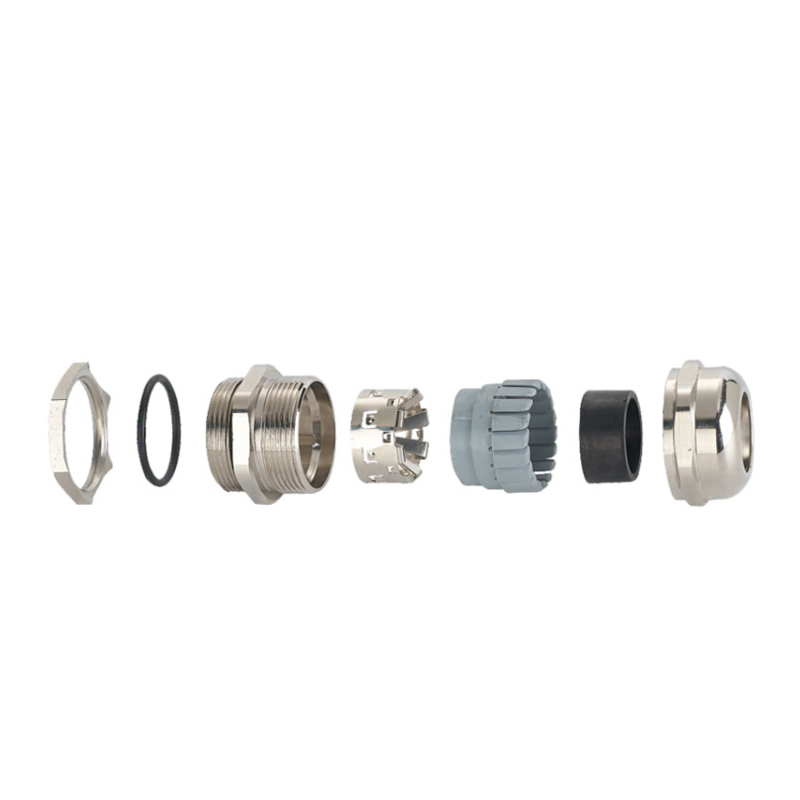

Tipo de producto: Spring-Type EMC Shielding Cable Gland
Body & Nut Material: Nickel-Plated Brass, Stainless Steel (304, 316)
Contact Spring: Highly Conductive Spring Steel / Copper Alloy
Clamping Insert: Polyamide (PA6 V2)
Seal & O-Ring: NBR (Nitrile Rubber)
Protection Rating: IP68 – 5 Bar
Operating Temperature: -40°C to +100°C (short term to +120°C)
Thread Types: Metric (EN 60423), PG
Function: 360° EMI/RFI Shielding

Key Features

360° Spring Contact Shielding: Features a highly conductive contact spring that provides constant, all-around contact with the cable’s shield, ensuring reliable and low-resistance EMC/EMI protection.
Fast & Easy Installation: The spring design simplifies the process of terminating shielded cables, significantly reducing assembly time compared to traditional EMC glands.
IP68-5 Bar Waterproof Protection: Provides a robust, certified seal against dust and water ingress, ensuring connection integrity even in demanding environments.
Premium Metal Construction: Available in robust Nickel-Plated Brass or high-grade Stainless Steel (304/316) for superior durability and corrosion resistance.
Vibration-Proof Connection: The spring mechanism maintains constant pressure on the cable shield, ensuring a stable, vibration-proof electrical contact.

Metric Thread B Type M Series
Código	Height (mm)	Thread length (mm)	Cable range (mm)	Spanner size (mm)
B.M12-EMC	20	6	3-7	16
B.M16-EMC	24	7	4-10	20
B.M20-EMC	27	9	6-13	24
B.M25-EMC	29	8	9-17	30
B.M32-EMC	33	9	11-21	36
B.M40-EMC	41	9	19-28	45
B.M5O-EMC	45	9	26-35	55
B.M63-EMC	48	14	34-45	68

German thread B type PG series
Código	Height (mm)	Thread length (mm)	Cable range (mm)	Spanner size (mm)
B.PG7-EMC	19	5	3-6.5	14
B.PG9-EMC	22	6	4-8	17
B.PG11-EMC	25	6	5-10	20
B.PG13.5-EMC	26	6.5	6-12	22
B.PG16-EMC	27	6.5	10-14	24
B.PG21-EMC	31	7	13-18	30
B.PG29-EMC	38	8	18-25	40
B.PG36-EMC	45	15	22-32	50
B.PG42-EMC	45	15	30-38	57
B.PG48-EMC	47	15	34-44	64
