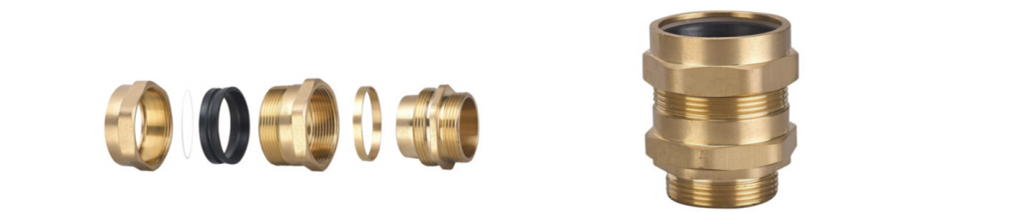

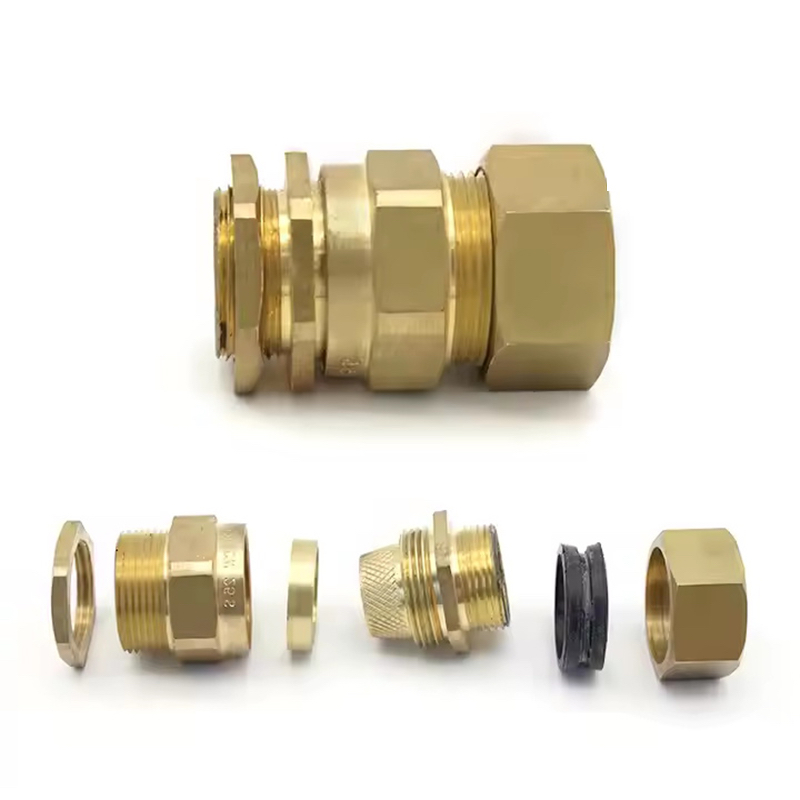

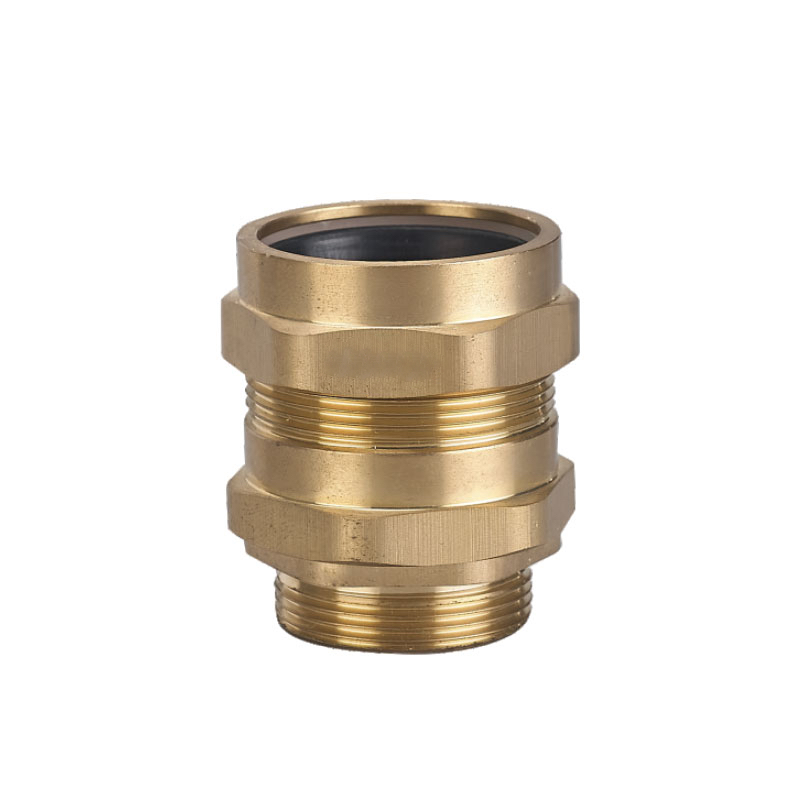

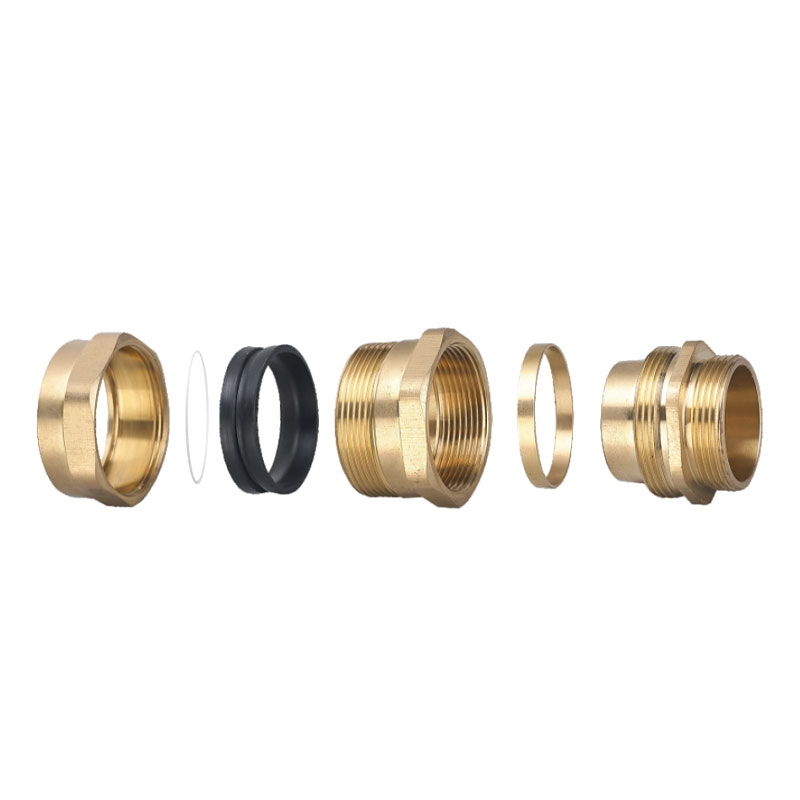

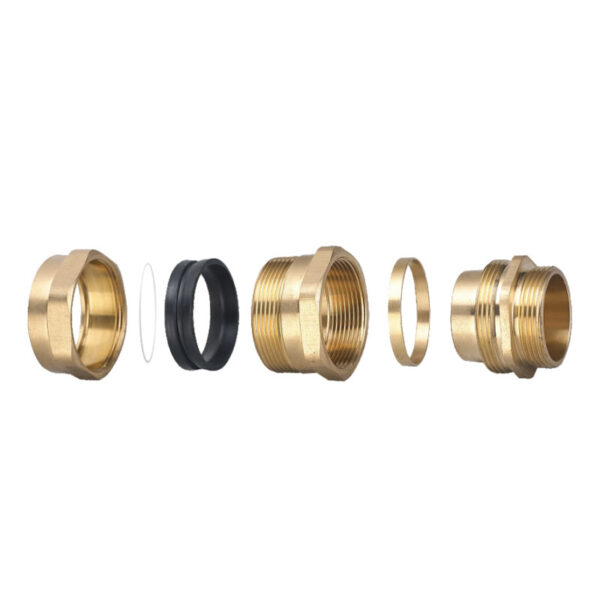

Explosion Proof CW Cable Gland for SWA, IP67/IP66

• Gland Type: CW Single Compression
• Application: Outdoor & Indoor, for all types of SWA (Steel Wire Armour) Cable in Hazardous Areas
• Standard: BS 6121
• Material: Brass (Optional Nickel Plating)
• Protection Rating: IP66 / IP67
• Explosion-Proof Certification: ATEX / IECEx (Assumed for Ex-proof claim, should be specified)
• Operating Temperature: -20°C to +80°C
• Thread Options: Metric, NPT, BSP, PG
• Accessories: Locknut, Earth Tag, PVC Shroud

Key Features

• Explosion-Proof for Hazardous Areas: Designed and certified for safe use in potentially explosive atmospheres found in oil & gas, chemical, and mining industries.
• Weatherproof Sealing: IP66/IP67 rated, providing a robust seal on the cable’s outer sheath to protect against dust and high-pressure water jets, suitable for outdoor use.
• Secure Armour Clamping: Features a specific armour clamp that provides strong mechanical retention and reliable earth continuity through the cable armour.
• BS 6121 Compliant: Manufactured to meet the stringent requirements of the BS 6121 standard, ensuring quality, safety, and performance.
• Durable Brass Construction: Made from high-quality brass (with an optional nickel-plated finish) for excellent corrosion resistance and long-term durability.
• Complete Kit Available: Can be supplied as a kit with matching accessories including locknuts, earth tags, and PVC shrouds for added protection.
