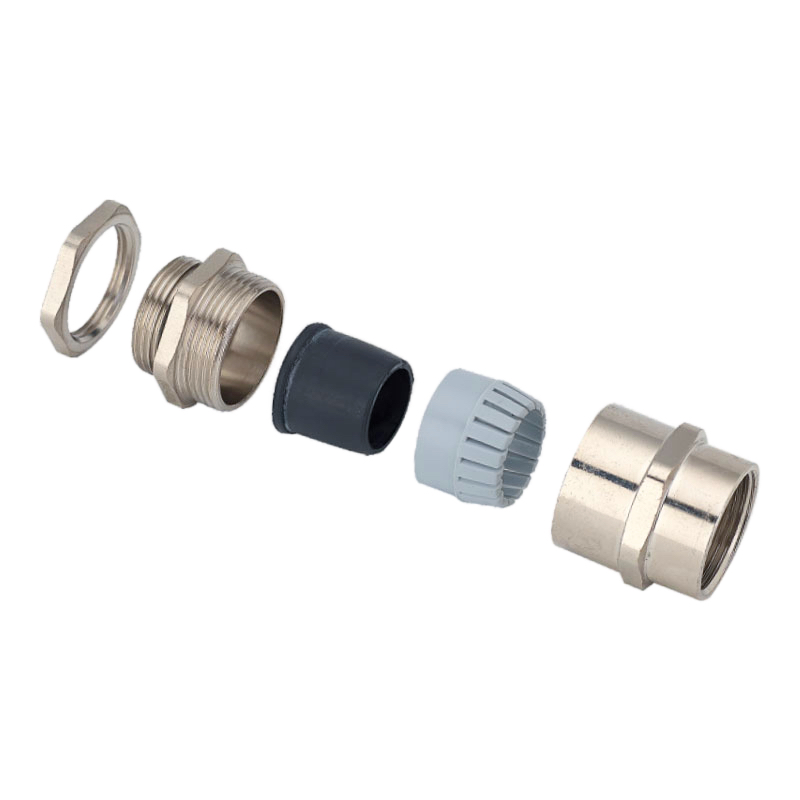

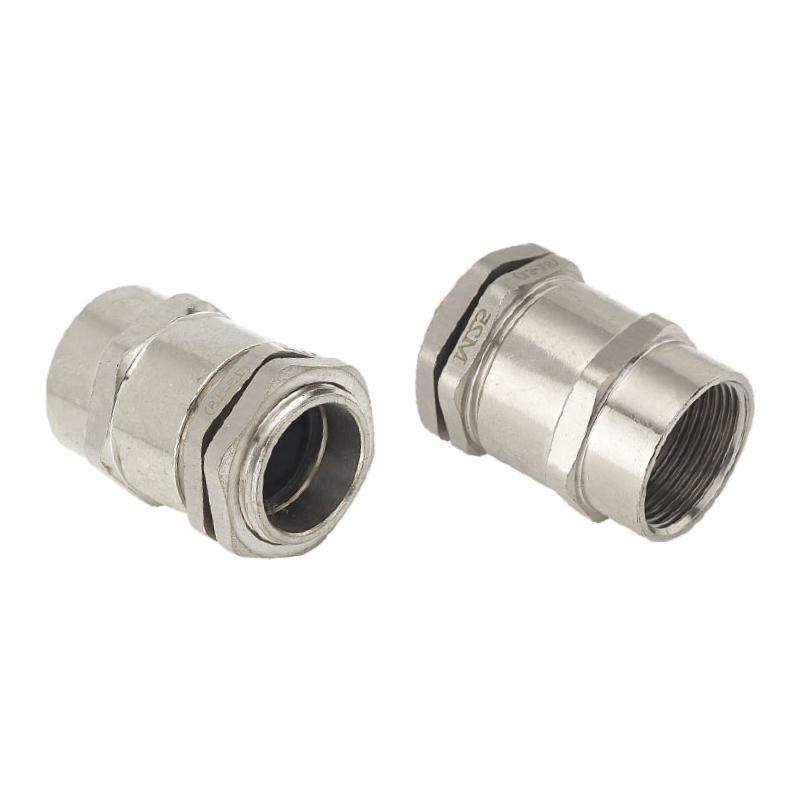

Female Thread Cable Gland for Threaded Conduits, IP68

Unser Female Thread Cable Gland provides an IP68 seal while connecting threaded conduits to an enclosure. This fitting allows for a secure, organized transition from a conduit system to a sealed cable exit.

Technische Parameter

Produkttyp: Female Thread Cable Gland / Conduit to Cable Fitting
Material des Gehäuses: Nickel-Plated Brass, Stainless Steel (304/316L)
Claw: Nylon (PA)
Seal & O-Ring: NBR
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G, NPT (Specify Male/Female as per order)
Certifications: TUV, ISO9001, CE, RoHS

Key Features

Female Threaded Entry: Uniquely designed with an internal thread to directly accept male-threaded conduits or fittings, creating a secure pipe-to-cable transition.
Robust Cable Sealing: Provides a powerful, IP68-10 Bar waterproof and dust-proof seal around the cable, with high strain relief to prevent pull-out.
Premium Material Options: Available in robust Nickel-Plated Brass or high-grade Stainless Steel (304/316L) for superior corrosion and chemical resistance.
Easy Installation: Simplifies wiring by allowing a pre-threaded conduit run to terminate directly at the cable exit point without extra couplers.
TUV & ISO Certified Quality: Manufactured under strict quality controls and certified by TUV and ISO9001, guaranteeing reliability and performance.
Customization Available: Thread types, lengths, and materials can be fully customized to meet specific project requirements.

Code	Thema specification	Available cable range (mm)	Thread O.D (mm)	Mounting Hole Diamte (mm)	Thema Length (mm)	Spanner size (mm)
M12-NW	M12×1.5	6.5-3	12	12-12.2	7	14
M14-NW	M14×1.5	8-4	14	14-14.2	7	17
M16-NW	M16×1.5	8-4	16	16-16.2	8	18
M18-NW	M18×1.5	10-5	18	18-18.2	8	20
M20-NW	M20×1.5	12-6	20	20-20.2	8	22
M22-NW	M22×1.5	14-10	22	22-22.2	8	24
M24-NW	M24×1.5	14-10	24	24-24.2	9	24/27
M25A-NW	M25×1.5	14-10	25	25-25.2	9	24/27
M25B-NW	M25×1.5	16-8	25	25-25.2	9	27
M25C-NW	M25×1.5	18-13	25	25-25.2	9	30/27
M27A-NW	M27×1.5	18-13	27	27-27.2	9	30
M27B-NW	M27×2	18-13	27	27-27.2	9	30
M28A-NW	M28×1.5	18-13	28	28-28.2	9	30
M28B-NW	M28×2	18-13	28	28-28.2	9	30
M30A-NW	M30×1.5	18-13	30	30-30.2	9	30/32
M30B-NW	M30×2	18-13	30	30-30.2	9	30/32
M32A-NW	M32×1.5	22-15	32	32-32.2	10	35
M32B-NW	M32×1.5	20-16	32	32-32.2	10	35
M32C-NW	M32×2	22-15	32	32-32.2	10	35
M36A-NW	M36×1.5	25-18	36	36-36.2	10	40
M36B-NW	M36×2	25-18	36	36-36.2	10	40
M37A-NW	M37×1.5	25-18	37	37-37.2	10	40
M37B-NW	M37×2	25-18	37	37-37.2	10	40
M40A-NW	M40×1.5	25-18	40	40-40.2	11	40/45
M40B-NW	M40×2	25-18	40	40-40.2	11	40/45
M40C-NW	M40×1.5	30-22	40	40-40.2	11	45
M40D-NW	M40×2	30-22	40	40-40.2	11	45
M42A-NW	M42×1.5	30-22	42	42-42.2	11	45
M42B-NW	M42×2	30-22	42	42-42.2	11	45
M50A-NW	M50×1.5	38-32	50	50-50.2	12	57/55
M50B-NW	M50×2	38-32	50	50-50.2	12	57/55
M60A-NW	M60×1.5	44-37	60	60-60.2	13	64
M60B-NW	M60×2	44-37	60	60-60.2	13	64
M63A-NW	M63×1.5	44-37	63	63-63.2	13	64/68
M63B-NW	M63×2	44-37	63	63-63.2	13	64/68
M72-NW	M72×2	52-42	72	72-72.2	15	78
M75-NW	M75×2	52-42	75	75-75.2	15	78
M80-NW	M80×2	62-50	80	80-80.2	18	86/88
M88-NW	M88×2	70-60	88	88-88.2	18	98
M100-NW	M100×2	80-70	100	100-100.2	20	110
