Preventing Thread Galling in Brass Cable Gland Installation

Introduction

Have you ever tightened a brass cable gland only to feel it suddenly seize mid-installation? That sickening grinding sensation followed by a stuck gland that won’t budge forward or backward? You’ve just experienced thread galling—one of the most frustrating and costly problems in cable gland installation.

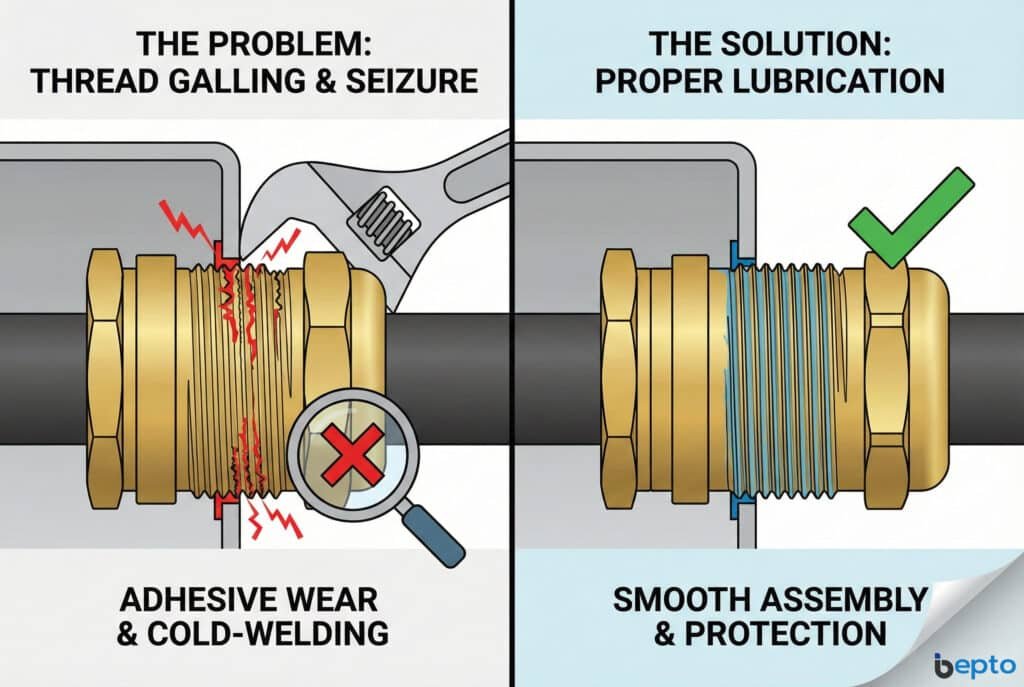

Thread galling is a form of adhesive wear¹ where metal surfaces cold-weld together under pressure and friction during installation, causing brass cable gland threads to seize, strip, or permanently damage both the gland and the enclosure—but it’s completely preventable with proper techniques and materials.

I’m Samuel, Sales Director at Bepto Connector, and over the past decade, I’ve helped countless installation teams recover from galling incidents that cost thousands in damaged equipment and project delays. Whether you’re installing a single gland or outfitting an entire industrial facility, understanding why galling occurs and how to prevent it will save you time, money, and significant frustration. Let me share the practical solutions that work.

Table of Contents

• What Is Thread Galling and Why Does It Happen in Brass Glands?
• How Does Thread Galling Damage Cable Glands and Enclosures?
• What Are the Most Effective Prevention Methods for Thread Galling?
• How to Recover from a Galled Thread Situation?

What Is Thread Galling and Why Does It Happen in Brass Glands?

Thread galling, also called cold welding or seizure, occurs when microscopic high points on mating thread surfaces adhere to each other under pressure, creating progressive damage that eventually locks the threads together.

Unlike stripping (where threads shear off) or cross-threading (where threads misalign), galling is an adhesive wear process. As you rotate the gland, friction generates localized heat at thread contact points. Combined with the compressive forces, this causes metal-to-metal bonding at the microscopic level.

The galling process progression:

1. Initial contact: Thread surfaces touch at microscopic peaks (asperities²)
2. Pressure welding: Compression forces exceed the material’s yield strength at contact points
3. Material transfer: Softer metal particles tear away and adhere to the harder surface
4. Progressive buildup: Transferred material creates larger obstructions in the thread path
5. Complete seizure: Accumulated material prevents further rotation in either direction

Why Brass Is Particularly Susceptible

Brass cable glands face higher galling risk than stainless steel or aluminum due to specific material properties:

Material characteristics of CW617N brass:

• Ductility: Brass is relatively soft (Brinell hardness³ 55-75 HB) compared to stainless steel (150-200 HB)
• Work hardening: Brass strain-hardens rapidly under friction, creating harder particles that abrade softer base metal
• Thermal conductivity: High conductivity (120 W/m·K) allows rapid heat dissipation but also rapid localized heating at friction points
• Surface finish: Machined brass typically has 1.6-3.2 Ra surface roughness—sufficient for galling initiation

Nickel plating complications:
While nickel plating (5-10 microns thick) improves corrosion resistance, it can actually increase galling susceptibility if damaged. Once the plating breaks through during installation, exposed brass underneath is more prone to adhesion with the mating nickel-plated surface.

Primary Galling Risk Factors

Installation speed: Rapid rotation generates more frictional heat than slow, controlled tightening. Installation speeds above 30 RPM significantly increase galling risk.

Thread engagement: Metric brass glands typically have 4-6 thread engagements. Insufficient engagement (less than 3 threads) concentrates forces on fewer contact points, accelerating galling.

Contamination: Dirt, metal shavings, or corrosion products in threads act as abrasive particles that accelerate material transfer.

Misalignment: Even 2-3° angular misalignment between gland and enclosure threads creates uneven pressure distribution, initiating galling at high-stress points.

Environmental conditions: Installation in dusty, humid, or salt-laden environments introduces contaminants that promote adhesive wear.

Hassan, a quality manager from a Saudi petrochemical project, contacted us after his installation team damaged 23 M32 brass glands in a single week. His electricians were using impact drivers to speed installation in 45°C ambient temperatures. The combination of high speed, heat, and no lubrication created perfect galling conditions. After implementing our prevention protocol, his galling incidents dropped to zero over the next 200+ installations.

How Does Thread Galling Damage Cable Glands and Enclosures?

Thread galling creates cascading damage that extends far beyond a single stuck gland, often requiring expensive repairs and project delays.

Immediate Physical Damage

Gland thread destruction:
When galling occurs, continued rotation attempts tear material from thread flanks, creating:

• Stripped threads that no longer provide mechanical retention
• Irregular thread profiles that prevent proper seal compression
• Compromised IP ratings due to incomplete thread engagement
• Weakened structural integrity that may fail under vibration

Enclosure thread damage:
The enclosure or panel threads often suffer worse damage than the gland because:

• Aluminum or mild steel enclosures are softer than brass glands
• Thin-wall enclosures (1.5-2mm) have less material to absorb damage
• Repaired enclosure threads may not meet original IP ratings
• Multiple galling incidents in the same hole make repair impossible

Performance and Safety Consequences

Damage Type	Immediate Impact	Long-Term Consequence	Repair Cost Factor
Partial galling (caught early)	Difficult removal, possible completion	Reduced IP rating (IP65 vs IP68), vibration loosening	1-2× (gland replacement)
Complete seizure	Gland stuck, installation halted	Enclosure thread repair or replacement required	5-10× (labor + enclosure)
Thread stripping	Gland spins freely, no retention	Complete loss of sealing and mechanical grip	8-15× (enclosure replacement)
Enclosure cracking	Visible cracks around thread area	Structural failure, water ingress, safety hazard	20-50× (panel replacement + downtime)

Hidden Costs Beyond Material Damage

Project delays: A single galling incident can halt installation for hours or days while waiting for replacement parts or enclosure repairs.

Labor multiplication: Removing a galled gland often requires 3-5× the time of normal installation, plus specialized tools and expertise.

Cascade failures: Aggressive removal attempts can damage adjacent equipment, wiring, or create safety hazards.

Inspection requirements: Once galling occurs, quality assurance may require inspection of all similar installations, multiplying labor costs.

David, a procurement manager from a UK automotive plant, initially dismissed our recommendation for thread lubricant as an unnecessary expense (£0.15 per gland). After a single galling incident damaged a custom stainless steel control panel (£2,400 replacement cost plus 3 days production delay at £15,000/day), the ROI calculation became painfully clear. His facility now mandates lubrication for every brass gland installation.

Electrical and Certification Implications

Earth bonding compromise: Galled threads with material buildup or incomplete engagement may not provide the required <0.1Ω earth continuity⁴, creating safety hazards in fault conditions.

IP rating failure: Even if the gland appears tight, damaged threads create leak paths that compromise ingress protection ratings during pressure testing.

Certification voiding: Damaged threads on ATEX or IECEx certified glands void the certification, making the installation non-compliant for hazardous area use.

Insurance implications: Installations with known thread damage may not be covered under equipment insurance policies if failures occur.

What Are the Most Effective Prevention Methods for Thread Galling?

Preventing thread galling requires a systematic approach combining proper materials, techniques, and quality control—but the solutions are straightforward and cost-effective.

Method 1: Thread Lubrication (Primary Defense)

Applying the correct lubricant is the single most effective galling prevention measure, reducing friction coefficients by 60-80%.

Recommended lubricants by application:

Anti-seize compounds (copper or nickel-based):

• Best for: Outdoor, marine, high-temperature applications
• Application: Thin coating on male threads only
• Temperature range: -40°C to +1000°C (copper), -30°C to +1400°C (nickel)
• Advantages: Long-term corrosion protection, extreme temperature stability
• Cautions: Copper-based not suitable for stainless steel contact (galvanic corrosion)

Molybdenum disulfide (MoS₂) grease:

• Best for: High-pressure applications, frequent assembly/disassembly
• Application: Light coating on both male and female threads
• Temperature range: -40°C to +400°C
• Advantages: Excellent load-bearing capacity, low friction coefficient (0.05-0.09)
• Cautions: Not suitable for oxygen-rich environments (fire hazard)

PTFE-based thread sealants:

• Best for: Chemical processing, food/pharmaceutical applications
• Application: 2-3 thread wraps from end
• Temperature range: -240°C to +260°C
• Advantages: Chemical inertness, FDA-approved options available
• Cautions: Does not provide anti-seize properties—use with additional lubricant

Petroleum jelly (temporary installations):

• Best for: Indoor, climate-controlled, short-term applications
• Application: Thin coating on male threads
• Temperature range: -10°C to +60°C
• Advantages: Readily available, low cost, easy cleanup
• Cautions: Degrades over time, not suitable for permanent installations

Method 2: Proper Installation Technique

Step-by-step galling prevention protocol:

1. Clean threads thoroughly: Remove all dirt, metal shavings, and old lubricant using a wire brush or compressed air. Contaminated threads increase galling risk by 300%.

2. Inspect thread condition: Check for existing damage, corrosion, or deformation. Never install into damaged threads—repair first.

3. Apply lubricant correctly: – Coat male threads with thin, even layer

   • Avoid excess—lubricant should not drip or pool
   • For female threads, apply sparingly to first 2-3 threads only

4. Align carefully before engagement: Ensure gland axis is perpendicular to panel surface (±2° maximum). Use alignment tools for large glands (M40+).

5. Hand-tighten first: Thread gland by hand for at least 3-4 full rotations. If resistance occurs before this, stop and check alignment.

6. Use controlled torque: Apply torque gradually using calibrated wrench. Never use impact tools or excessive force.

7. Monitor for warning signs: Stop immediately if you feel:

   • Sudden increase in resistance
   • Grinding or scraping sensation
   • Irregular rotation (binding then releasing)

Method 3: Material and Design Selection

Thread design considerations:

Thread Type	Galling Resistance	Best Application	Typical Cost Premium
Standard metric (ISO 604235)	Baseline	General industrial	Baseline
Fine pitch threads	Lower (more contact area)	Precision applications	+5-10%
Coarse pitch threads	Higher (less contact area)	Outdoor, corrosive environments	Standard
PTFE-coated threads	Excellent	Chemical, food processing	+15-25%
Dry-film lubricated	Very good	Clean room, low-maintenance	+20-30%

Surface finish improvements:

• Electropolishing: Reduces surface roughness to 0.4-0.8 Ra, decreasing galling initiation points
• Phosphate coating: Creates sacrificial layer that prevents metal-to-metal contact
• Enhanced nickel plating: Thicker plating (15-20 microns) provides better protection but requires careful installation

Method 4: Environmental Controls

Installation environment optimization:

Temperature management: Install brass glands when ambient temperature is 15-30°C. Extreme heat (>40°C) softens brass and increases galling risk; extreme cold (<0°C) makes materials brittle.

Cleanliness standards: Establish clean installation zones free from dust, metal shavings, and abrasive contaminants. Use protective caps on glands until installation.

Humidity control: High humidity (>80% RH) promotes corrosion that increases surface roughness. Store glands in climate-controlled areas.

Tool maintenance: Keep installation tools clean and properly calibrated. Worn wrenches can slip and cause sudden torque spikes that initiate galling.

How to Recover from a Galled Thread Situation?

When galling occurs despite prevention efforts, proper recovery techniques minimize damage and avoid making the situation worse.

Immediate Response Steps

1. Stop rotation immediately:
The moment you feel abnormal resistance, stop applying torque. Continued rotation exponentially increases damage.

2. Attempt reverse rotation:
Apply penetrating oil (WD-40, PB Blaster) to the thread interface. Wait 15-30 minutes, then attempt slow reverse rotation using a properly sized wrench—never pliers or pipe wrenches.

3. Apply heat (if safe):
For non-hazardous locations, apply moderate heat (60-80°C) using a heat gun to the enclosure around the gland. Thermal expansion can break the cold-weld bond. Never use open flame.

Removal Techniques by Severity

Mild galling (gland rotates with difficulty):

• Apply additional penetrating oil
• Use back-and-forth rotation (1/4 turn forward, 1/2 turn back) to gradually work the gland out
• Patience is critical—rushing causes complete seizure

Moderate galling (gland won’t rotate):

• Soak threads with penetrating oil for 2-4 hours
• Use a strap wrench on the gland body for better grip without crushing
• Apply steady, gradual force—avoid sudden jerks
• Consider ultrasonic vibration tools if available

Severe galling (complete seizure):

• Cut the gland body using a hacksaw or angle grinder (taking extreme care not to damage the enclosure)
• Remove the remaining gland portions with thread extractors
• Expect enclosure thread damage requiring repair

Thread Repair Options

Minor damage (1-2 threads affected):

• Use a thread file or chaser to clean and reform threads
• Test fit with a new gland before final installation
• May achieve IP65-IP67 rating (reduced from original IP68)

Moderate damage (3-4 threads affected):

• Install a thread repair insert (Helicoil, Time-Sert)
• Provides full strength and IP rating restoration
• Requires drilling and tapping—specialized skills needed

Severe damage (5+ threads or cracked enclosure):

• Replace the enclosure panel or section
• Most cost-effective long-term solution
• Prevents future reliability issues

Prevention checklist for future installations:

• Document the galling incident and root cause
• Implement mandatory lubrication protocols
• Train installation teams on warning signs
• Inspect tools for wear or damage
• Consider switching to pre-lubricated glands for high-volume projects

Conclusion

Thread galling in brass cable gland installation is entirely preventable through proper lubrication, controlled installation techniques, and attention to warning signs—protecting your equipment investment and avoiding costly project delays. The minimal cost of prevention (lubricant, training, proper tools) delivers returns of 100× or more compared to the expense of damaged glands, enclosures, and downtime.

At Bepto Connector, we manufacture brass cable glands with optimized thread profiles and offer pre-lubricated options for critical applications. Our technical team provides installation training, detailed torque specifications, and troubleshooting support to ensure your projects succeed the first time. Contact us today for galling prevention guidelines, recommended lubricants, and factory-direct pricing on premium brass cable glands.
