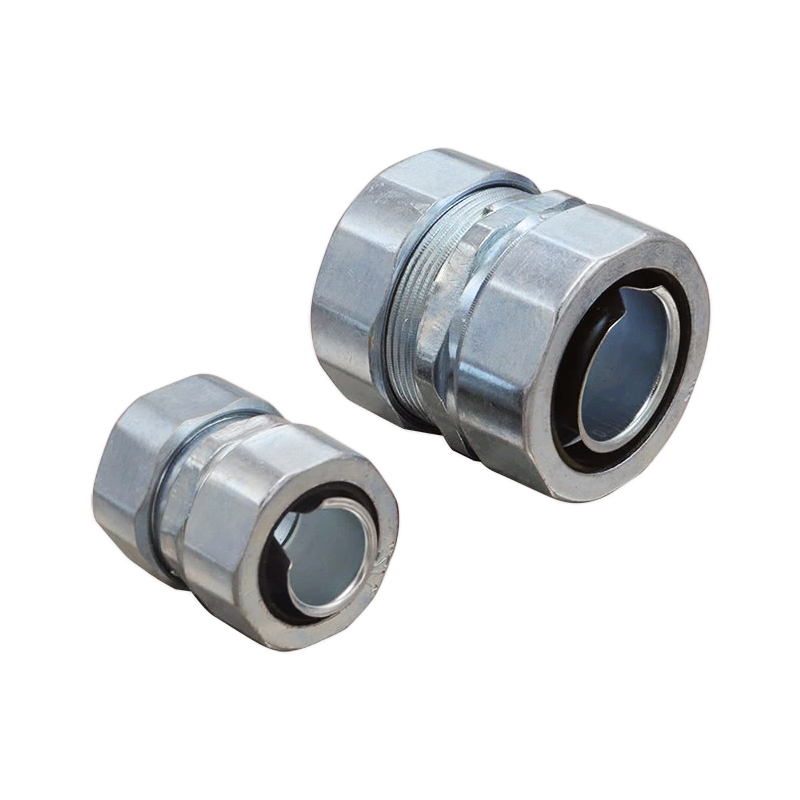

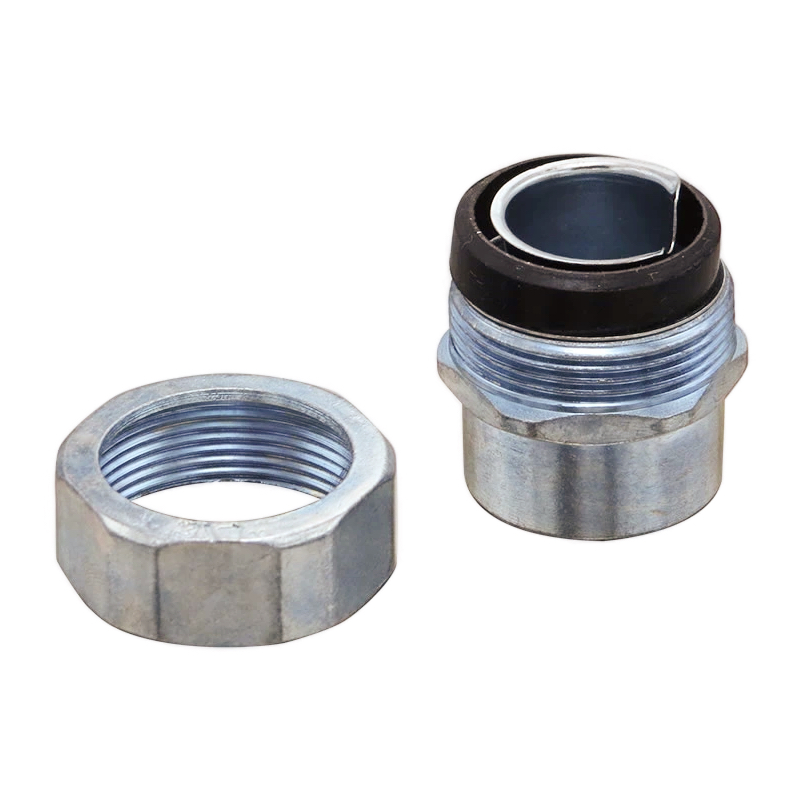

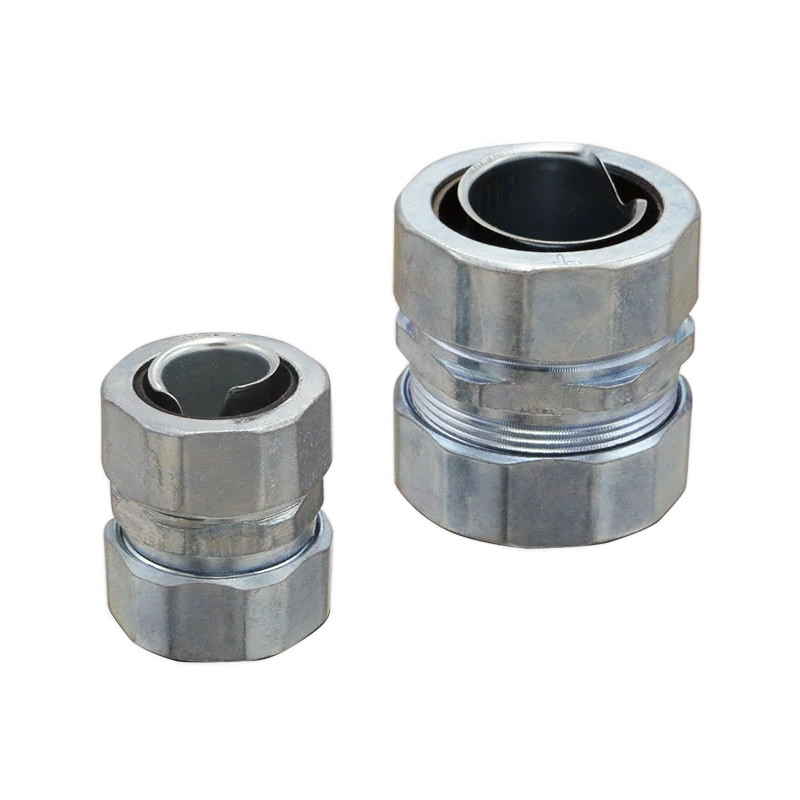

Flex to EMT Compression Connector, DGJ Zinc Die Cast Fitting

Flex to EMT Compression Connector, DGJ Zinc Die Cast Fitting

Our DGJ Flex to EMT Compression Connector provides a secure, liquid-tight seal between flexible conduit and unthreaded EMT. The dual-nut design ensures a robust, vibration-resistant connection.

المعلمة التقنية

نوع المنتج: Zinc Die Cast Flex to EMT Compression Connector
Model Series: DGJ
خامة الجسم: Zinc Alloy, Die-Cast
Ingress Protection: IP66
Operating Temperature: -40°C to +100°C
EMT Connection Type: Compression Nut with Ring
Flex Connection Type: Threaded Nut with Ferrule
Application: Connecting Flexible Metal Conduit to unthreaded EMT

Key Features

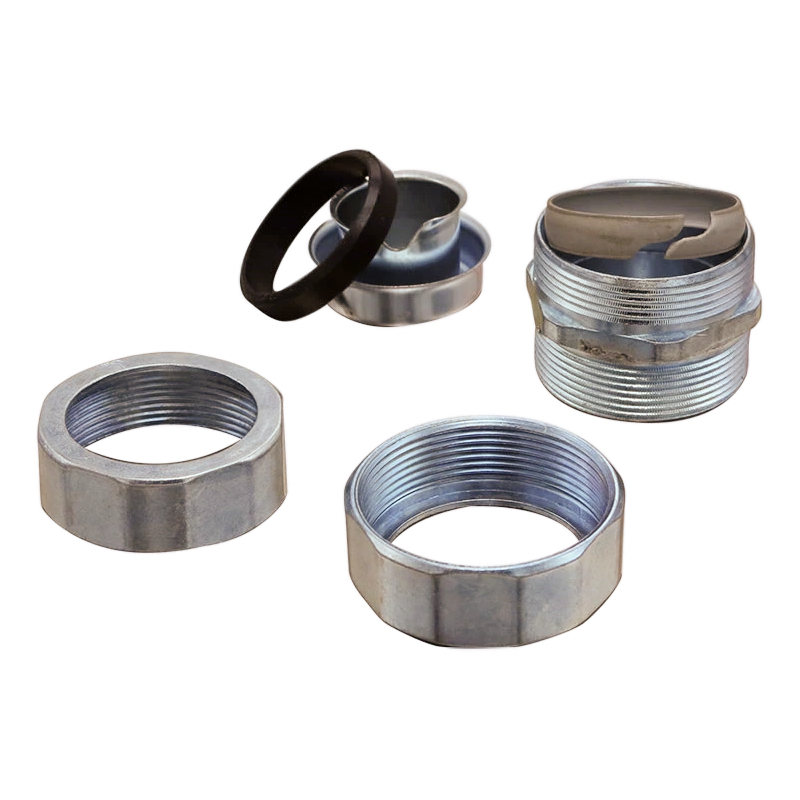

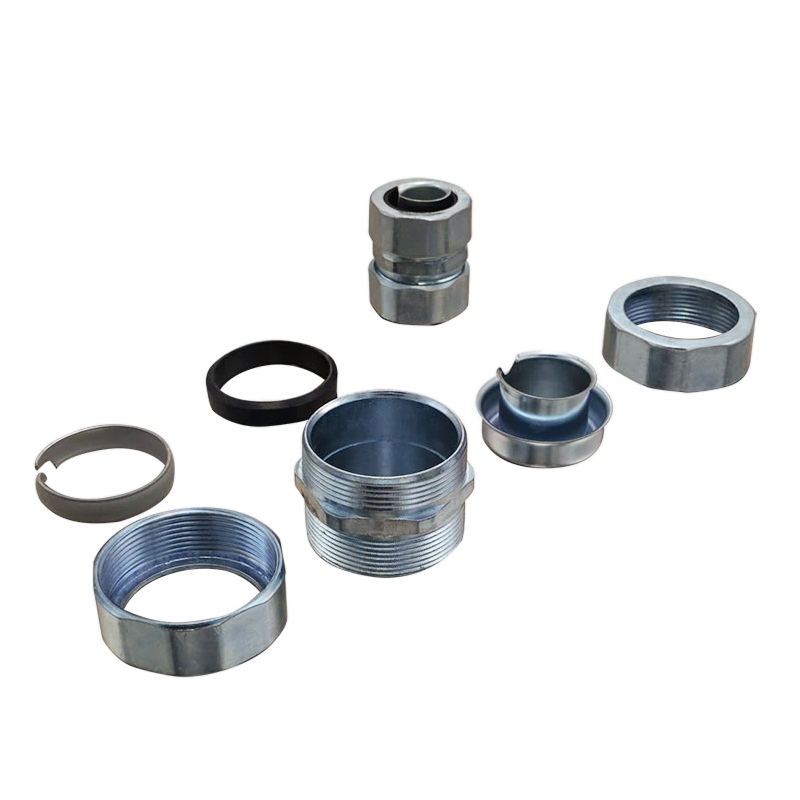

Dual Compression Nut Design: Features a dedicated compression nut and ring for the unthreaded EMT side and a separate nut with ferrule for the flexible conduit, ensuring a secure grip on both.
Connects Flex to EMT: Specifically designed to create a reliable, mechanical transition between flexible metal conduit and unthreaded Electrical Metallic Tubing (EMT).
Vibration-Resistant Connection: The compression mechanism provides a strong, 360-degree clamp that resists loosening caused by machine or environmental vibrations.
Durable Zinc Die-Cast Construction: Made from high-quality zinc alloy for excellent strength, durability, and corrosion resistance.
Liquid-Tight Performance: Engineered to provide a liquid-tight seal, protecting the wiring system from moisture, oil, and dust.

Hose المواصفات	Inch Thread	Opening holes	Metric Thread	Opening holes
Φ6	G1/4	13.3	M14*1.5	14.2
Φ8	G3/8	16.8	M16*1.5	16.2
Φ10	G3/8	16.8	M16*1.5	16.2
Φ12	G3/8	16.8	M20*1.5	20.2
Φ16	G1/2	21.2	M20*1.5	20.2
Φ20	G3/4	26.6	M25*1.5	25.2
Φ25	G1	33.5	M32*1.5	32.3
Φ32	G1-1/4	42.2	M40*1.5	40.3
Φ38	G1-1/2	48	M50*1.5	50.3
Φ51	G2	60	M60*2	60.3
Φ64	G2-1/2	75.5	M72*2	72.5
Φ75	G3	88.5	M88*2	88.5
Φ100	G4	114	M114*2	115
