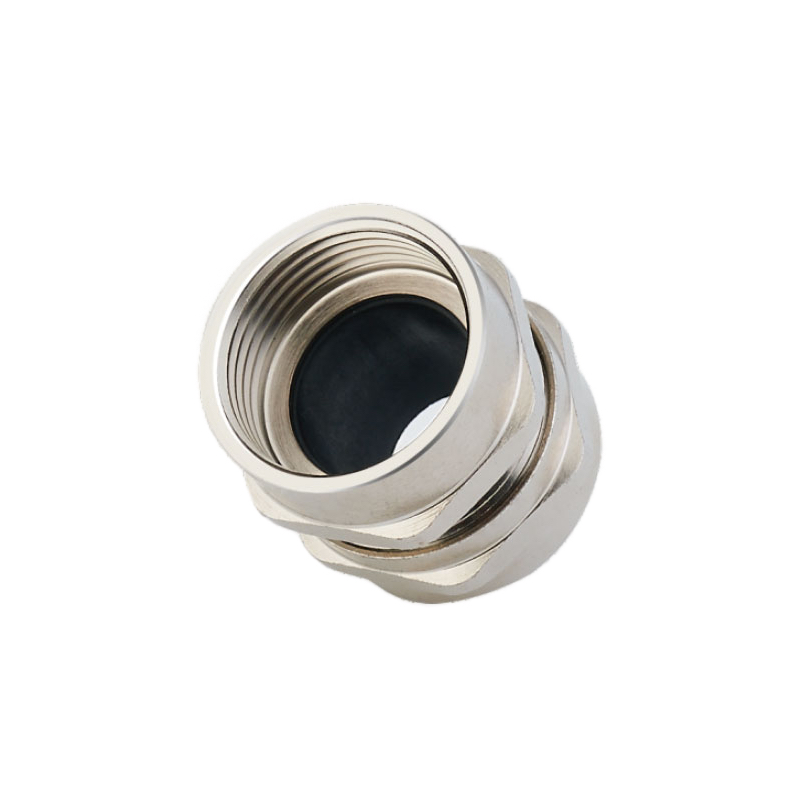

Female Thread Cable Gland, IP68 for Male Threaded Entries

لدينا Female Thread Cable Gland is designed to mount on male-threaded outlets. This IP68 fitting provides a secure, waterproof seal for cables on equipment with external threads, ensuring a reliable connection.

المعلمة التقنية

نوع المنتج: Female Thread / Internal Thread Cable Gland

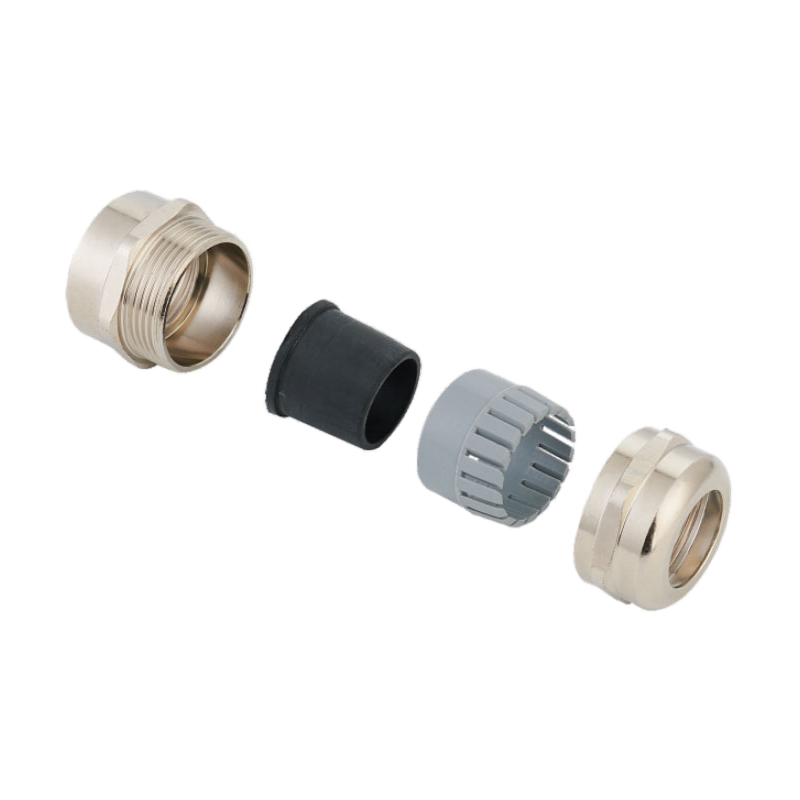

خامة الجسم: Nickel-Plated Brass, Stainless Steel (304/316L)
Claw: Nylon (PA)
Seal & O-Ring: NBR (Nitrile Rubber)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G, NPT (Internal/Female Thread)
Certifications: TUV, ISO9001, CE

Key Features

Internal (Female) Mounting Thread: Uniquely designed with an internal thread to securely mount onto equipment outlets, pipes, or ports that have an external (male) thread.
IP68-10 Bar Waterproof Protection: Delivers the highest level of certified protection against dust and high-pressure water, ensuring a completely sealed and reliable connection.
Premium Material Options: Available in robust Nickel-Plated Brass or high-grade Stainless Steel (304/316L) for superior corrosion and chemical resistance.
High Strain Relief: A special design of the clamping claws and seal provides exceptional gripping force and superior resistance to pulling and twisting.
TUV & ISO Certified Quality: Manufactured under strict quality controls and certified by TUV and ISO9001, guaranteeing reliability and performance.
Fully Customizable: Thread types, sizes, and materials can be fully customized to meet specific project requirements.

الكود	الخيط specification	Available cable range (مم)	Thread O.D (مم)	Mounting Hole Diamte (مم)	الخيط Length (mm)	Spanner size (مم)
M12-NLW	M12×1.5	6.5-3	12	12-12.2	7	14
M14-NLW	M14×1.5	8-4	14	14-14.2	7	17
M16-NLW	M16×1.5	8-4	16	16-16.2	8	18
M18-NLW	M18×1.5	10-5	18	18-18.2	8	20
M20-NLW	M20×1.5	12-6	20	20-20.2	8	22
M22-NLW	M22×1.5	14-10	22	22-22.2	8	24
M24-NLW	M24×1.5	14-10	24	24-24.2	9	24/27
M25A-NLW	M25×1.5	14-10	25	25-25.2	9	24/27
M25B-NLW	M25×1.5	16-8	25	25-25.2	9	27
M25C-NLW	M25×1.5	18-13	25	25-25.2	9	30/27
M27A-NLW	M27×1.5	18-13	27	27-27.2	9	30
M27B-NLW	M27×2	18-13	27	27-27.2	9	30
M28A-NLW	M28×1.5	18-13	28	28-28.2	9	30
M28B-NLW	M28×2	18-13	28	28-28.2	9	30
M30A-NLW	M30×1.5	18-13	30	30-30.2	9	30/32
M30B-NLW	M30×2	18-13	30	30-30.2	9	30/32
M32A-NLW	M32×1.5	22-15	32	32-32.2	10	35
M32B-NLW	M32×1.5	20-16	32	32-32.2	10	35
M32C-NLW	M32×2	22-15	32	32-32.2	10	35
M36A-NLW	M36×1.5	25-18	36	36-36.2	10	40
M36B-NLW	M36×2	25-18	36	36-36.2	10	40
M37A-NLW	M37×1.5	25-18	37	37-37.2	10	40
M37B-NLW	M37×2	25-18	37	37-37.2	10	40
M40A-NLW	M40×1.5	25-18	40	40-40.2	11	40/45
M40B-NLW	M40×2	25-18	40	40-40.2	11	40/45
M40C-NLW	M40×1.5	30-22	40	40-40.2	11	45
M40D-NLW	M40×2	30-22	40	40-40.2	11	45
M42A-NLW	M42×1.5	30-22	42	42-42.2	11	45
M42B-NLW	M42×2	30-22	42	42-42.2	11	45
M50A-NLW	M50×1.5	38-32	50	50-50.2	12	57/55
M50B-NLW	M50×2	38-32	50	50-50.2	12	57/55
M60A-NLW	M60×1.5	44-37	60	60-60.2	13	64
M60B-NLW	M60×2	44-37	60	60-60.2	13	64
M63A-NLW	M63×1.5	44-37	63	63-63.2	13	64/68
M63B-NLW	M63×2	44-37	63	63-63.2	13	64/68
M72-NLW	M72×2	52-42	72	72-72.2	15	78
M75-NLW	M75×2	52-42	75	75-75.2	15	78
M80-NLW	M80×2	62-50	80	80-80.2	18	86/88
M88-NLW	M88×2	70-60	88	88-88.2	18	98
M100-NLW	M100×2	80-70	100	100-100.2	20	110
